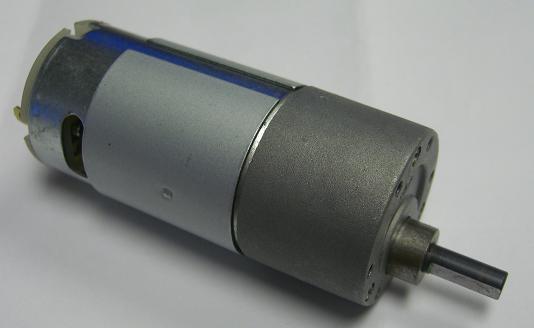

12vdc Electric gear Motor 16:1 Ratio 400RPM

      12vdc Electric gear Motor 16:1 Ratio 400RPM

      USD
      Model #GM12-37-400
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      Sorry, this product is temporarily out of stock.
      View Cart

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Looking for a powerful Gear motor? The Firgelli Gear motors have a high torque DC Motor output that run on 2-12vdc. Planetary style gear head for smooth noise free usage for long life, and great reliability. Ideal for medium to large robot projects. The shaft has a 6mm diameter and works great with our hubs or pulleys Links below. The flat on the Shaft is what you will tighten the set screw to in order to prevent the pulley or hub from rotating. Replacement motor for our Sleek Rod Tubular Actuators

      https://www.firgelliauto.com/products/micro-motor-pulley

      https://www.firgelliauto.com/search?q=hub

      Description

      This is a 12vdc Gear Motor, the same type used in actuator FA-04 Model. It provides 400RPM at 12vdc has a 16:1 gear ratio. The rotating shaft has a flat so you can attach a pulley or gear to it.

      Specifications

      • Temperature: 25° Celsius
      • Humidity: 90%
      • Motor Orientation: Horizontal
      • Rated Voltage: 12vdc
      • Voltage Operating Range: 6-12vdc
      • Rated Load at 12vdc: 1.50Kg-cm (Do not exceed rated load. Damage may occur)
      • No Load Speed at 12vdc: 400 RPM +/- 10%
      • Speed at Rated Load (1.50Kg-cm): 132 RPM +/- 10?
      • No Load Current at 12vdc: < 155mA
      • Current at Rated Load (1.50Kg-cm): < 466mA
      • Gear ratio: 16:1
      • Insulation Resistance: 10M ohm at 300vdc
      • Withstand Voltage: 300vdc for 1 Second
      • The gear motor is not intended for instant reverse
      • The gear motor does not include protection from water or dust etc

      Technical Drawings

      To view drawing click here
