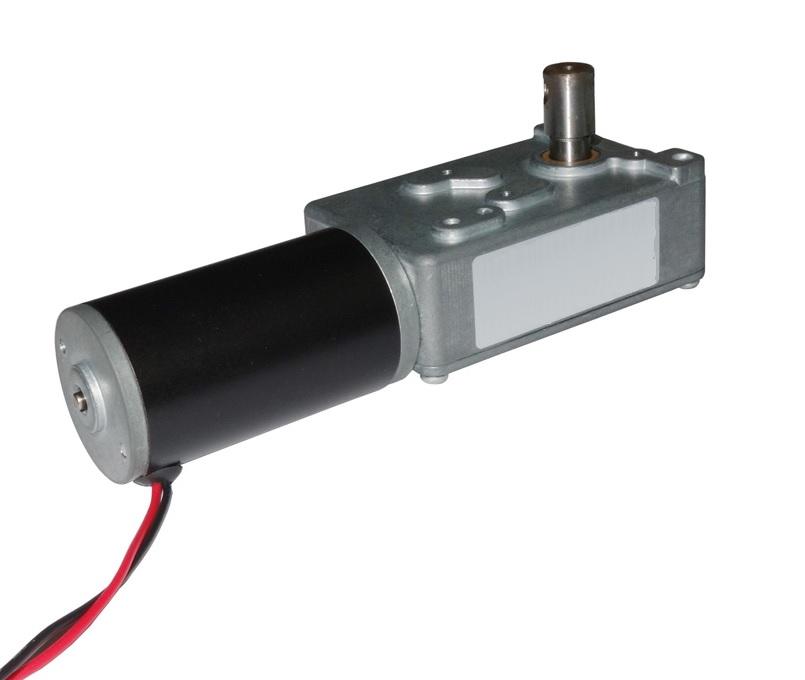

      Medium Torque Rotary Actuators offering torque range from 3-Kg.cm to 34-Kg.com of torque (298 mN.m - 3381 mN.m) Speeds from 16.4-RPM to 146-RPM. These Roary Actuators are ideal for applications that need to move something with high weight or force requirements with a good amount of speed. Add external limit switches to your application to control the end-points.

      These medium-duty high torque Rotary Actuators come in 3 model options shown below.

      Download Spec Sheets:

      Low Torque Rotary Actuator FA-GM-58-12-54

      Medium Torque Rotary Actuators FA-GM-58-12-109

      High Torque Rotary Actuators FA-GM-58-12-250

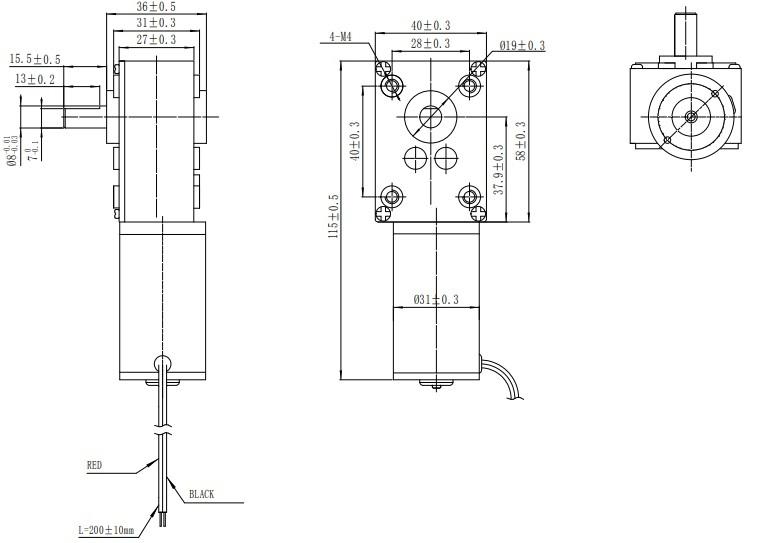

      Dimensions:

      Dimensions are the same for all 3 gear ratio Rotary Actuators.

      Rotary Actuators

      Specifications:

      Low Torque Rotary Actuator model FA-GM-58-12-54:

      SKU

      FA-GM-58-12-54

      VOLTAGE

      AMPS

      INPUT POWER

      (WATTS)

      TORQUE (KG-CM)

      RPM

      OUTPUT POWER (WATTS)

      EFFICIENCY

      NO LOAD

      12.08

      0.199

      2.399

      0.00

      146.3

      0.00

      0.00

      AT MAX EFFICIENCY

      11.99

      1.470

      17.70

      3.042

      124.7

      3.895

      22.0

      OUTPUT POWER

      11.93

      4.664

      55.66

      10.676

      70.30

      7.715

      13.9

      STALL

      11.80

      8.796

      103.8

      20.567

      0.000

      0.000

      0.00



      Medium Torque Rotary Actuator model FA-GM-58-12-109:

      SKU

      FA-GM-58-12-109

      VOLTAGE

      AMPS

      INPUT POWER

      (WATTS)

      TORQUE (KG-CM)

      RPM

      OUTPUT POWER (WATTS)

      EFFICIENCY

      NO LOAD

      12.03

      0.255

      3.072

      0.00

      74.0

      0.00

      0.00

      AT MAX EFFICIENCY

      11.99

      1.399

      16.78

      4.102

      63.0

      2.656

      15.80

      OUTPUT POWER

      11.90

      4.225

      50.29

      14.235

      36.1

      5.274

      10.50

      STALL

      11.79

      8.005

      94.36

      27.787

      0.00

      0.00

      0.00



      High Torque Rotary Actuator model FA-GM-58-12-250:

      SKU

      FA-GM-58-12-250

      VOLTAGE

      AMPS

      INPUT POWER

      (WATTS)

      TORQUE (KG-CM)

      RPM

      OUTPUT POWER (WATTS)

      EFFICIENCY

      NO LOAD

      12.00

      0.229

      2.753

      0.00

      32.8

      0.00

      0.00

      AT MAX EFFICIENCY

      11.87

      1.274

      15.24

      9.89

      28.1

      2.854

      18.7

      OUTPUT POWER

      11.55

      3.866

      45.95

      34.47

      16.4

      5.809

      12.6

      STALL

      11.04

      7.513

      88.44

      69.05

      0.00

      0.00

      0.00
