6DOF 3-Axis Digital Compass

      6DOF 3-Axis Digital Compass

      USD
      Model #
      Quantity
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Super High Precision by GY-511

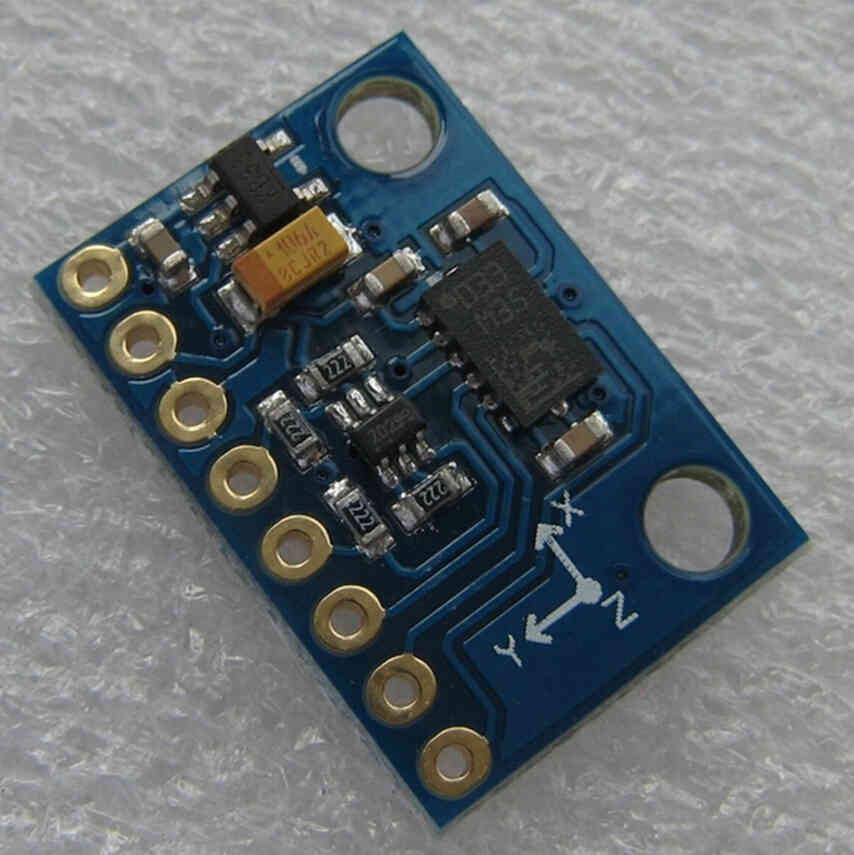

      The LSM303DLHC is a digital 3 axis accelerometer and 3 axis magnetometer with I2C interface. It has full-scale acceleration range of ±2g to ±16g and full scale magnetic field range of ±1.3 to ±8.1 Gauss. All the full scale ranges are user selectable.

      Module has on board low drop voltage regulator which takes input supply in the range of 3.6V to 6V DC. Board has two mounting holes. All 9 pins of the module are arranged in single line. LSM303DLHCs I2C serial bus interface supports standard (100 KHz) and fast mode (400 kHz).

      It is most suitable for tilt compensated compass, quad-rotor and robotics application. For LSM303DLHC application interface example available based on LPC2148 ARM7 microcontroller. LSM303DLHC has application example based on LPC2148 ARM7 micro-controller.

      Features

      Features

      • On board 3.3V Low Drop voltage regulator with input range of 3.6V to 6V.
      • Logic supply voltage range of 1.8 to 3.3V. Logic supply pin is accessible through 9 pin header
      • 2 x Mounting holes by M4
      • 3 magnetic field axis and 3 acceleration axis
      • Full scale range of ± 1.3 to ±8.1 Gauss magnetic field
      • ±2g/±4g/±8g/±16g user selectable full-scale acceleration ranges
      • 16 bit data output
      • I2C serial interface
      • Power-down mode/ low-power mode
      • 2 independent programmable interrupt generators for free-fall and motion detection
      • Embedded temperature sensor
      • 6DOF orientation detection

      Applications

      • Robotics
      • Quadrotor
      • Tilt compensated compass
      • Position detection
      • Motion-activated functions
      • Pedometer
      • Display orientation
