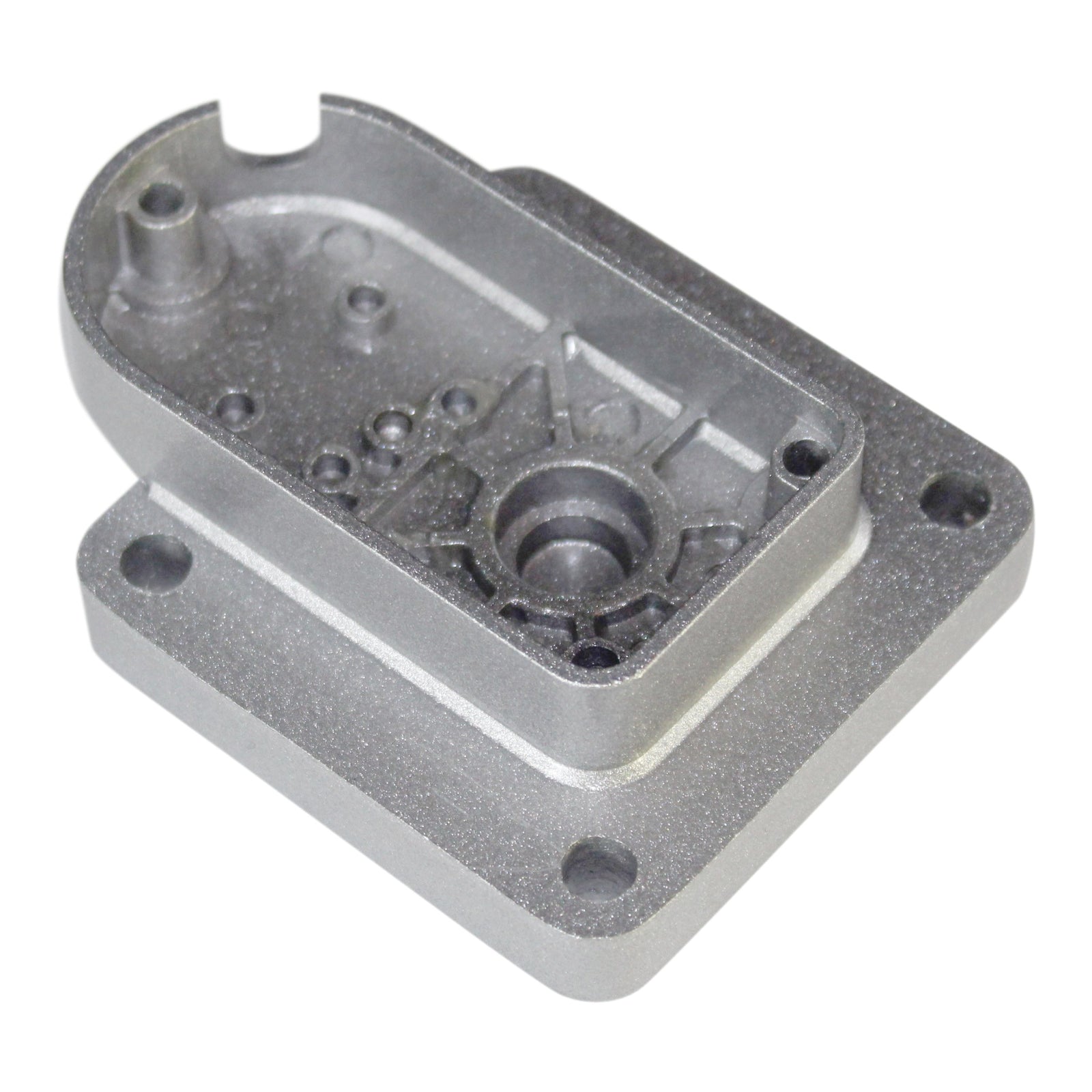

Premium Base Mounting Bracket

      Premium Base Mounting Bracket

      USD
      Model #
      Select Actuator Model
      Quantity
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.
      View Cart

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

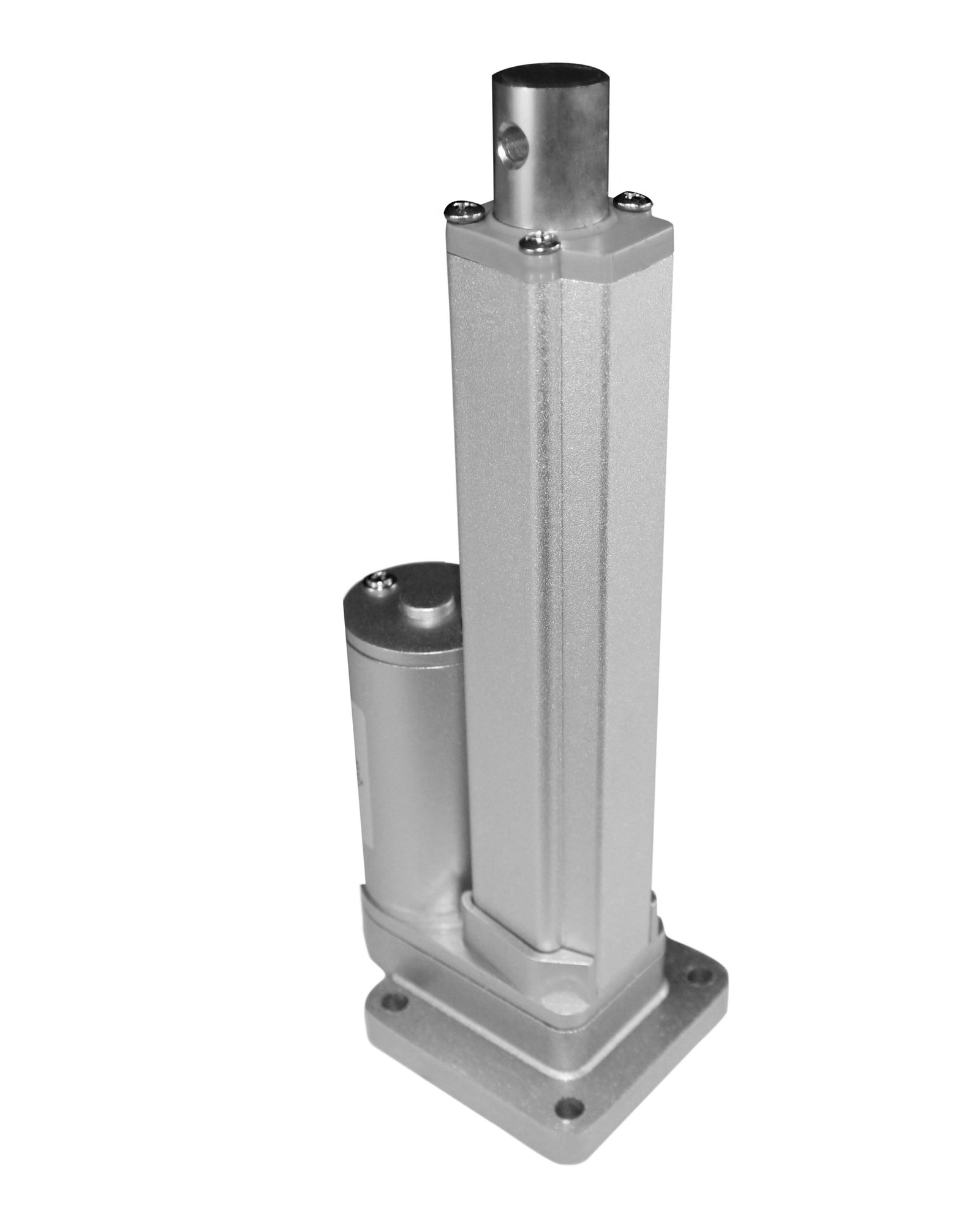

      This Base Mounting Bracket Converts the Premium Actuators or Optical Feedback Actuators to a Column Lift style Actuator. To install them you unscrew the 2 screws off the back of the actuator (watch the video below) and replace them with the screws that come with the bracket. The Optical Actuator bracket (FA-OS-IMD3) comes with longer screws to fit through the body.

      This bracket was specifically designed to work with our Premium Actuators and Optical Feedback Premium Linear Actuators only.

      *NOTE: Does NOT fit the 400 lb. force in the Premium or Optical Feedback Actuators

      Technical Drawing

      To view or download 3D Step file


      Video

      How to convert Premium Actuators using this Base Plate Bracket
