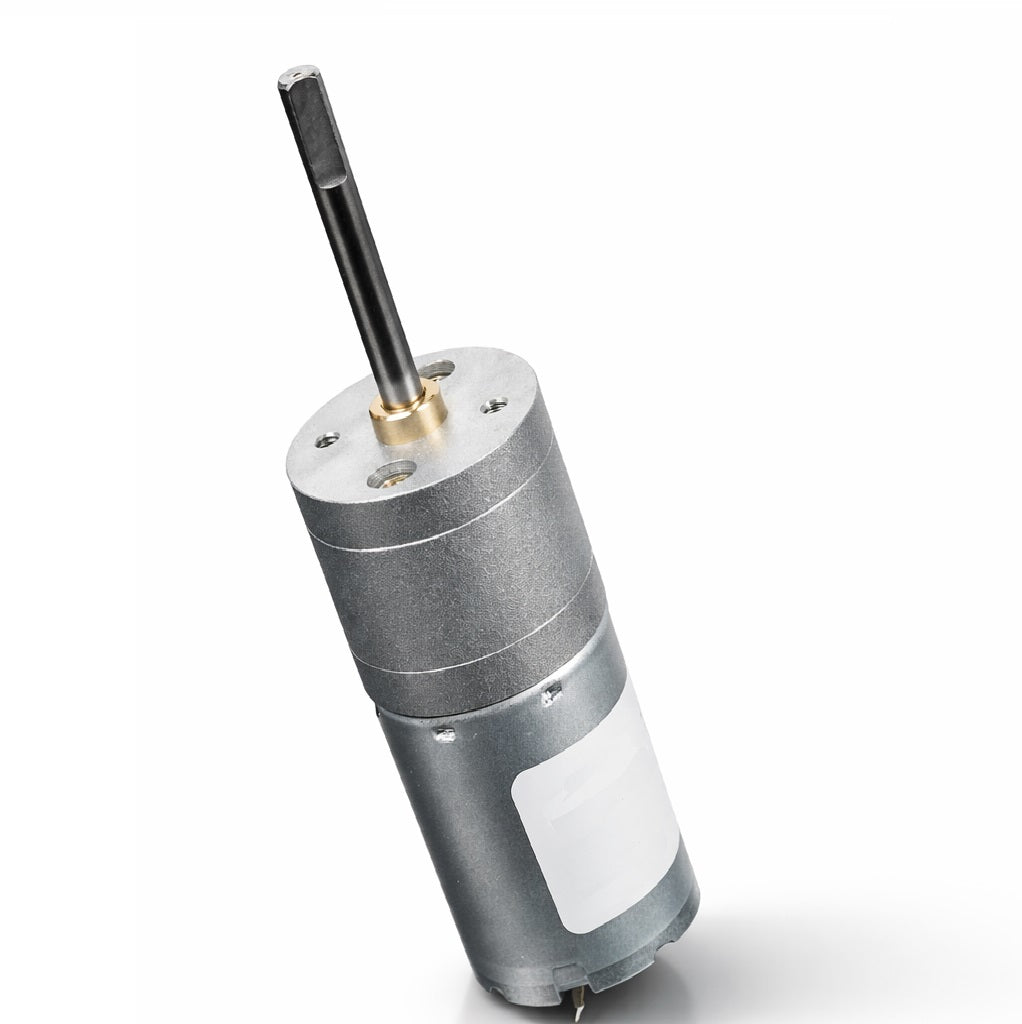

GM25 Gear DC Motor - 30.8+L * 25 * 25mm / 4mm Output Shaft

      GM25 Gear DC Motor - 30.8+L * 25 * 25mm / 4mm Output Shaft

      USD
      Model #
      Gear Ratio
      Quantity
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      These cylindrical brushed DC gear motors are available in high- and low-power versions with different gear ratios. They are can be used on many DIY projects.

      • Motor length: 30.8mm
      • Gear box length: 17 / 19 / 21 / 23 / 27
      • Shaft diameter: 4mm
      • Shaft length: 12.5
      Technical Parameters
      Gear Ratio L(mm) Free-run Speed@6V(rpm) Stall torque@6V(kg.cm) Stall current@6V(A)
      4.4:1 17 2220 0.227 6
      4.4:1 17 1280 0.142 2.2
      10:1 17 1010 0.482 6
      10:1 17 580 0.312 2.2
      21:1 19 480 1.02 6
      21:1 19 275 0.68 2.2
      34:1 21 285 1.7 6
      34:1 21 165 1.13 2.2
      47:1 21 210 2.268 6
      47:1 21 120 1.418 2.2
      75:1 23 130 3.686 6
      75:1 23 75 2.41 2.2
      378:1 27 15 7.09 2.2
      499:1 27 12 8.51 2.2
