Heavy Duty Drawer Slides

      Heavy Duty Drawer Slides

      Model #
      Drawer Slide Extension
      qty limit cart limit
      View Cart 0

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

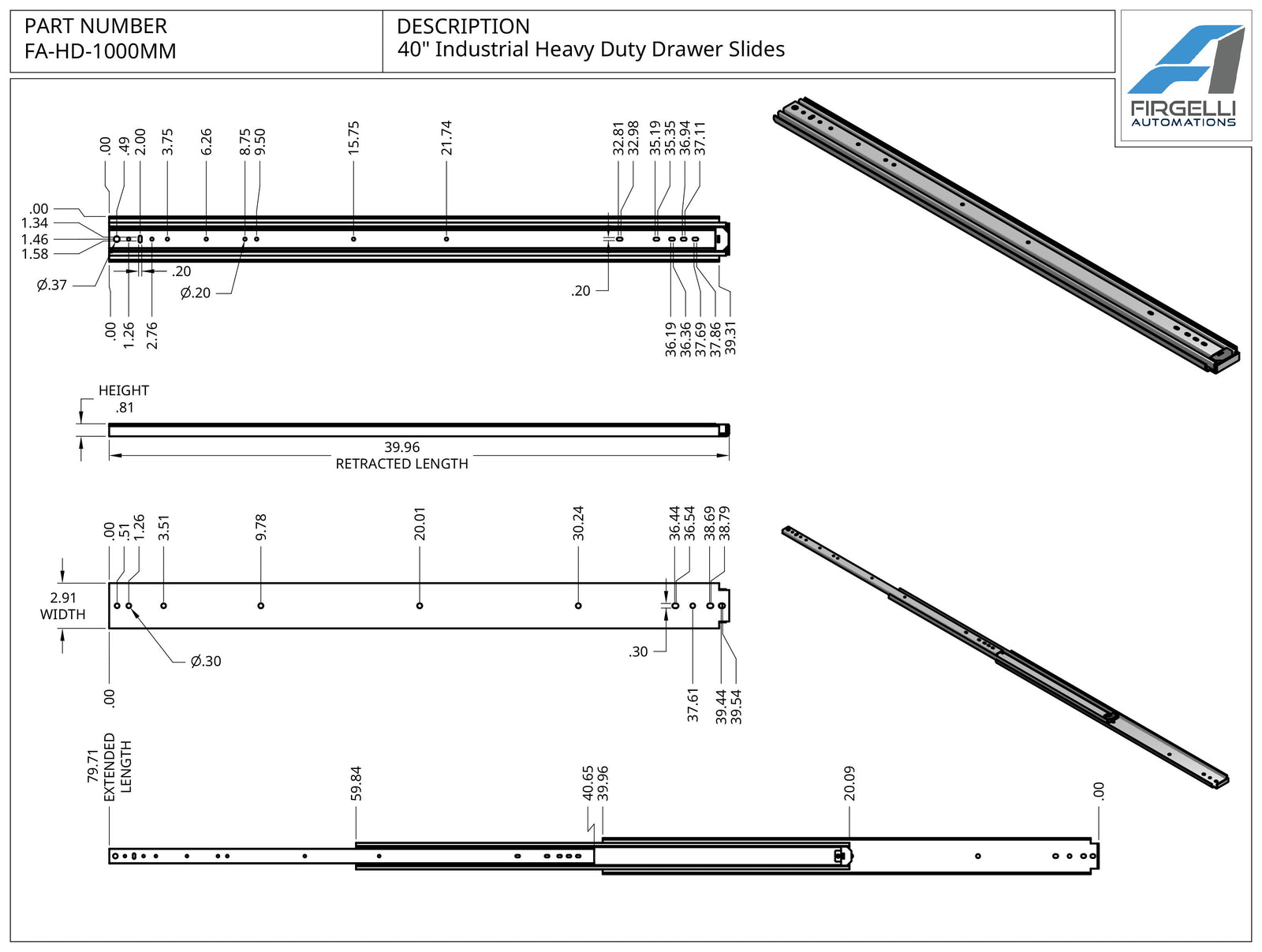

      40 Inch Step File
      40 Inch Slide Range PDF

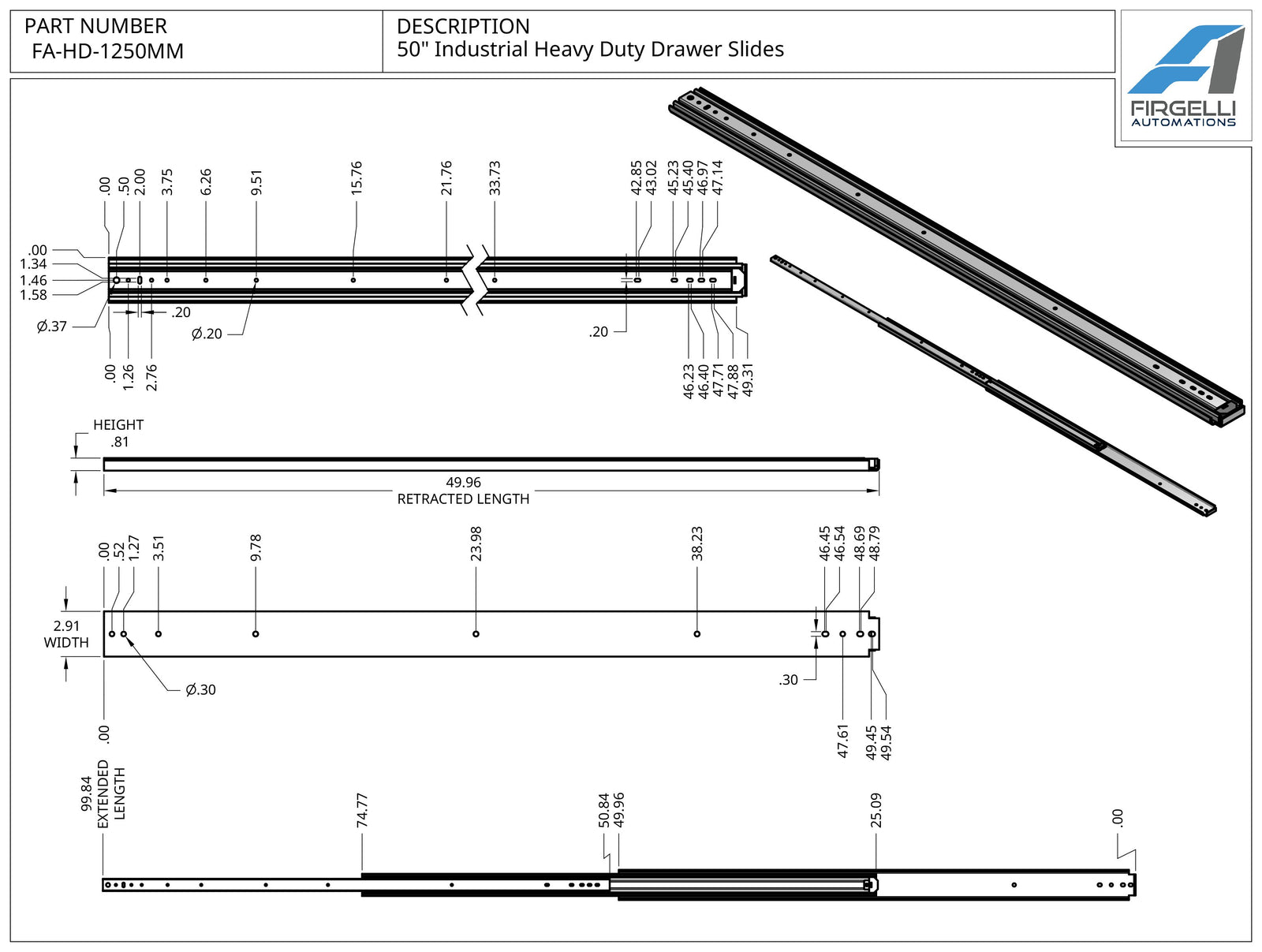

      50 Inch Step File
      50 Inch Slide Range PDF

      Heavy Duty Drawer Slides Description

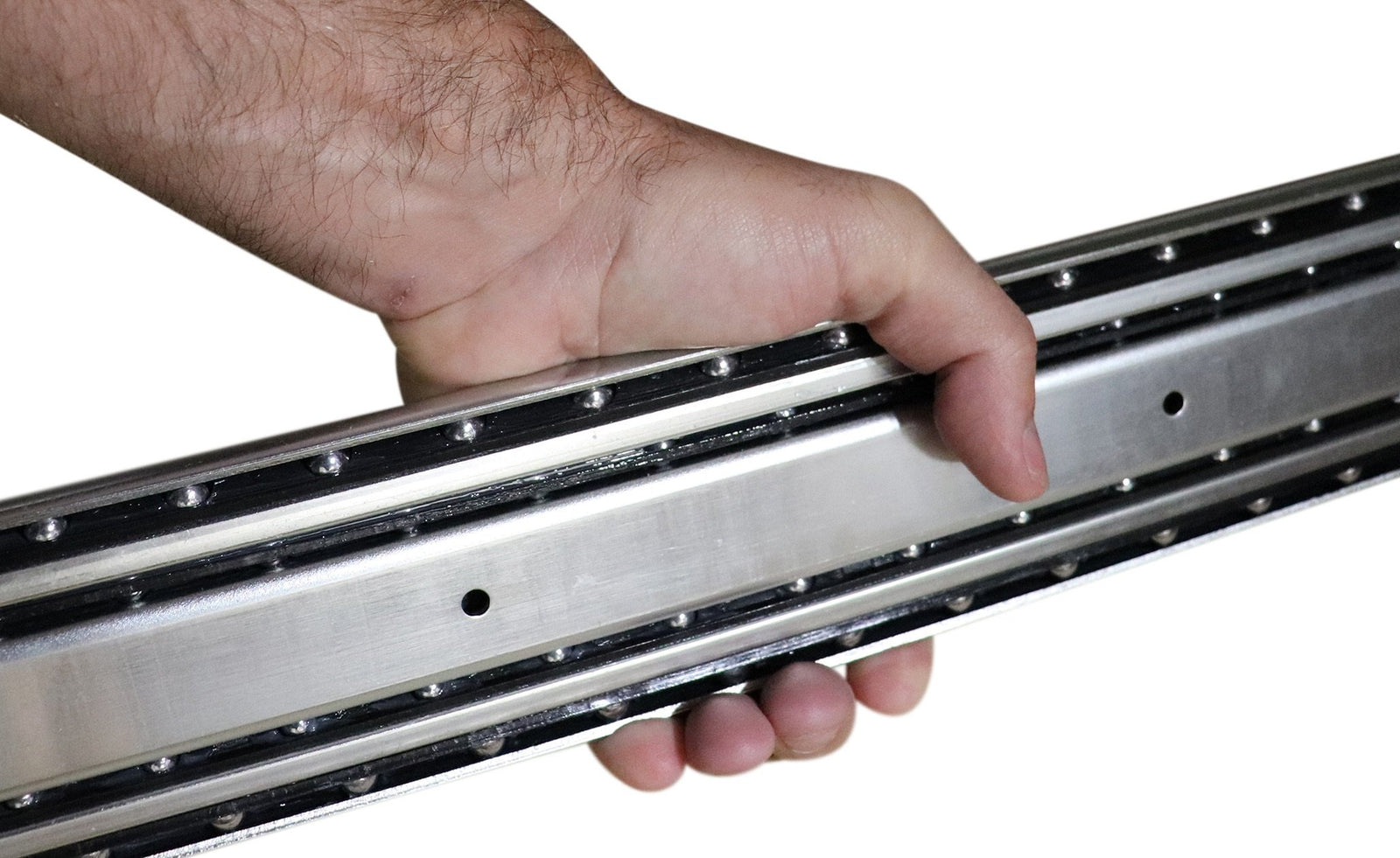

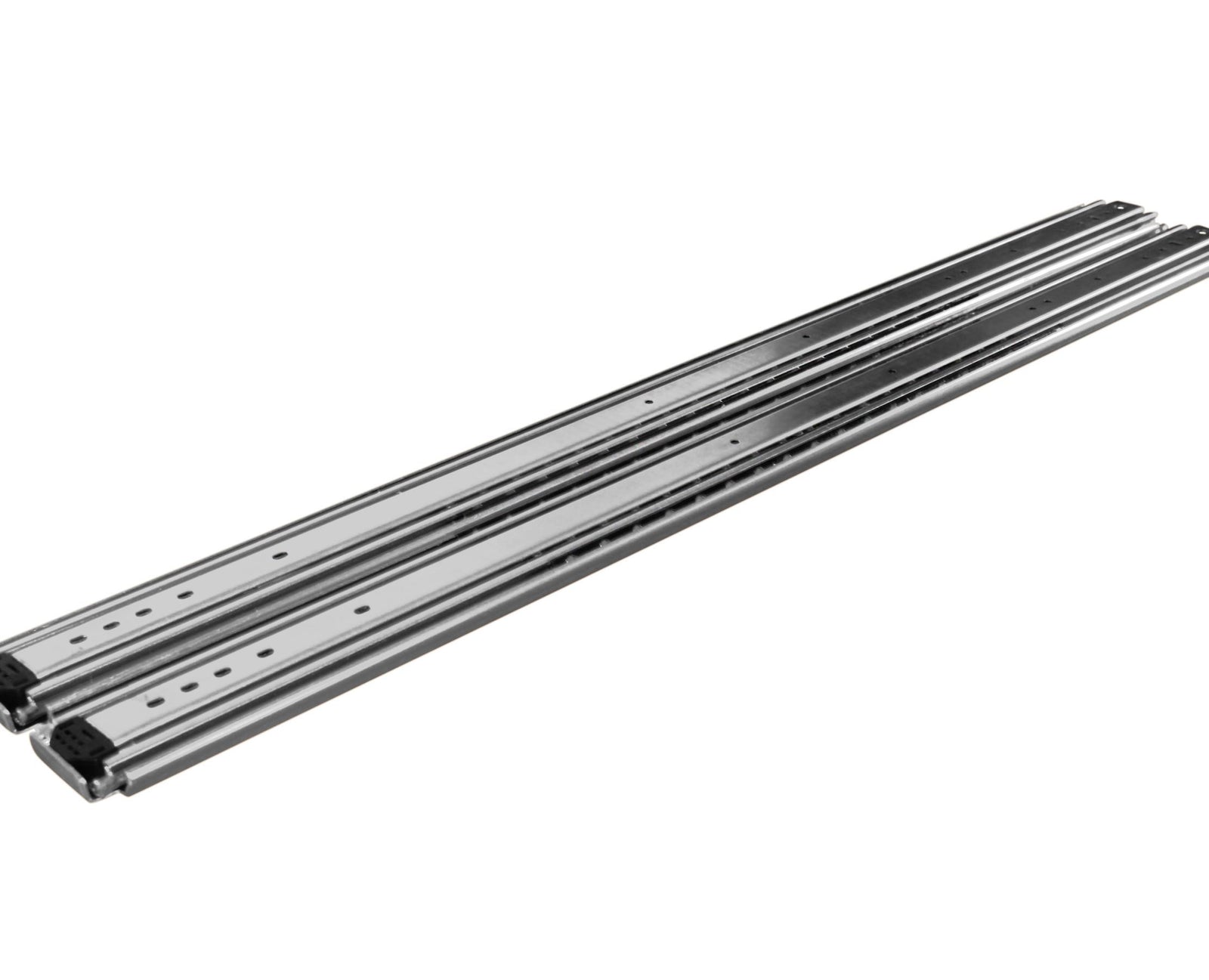

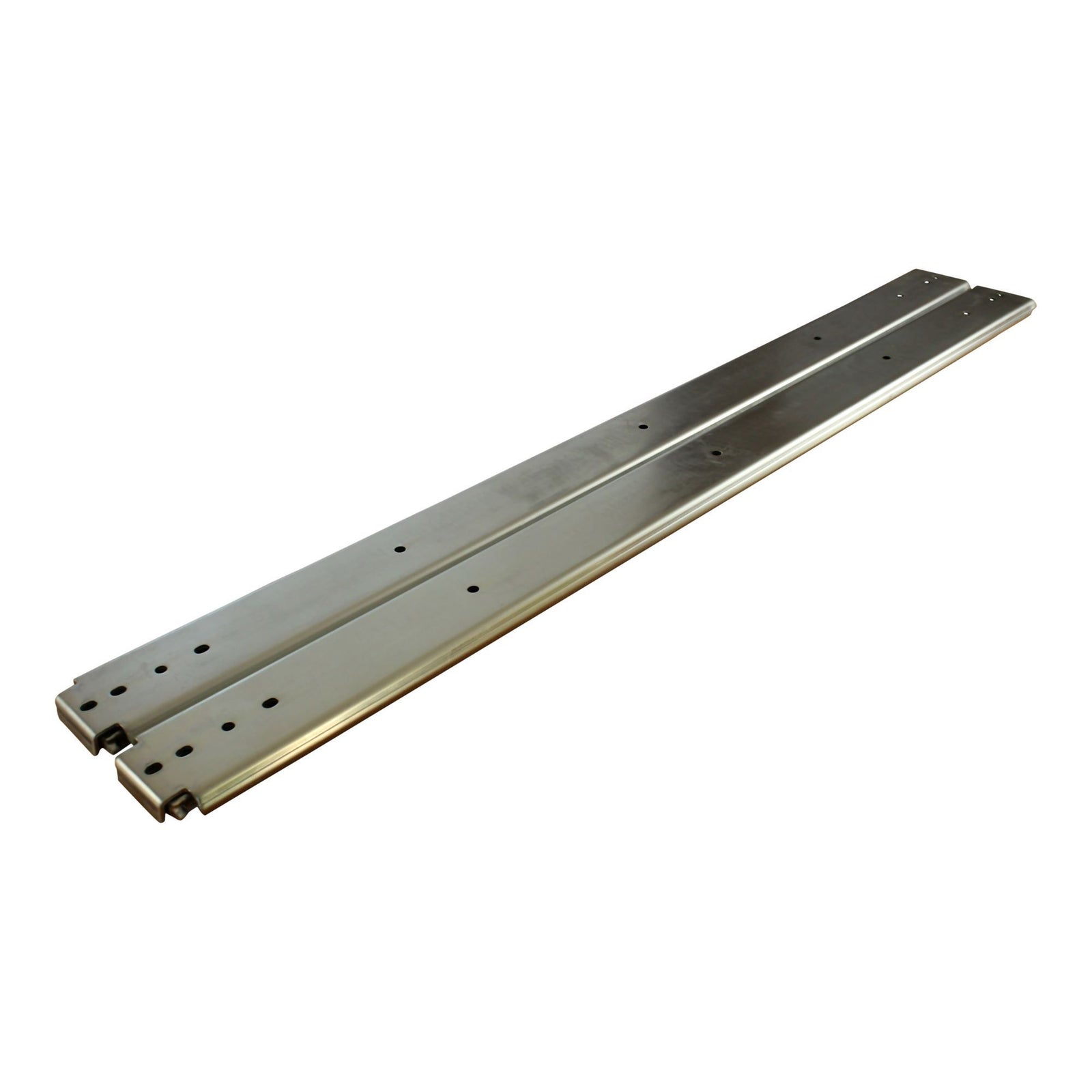

      Our 500 lb. Extra Heavy Duty Telescoping ball bearing Drawer Slides are specifically designed to support a range of specialty and commercial, Industrial and vehicle storage applications making them the perfect heavy duty cabinet hardware. Features a non-disconnect design with a longer pull life. These Heavy Duty Slide Rails are frequently used in RV's and Garages where deep cabinet drawers are been used that need to carry a lot of weight.

      How do you choose which drawer slides are suited for your application? There are 3 options to consider, firstly the extension length, then the weight capacity and then the mounting location. Our Heavy Duty drawer slides have 3 different extension options and can carry up to 500-lbs weight. In addition they can be side mounted or under mounted (at a reduced weight capacity).

      How to install drawer slides? We have created a helpful "Basic installation instructions pdf".

      • Height: 3”
      • Thickness: 0.75”± 0.02”
      • Load-bearing: 500 lbs (226 KG)
      • One set includes two slides

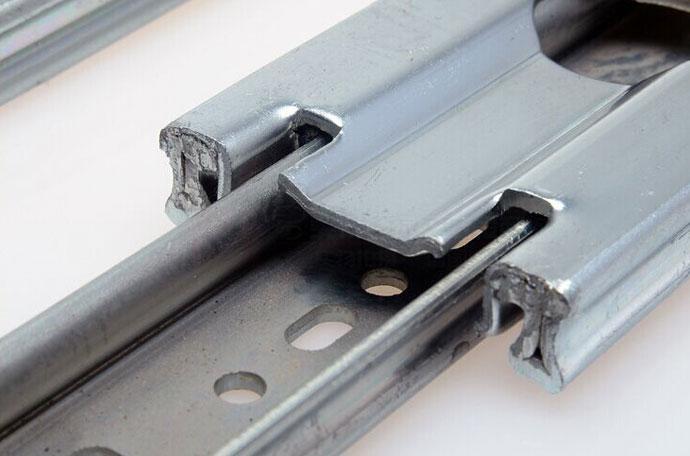

      • Cold rolled steel grade 235 and stainless steel ball bearings.
      • Exceptionally smooth and quiet.
      • Mounting: on both sides
      • What are the different types of drawer slides? Visit an article we wrote titles "What are the different types of drawer slides"
      • How do you install drawer slides? Read our blog post on "How to install Drawer Slides"
      Product Video

      3D Model Downloads (.STEP)
