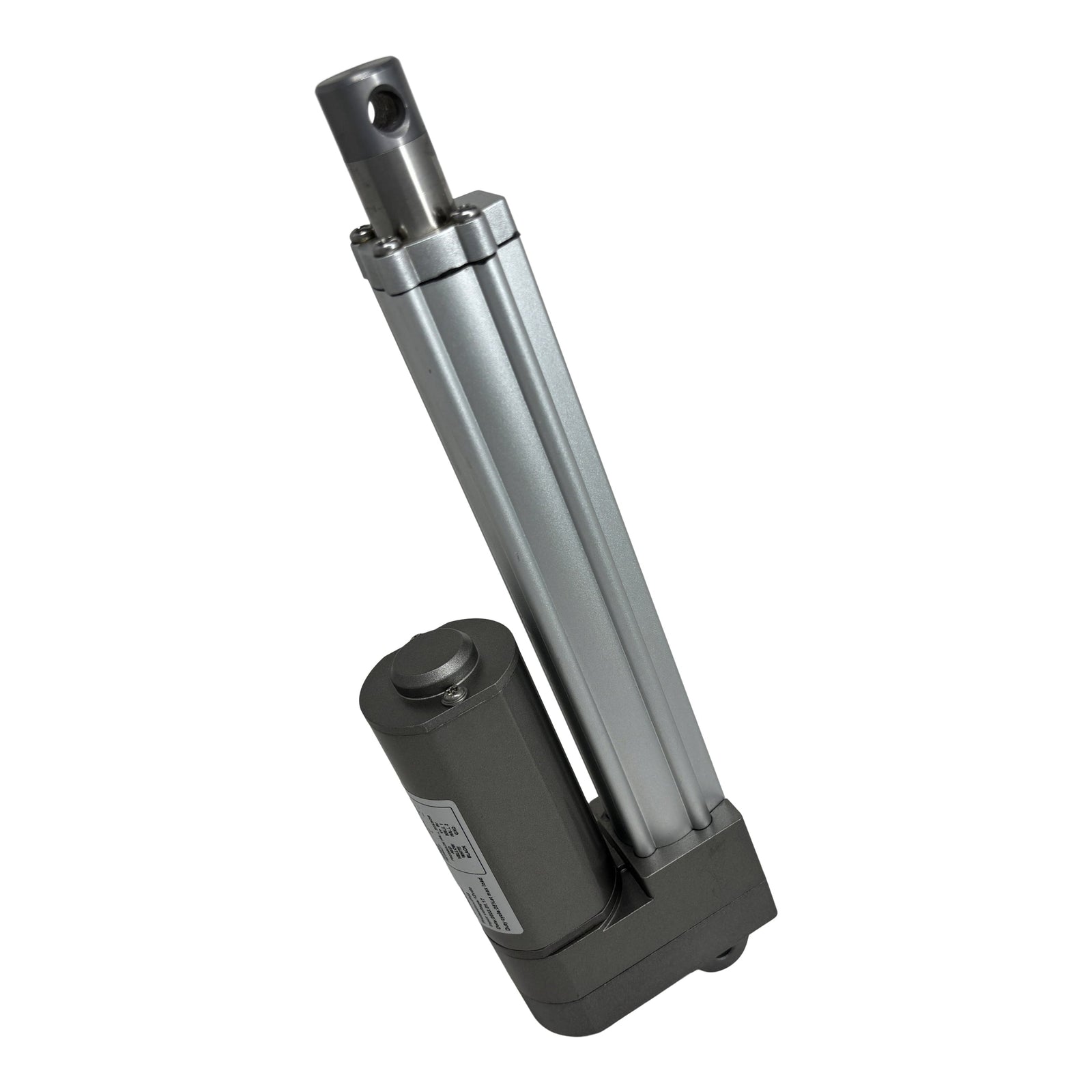

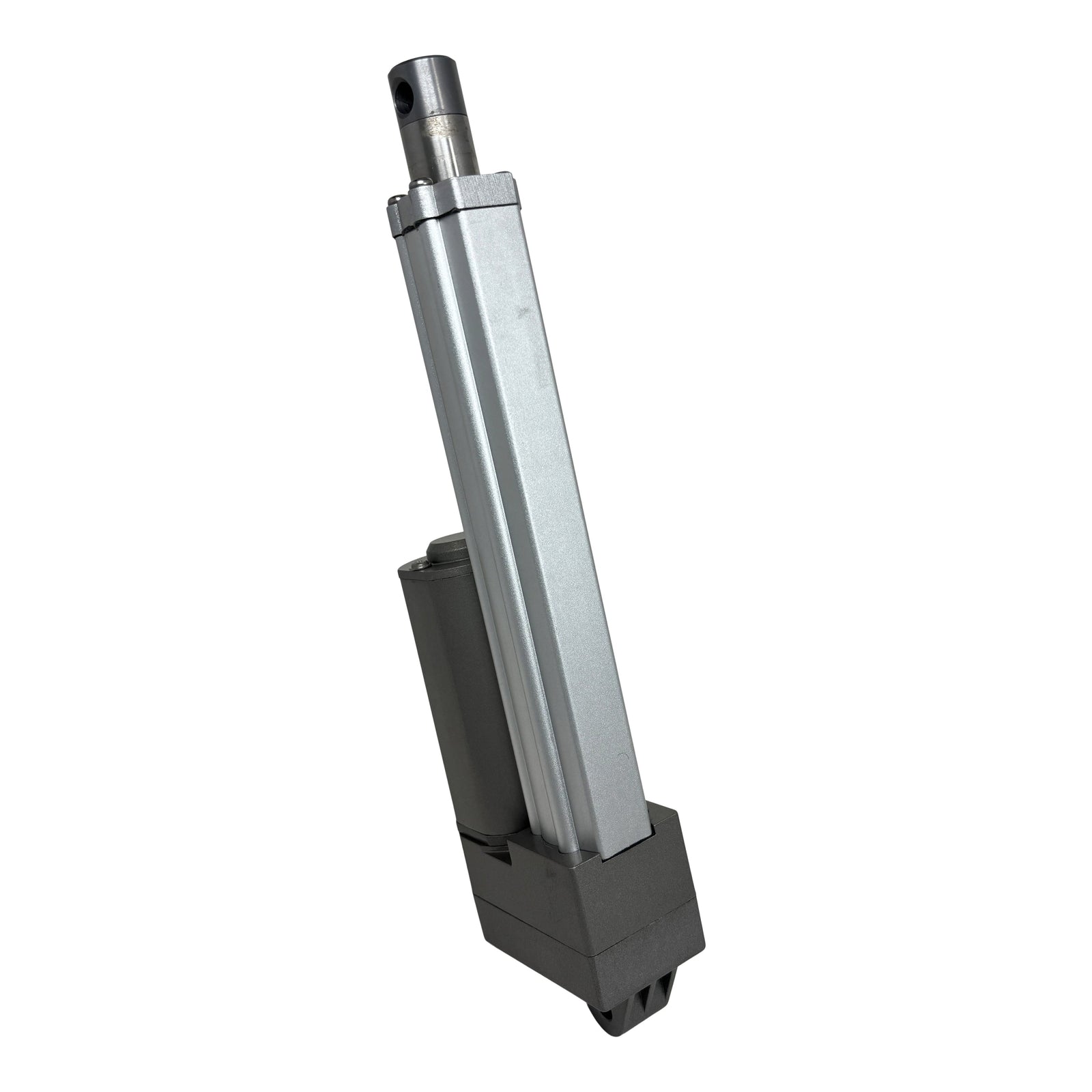

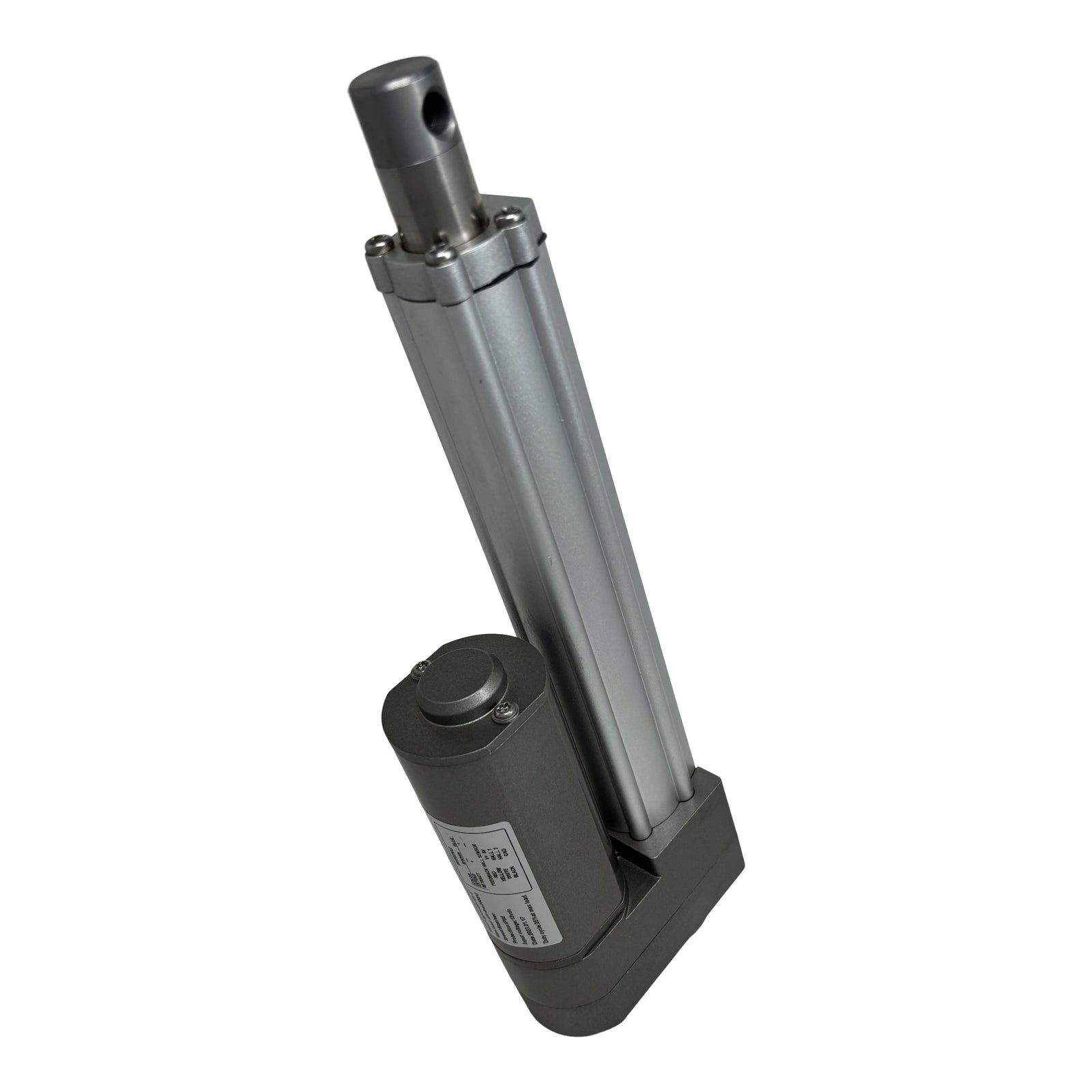

Super Duty Actuators

      Super Duty Actuators

      USD
      Model #
      Force
      Stroke
      Quantity
      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout. Due to new Trump tariffs, discounts over 20% have been removed until further notice

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Description

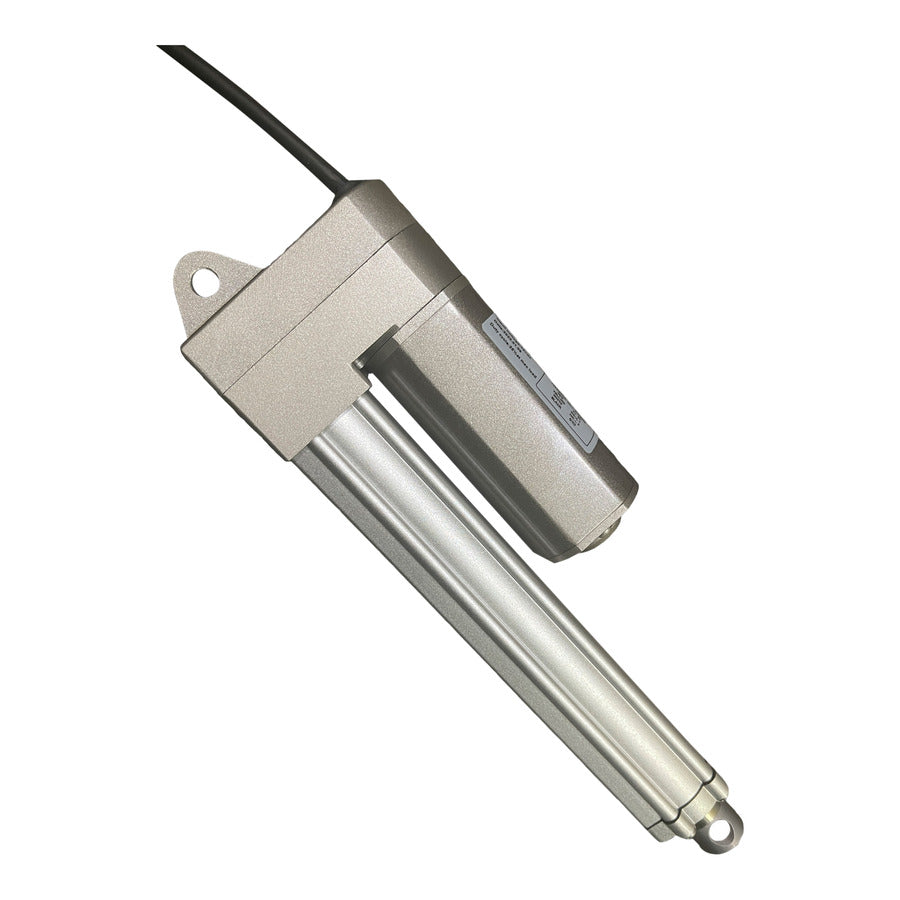

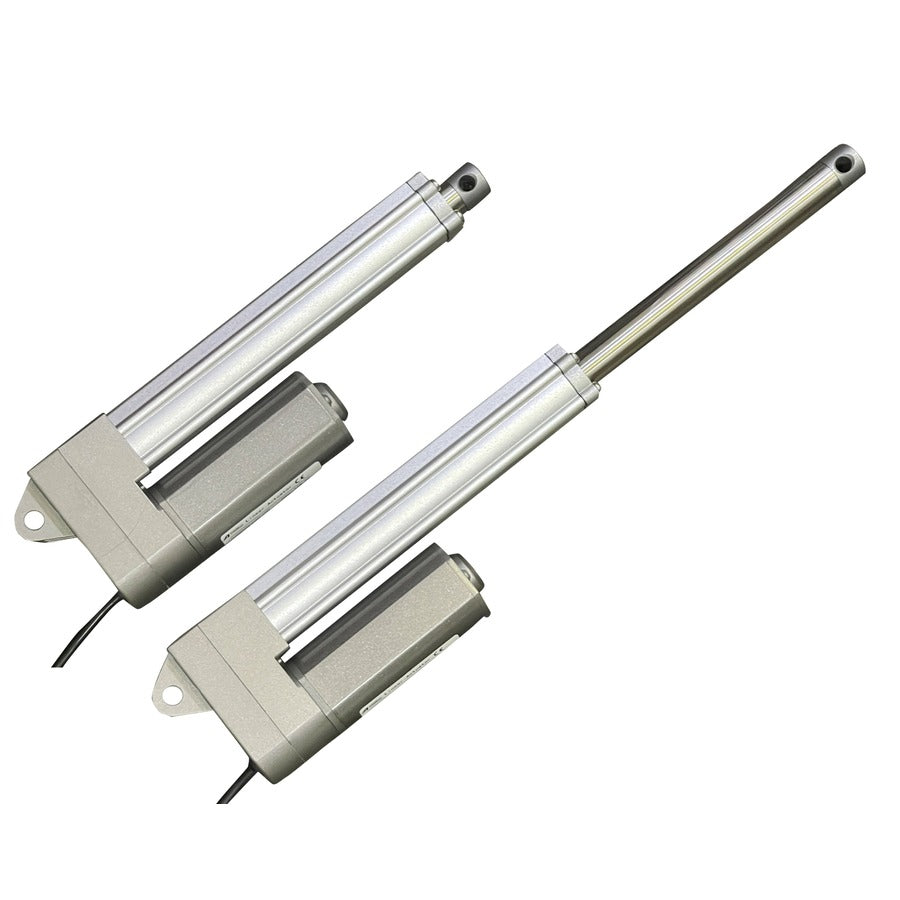

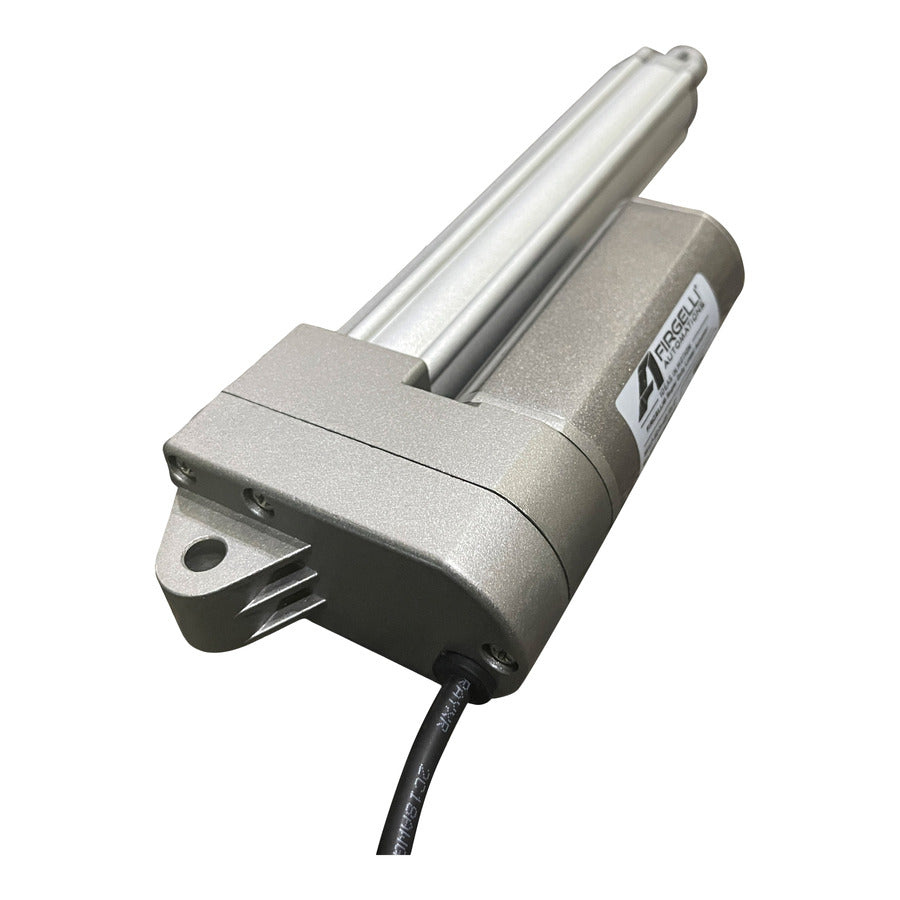

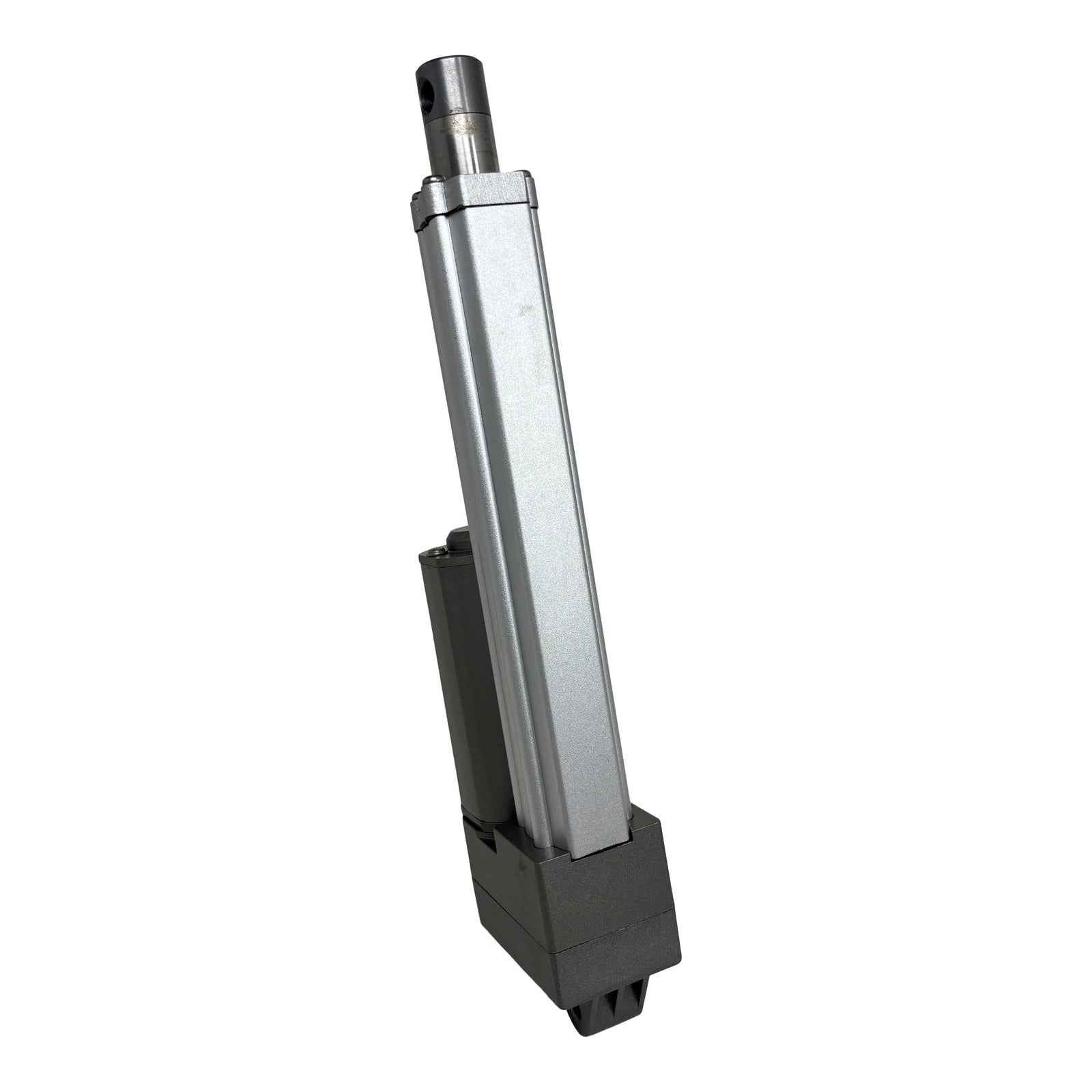

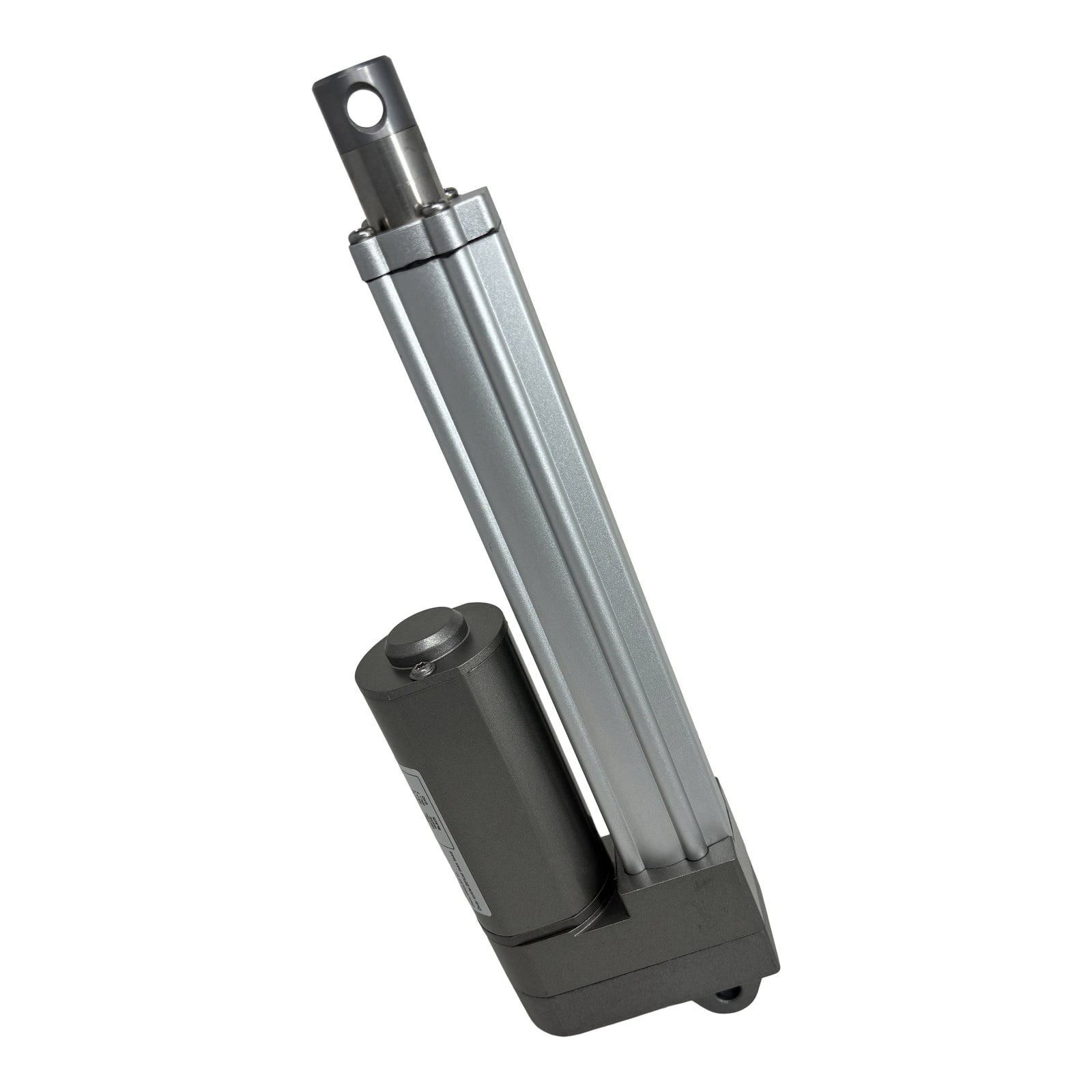

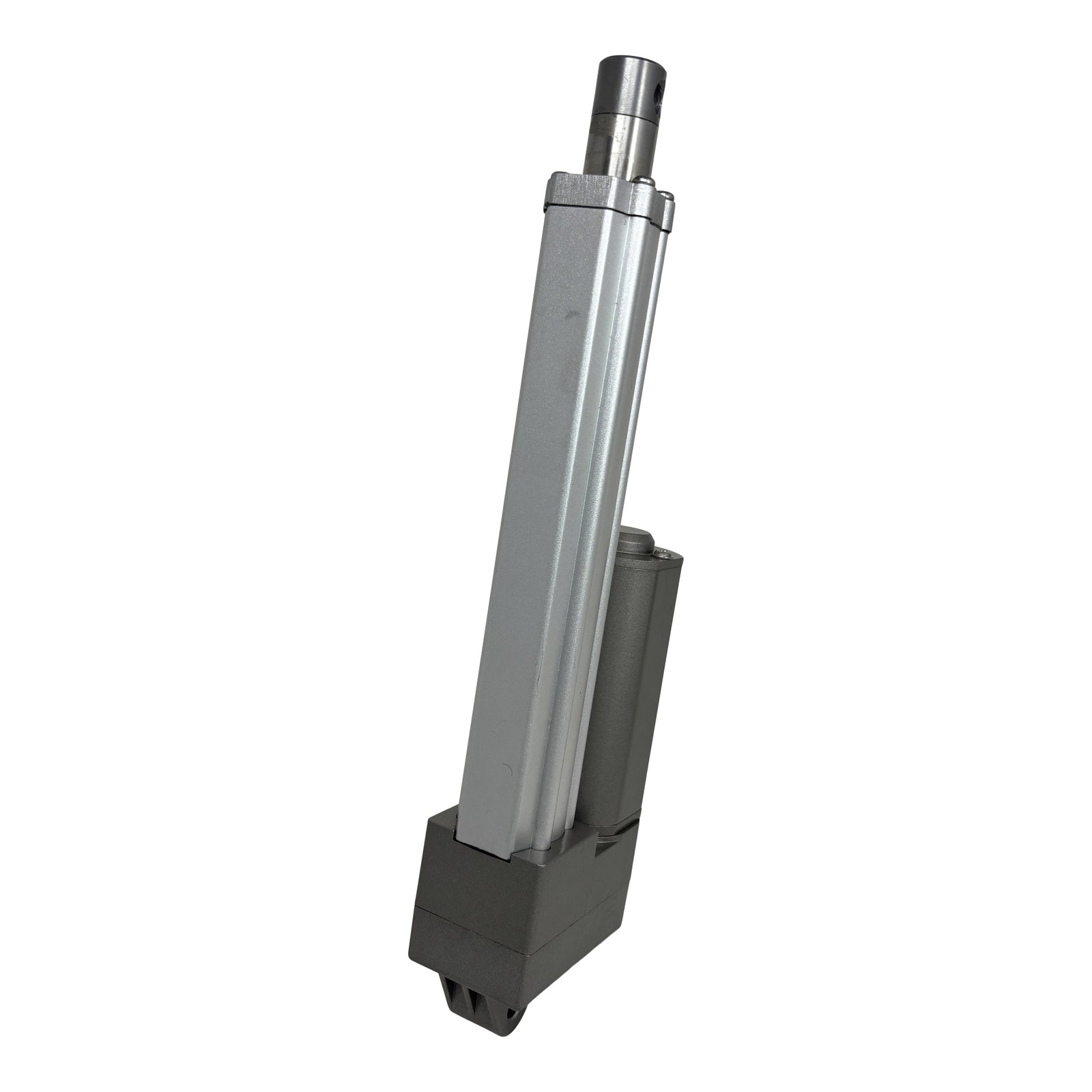

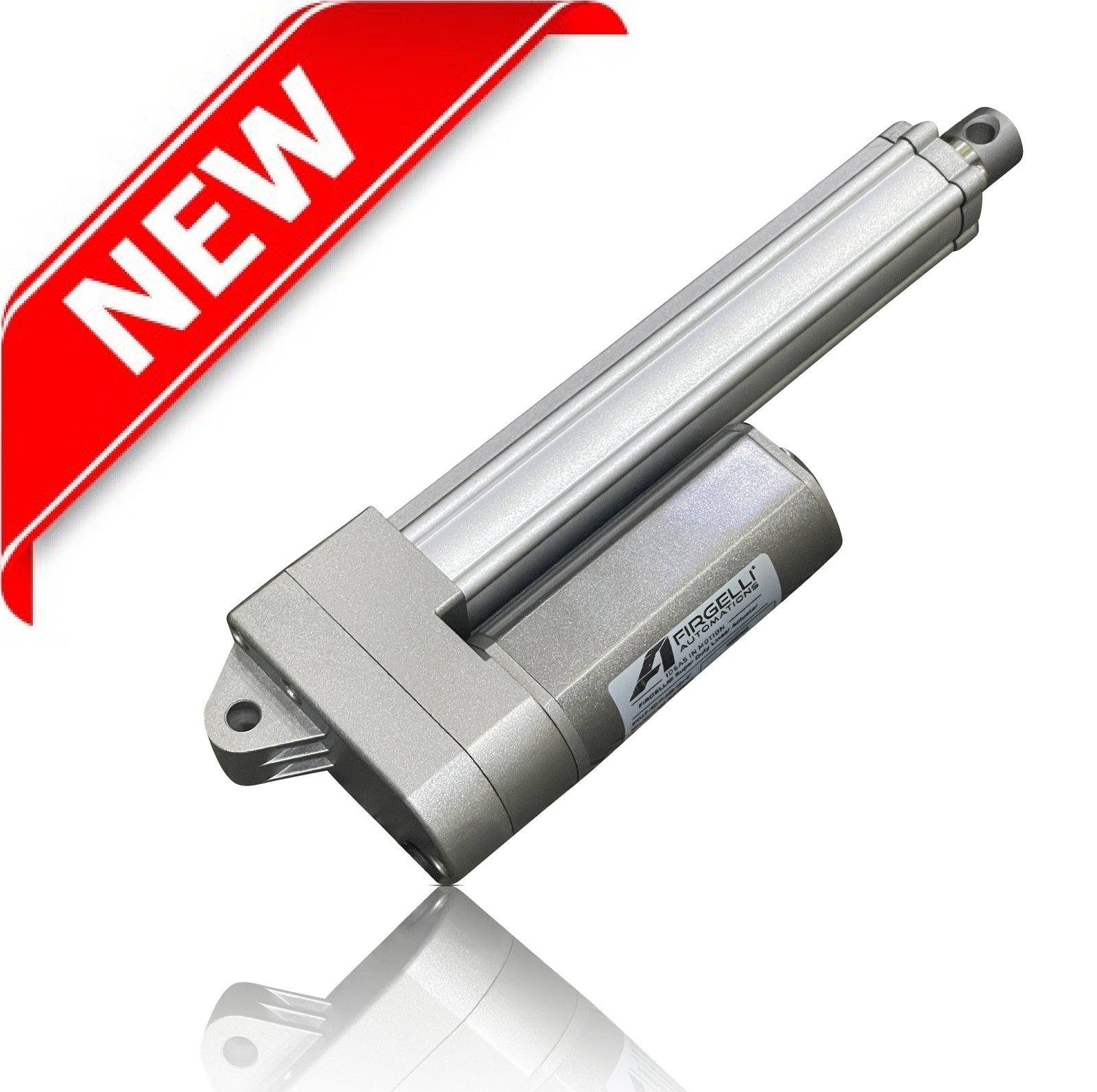

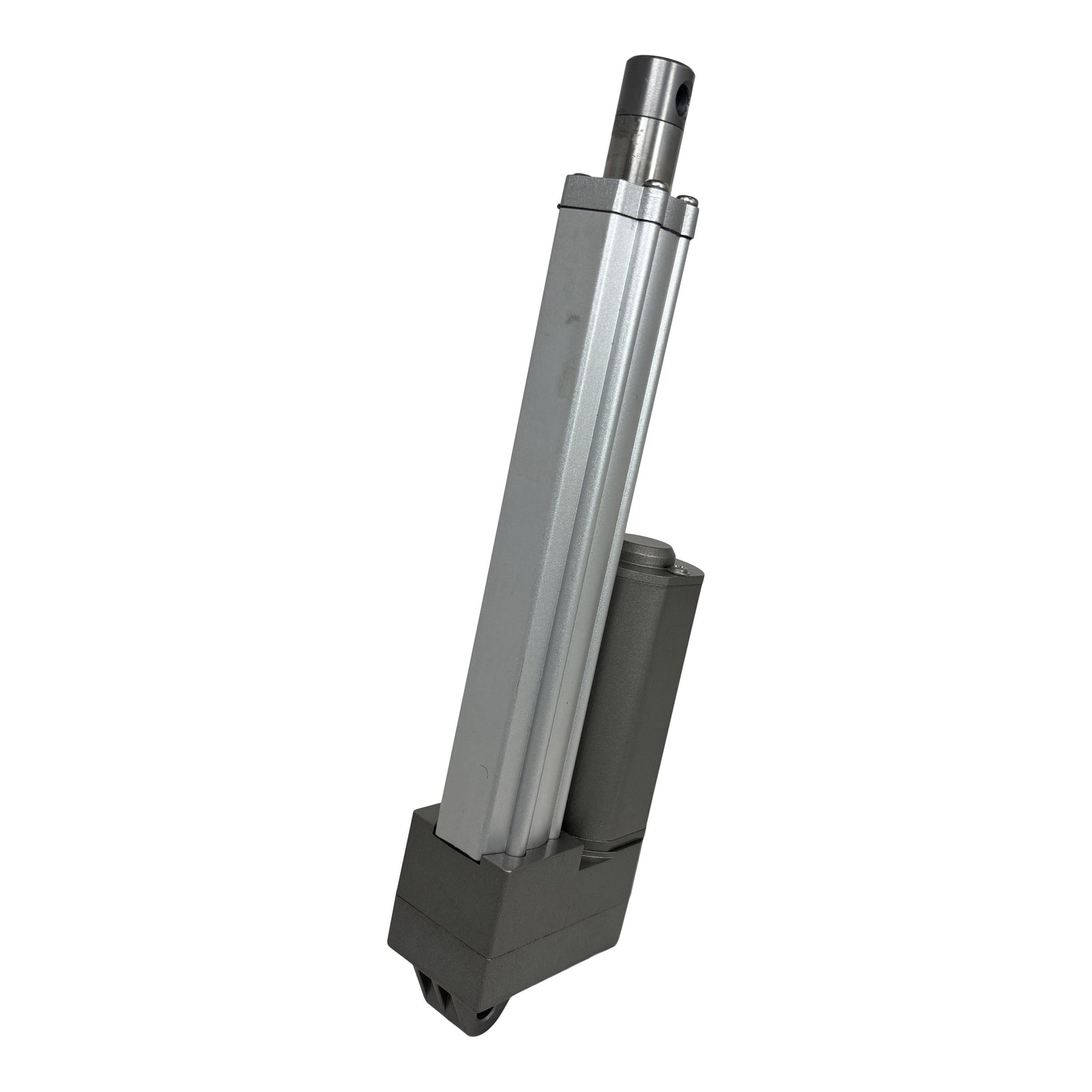

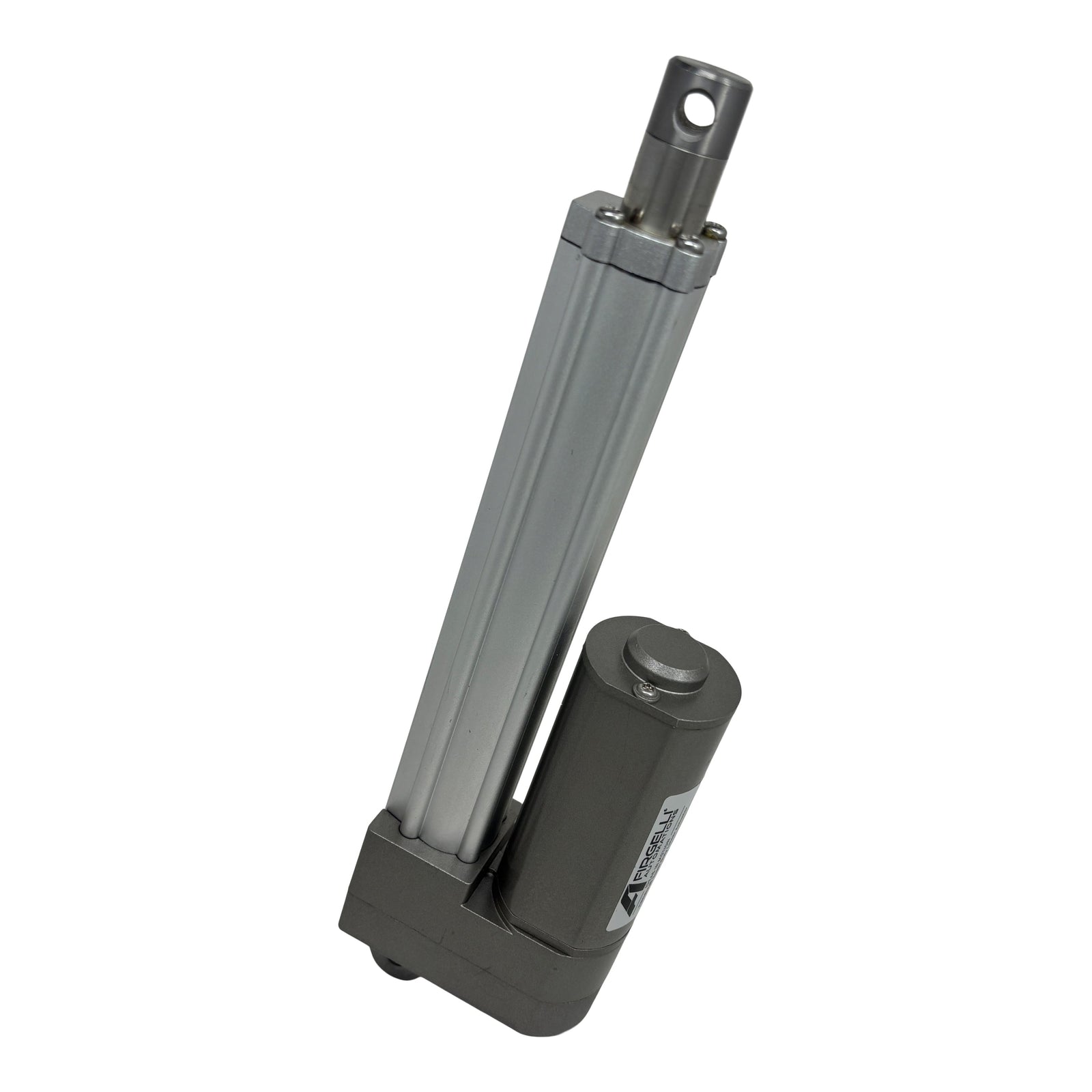

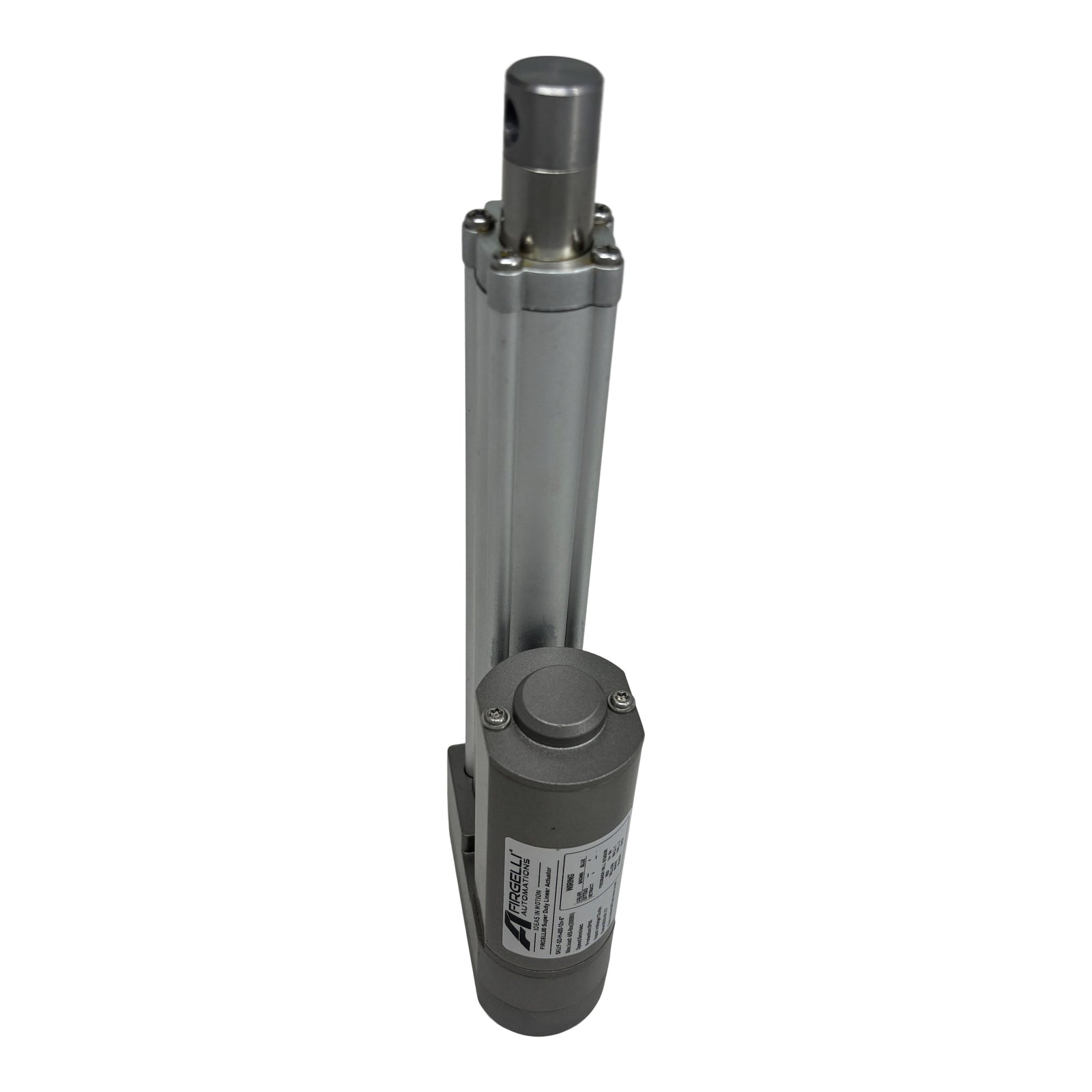

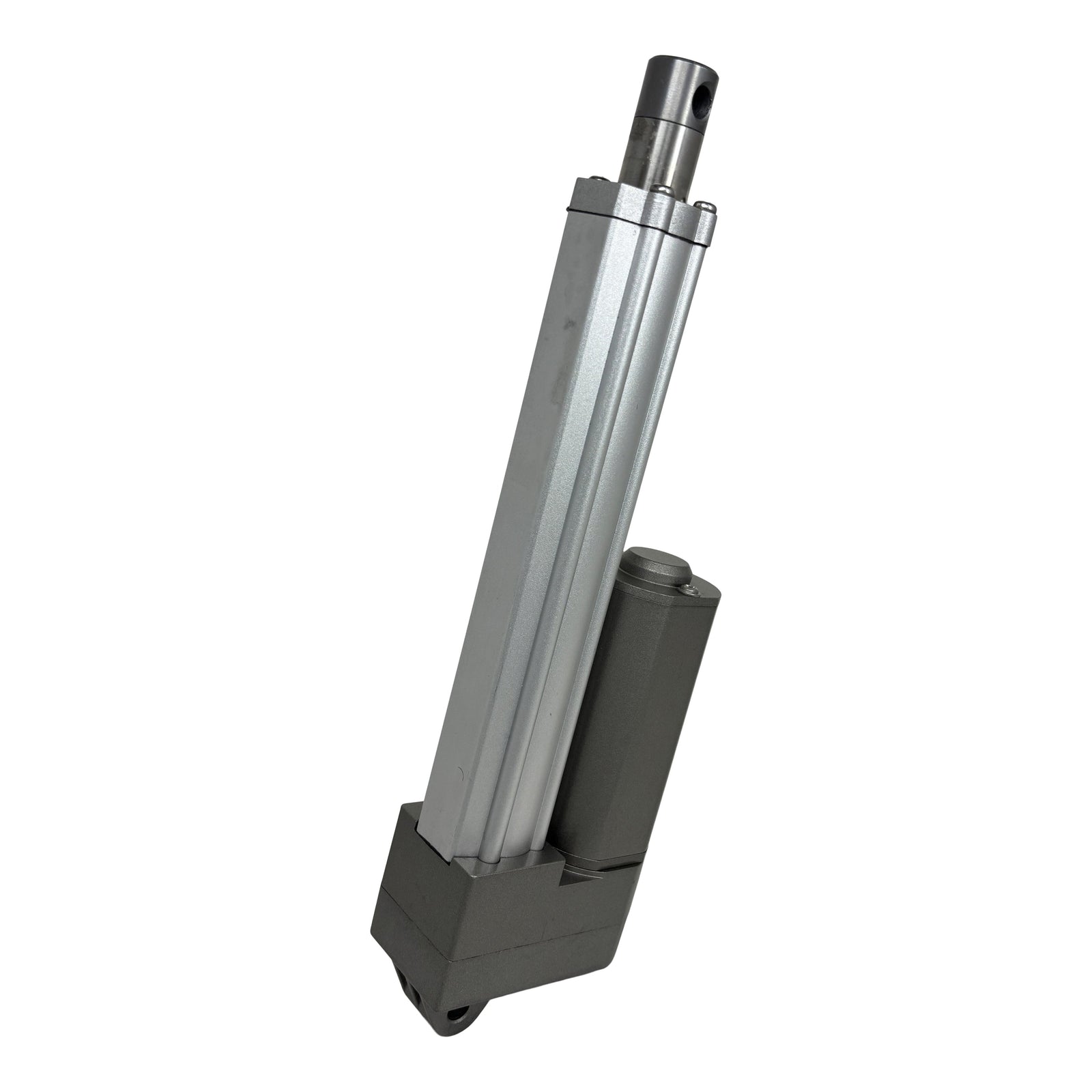

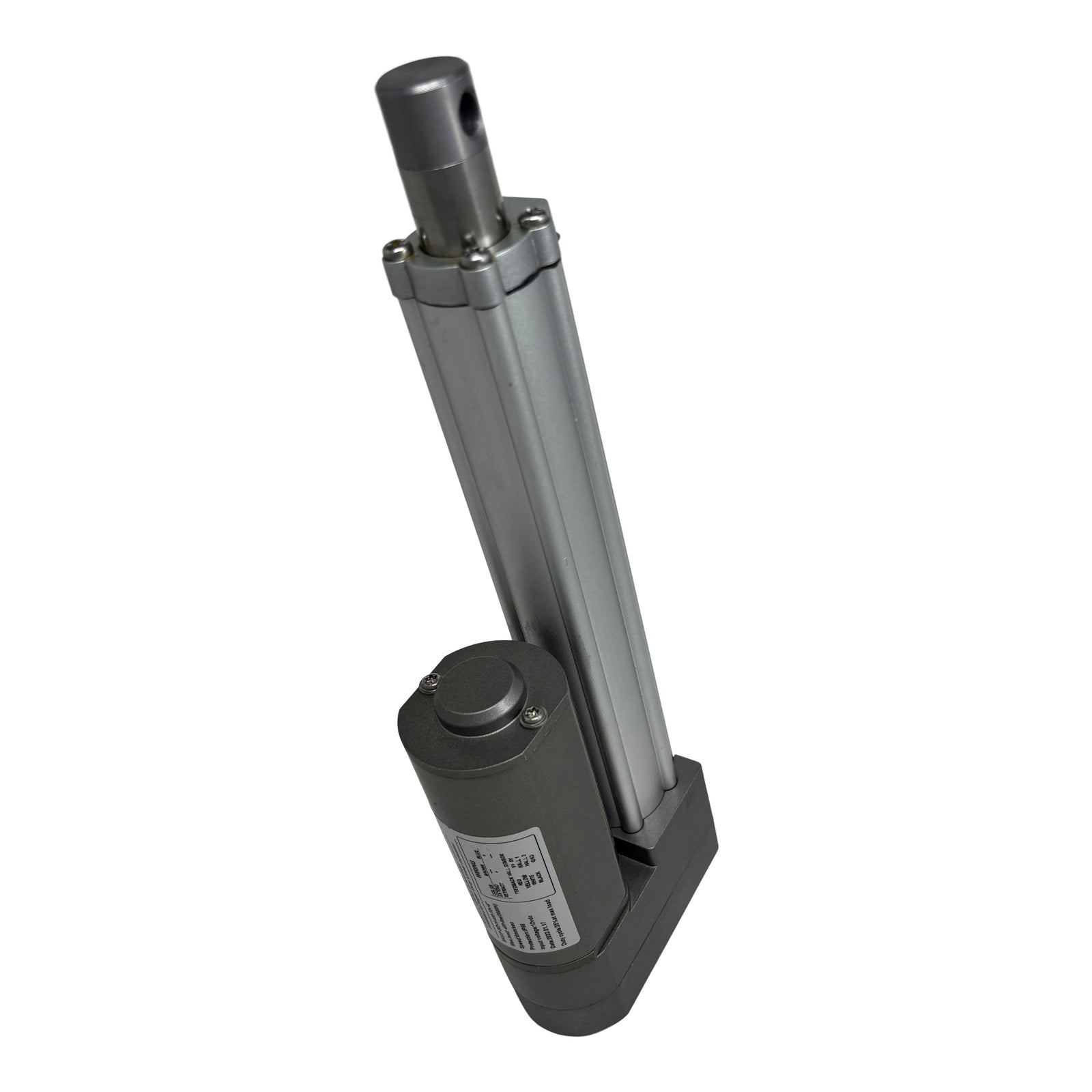

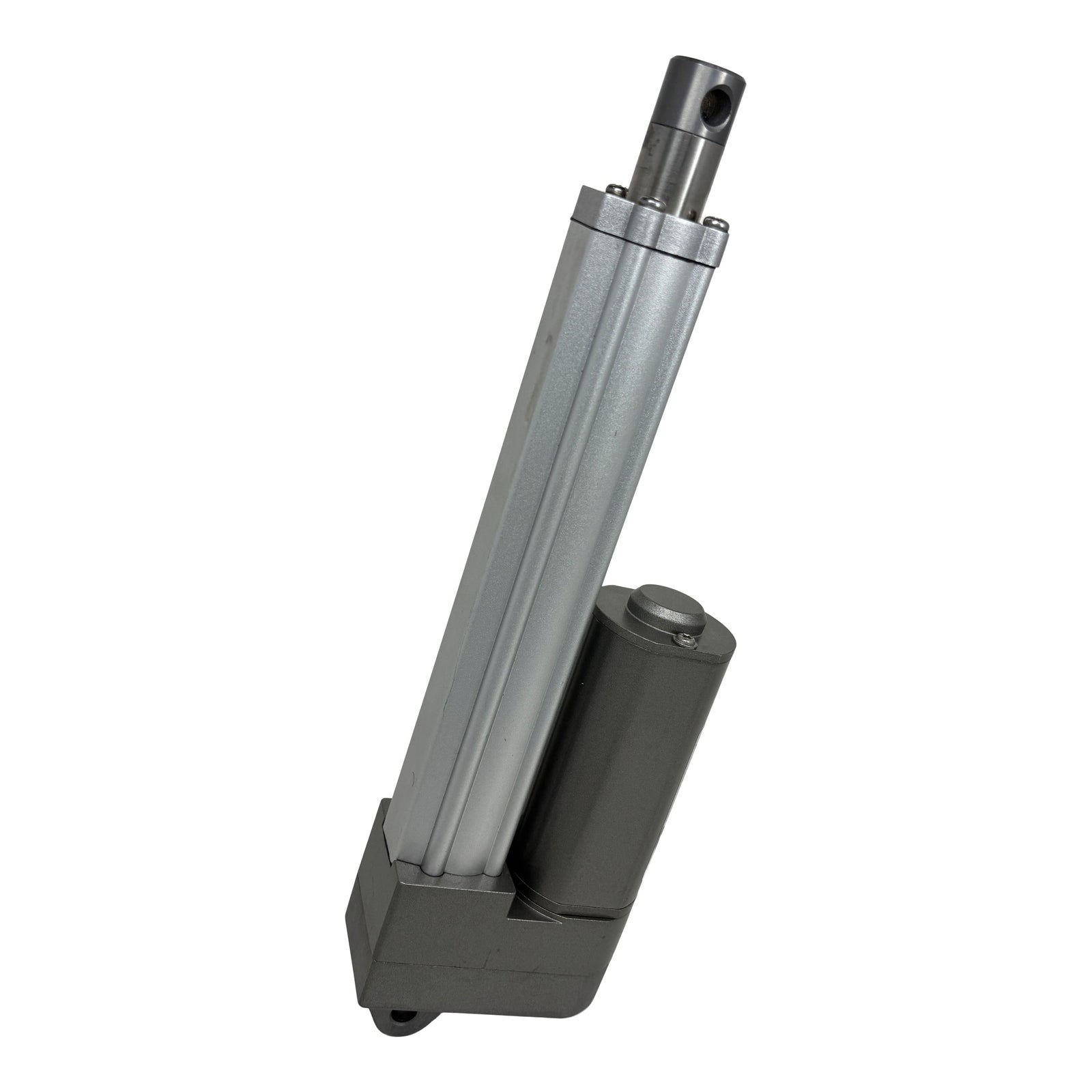

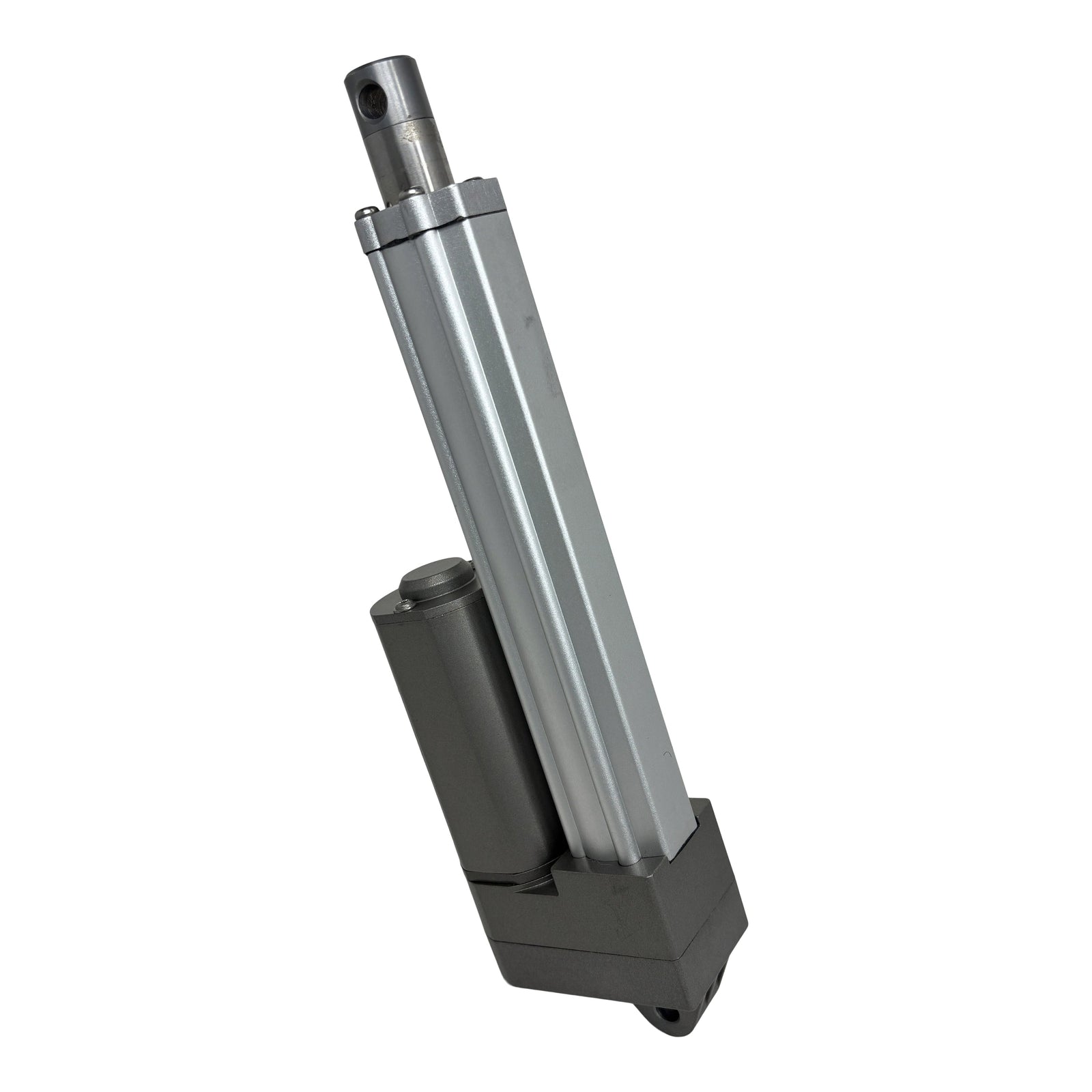

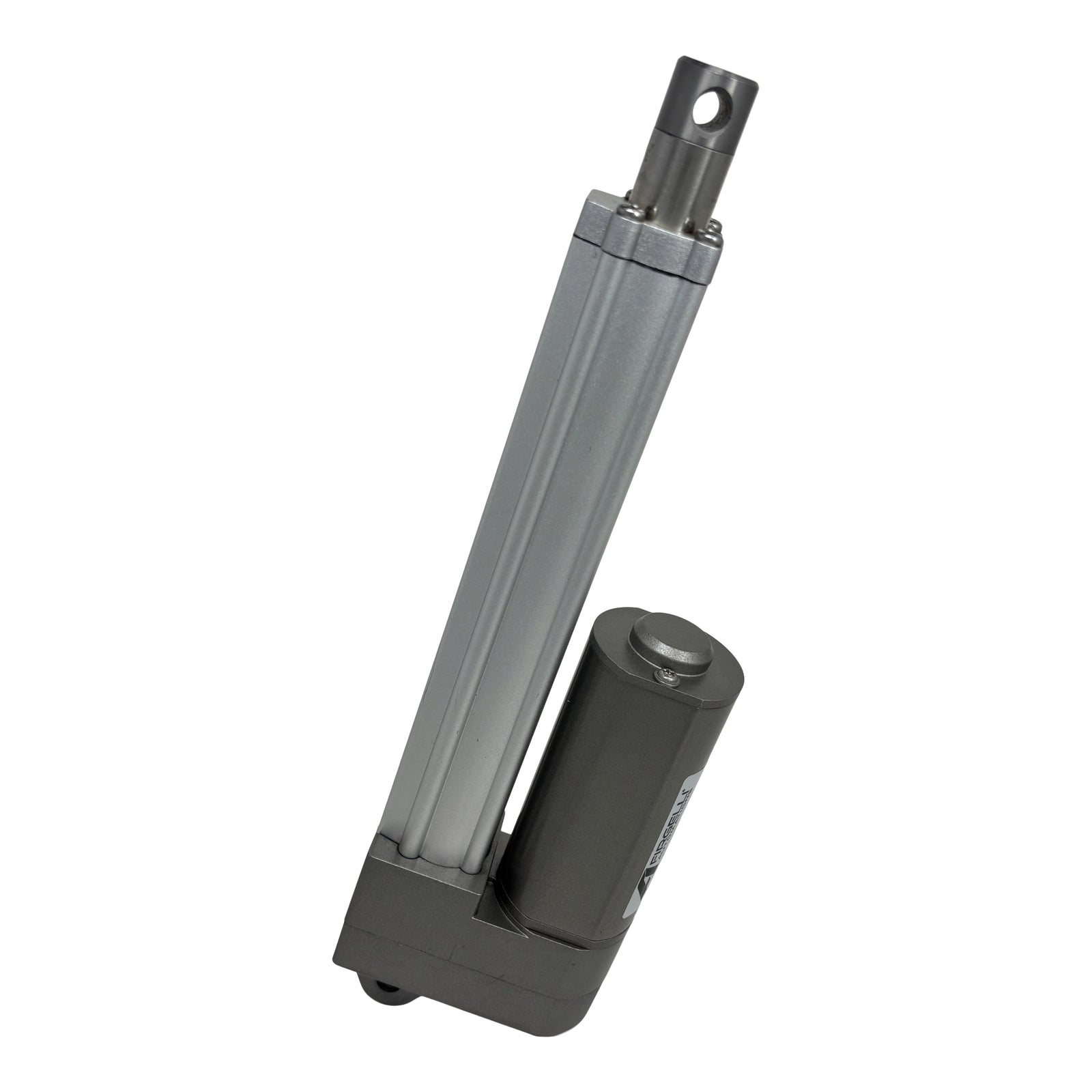

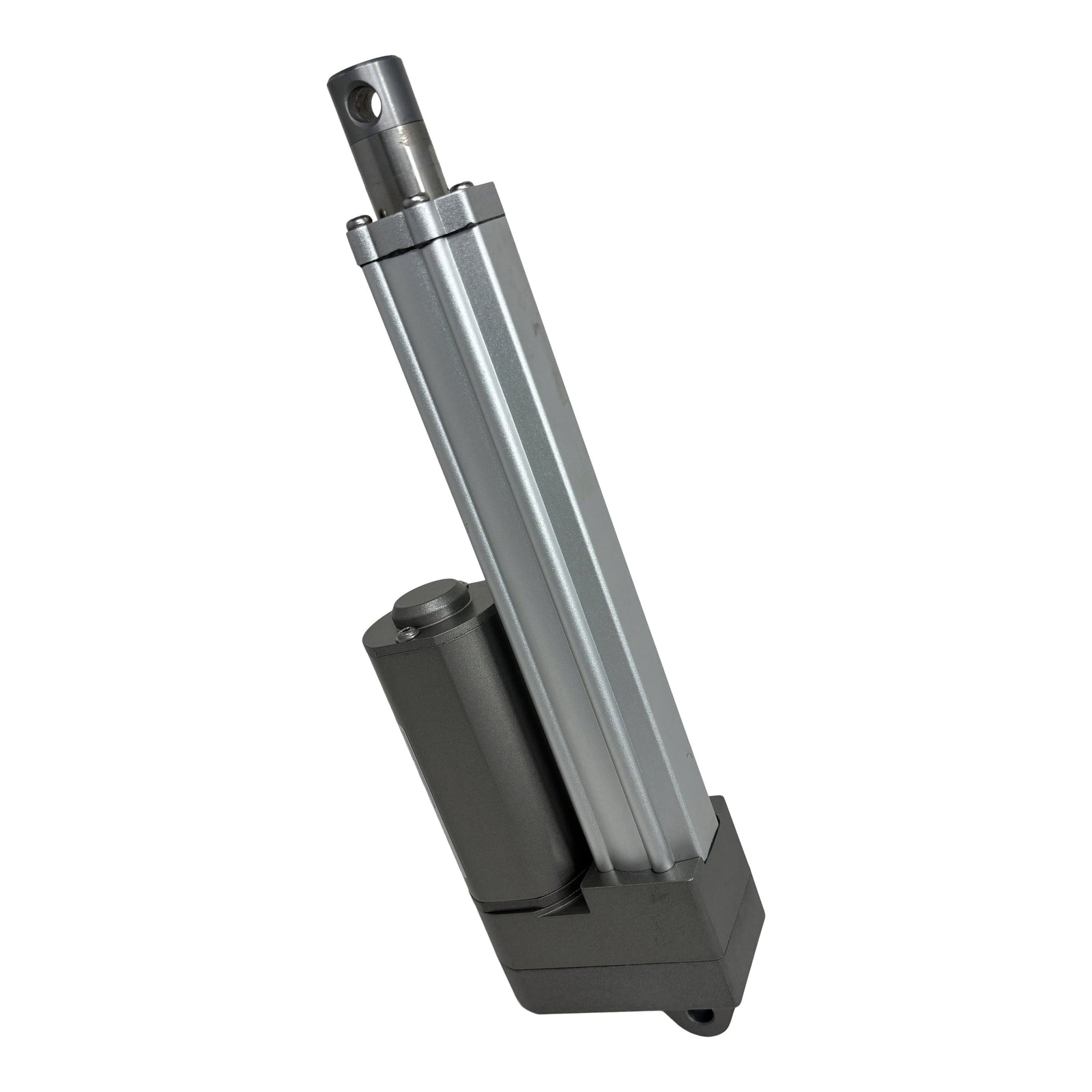

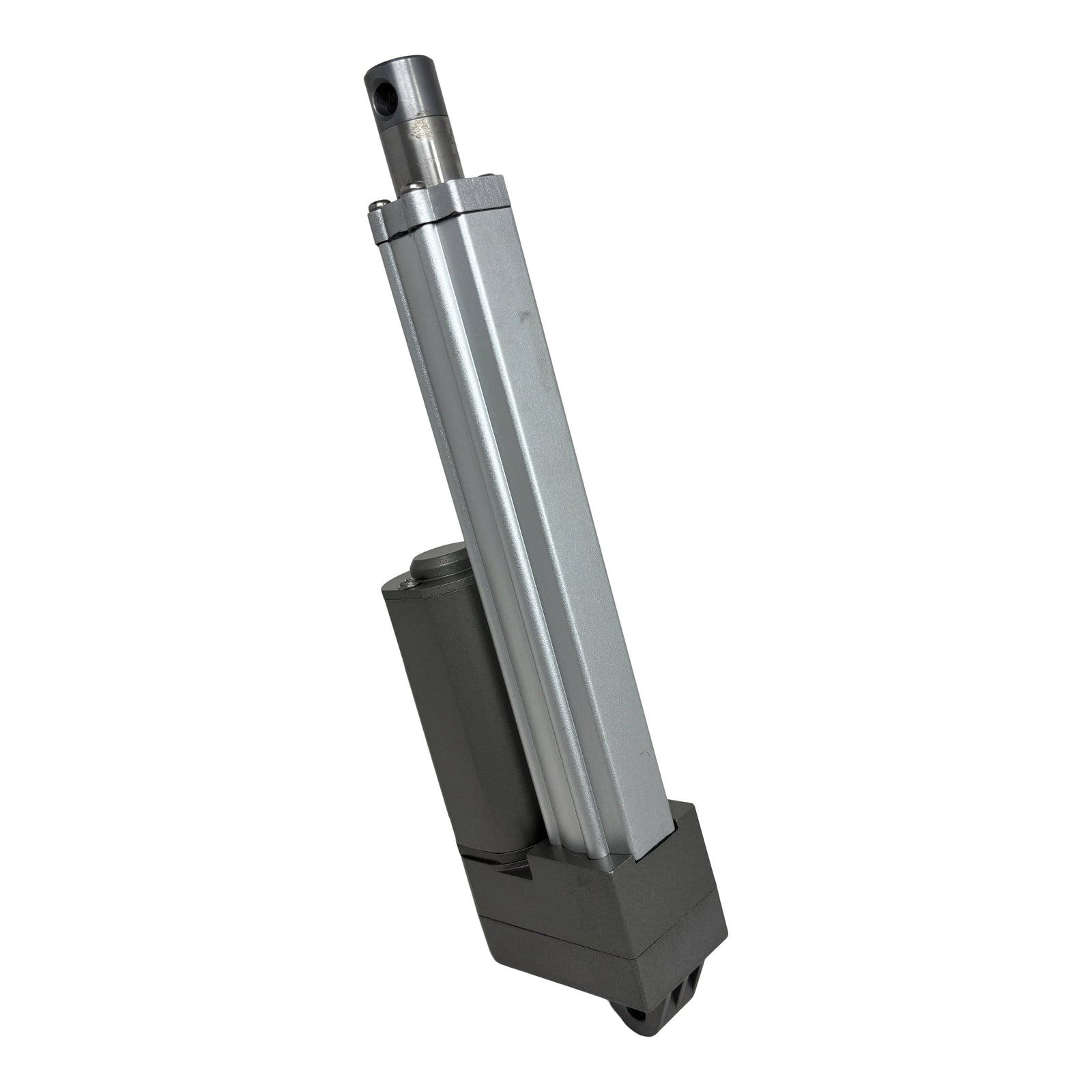

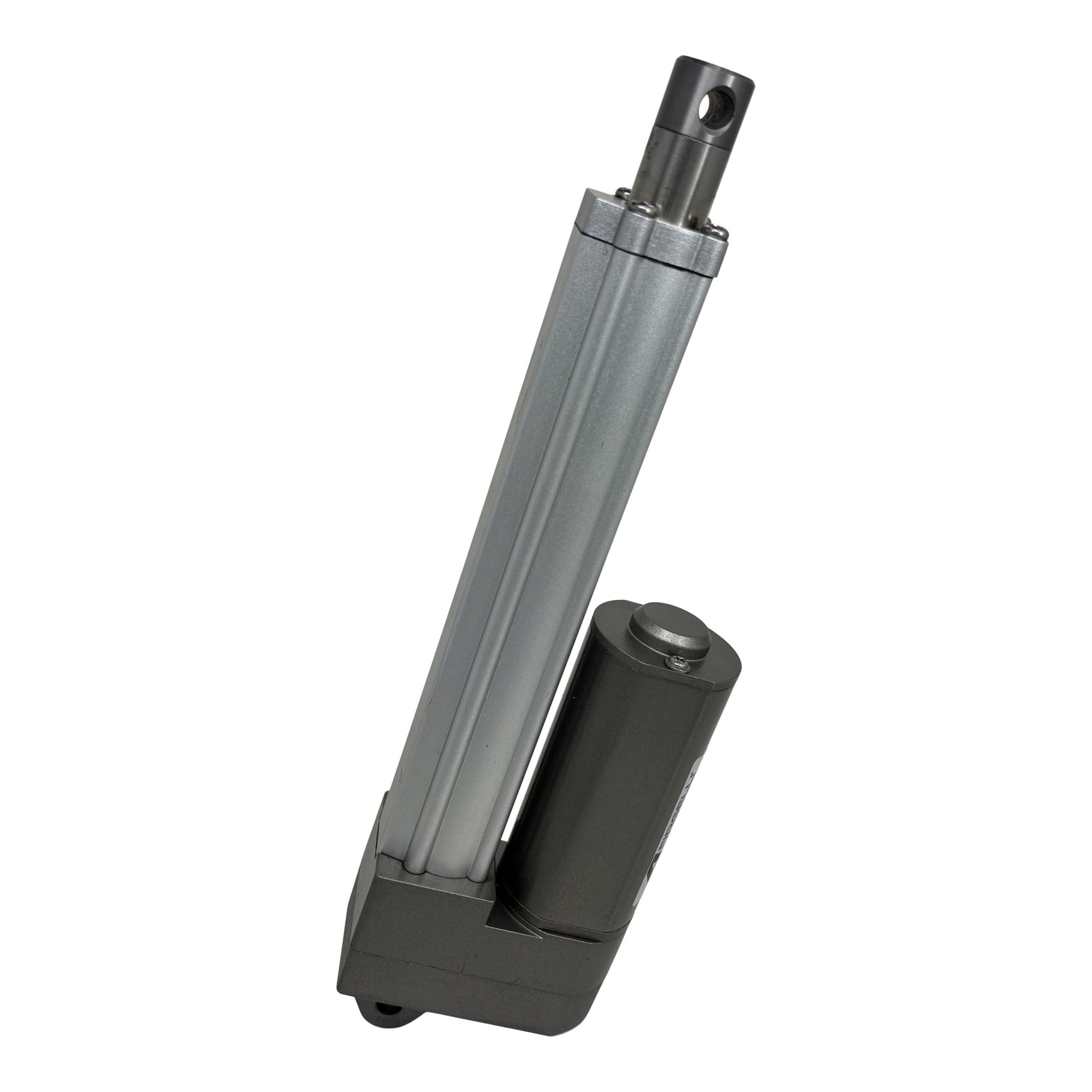

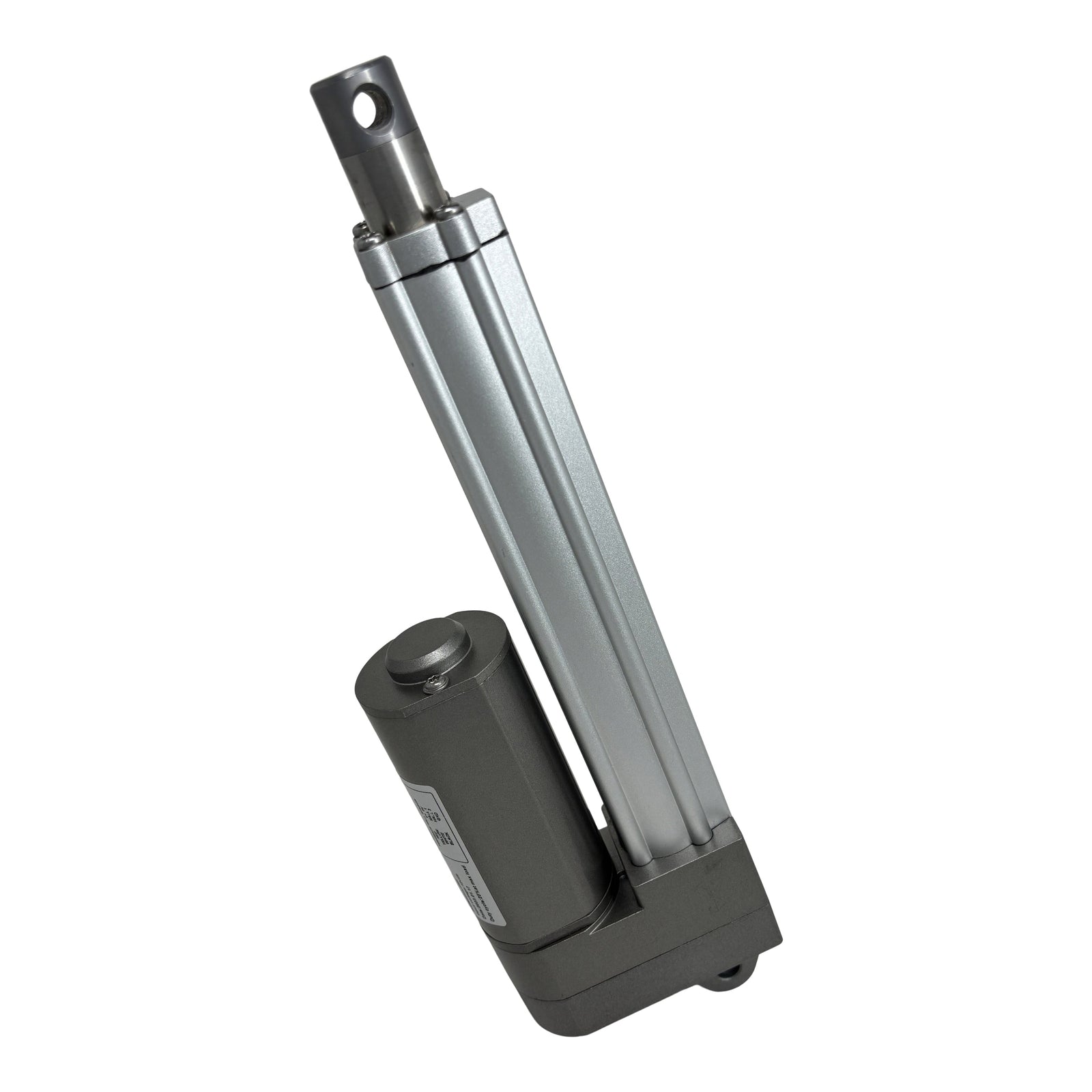

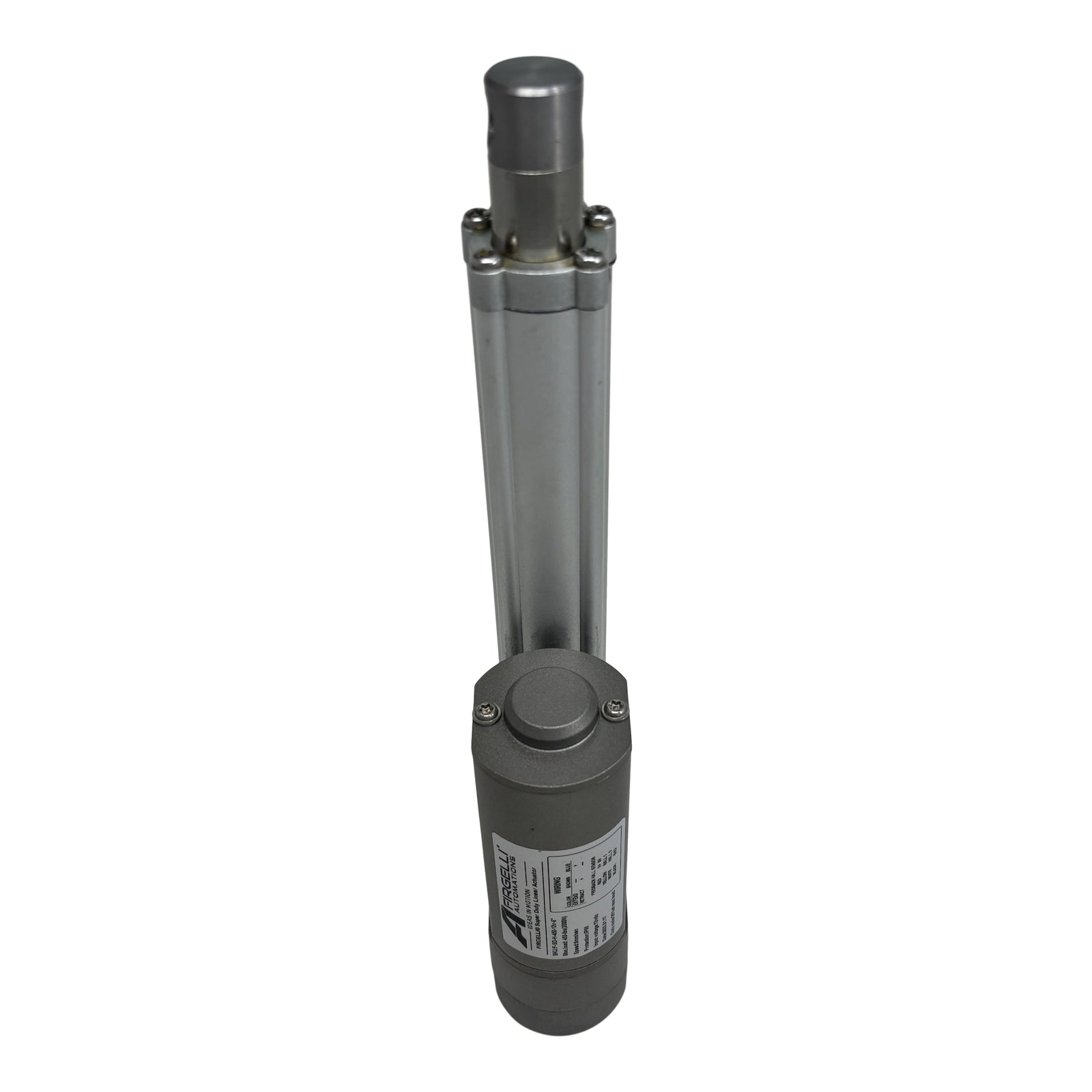

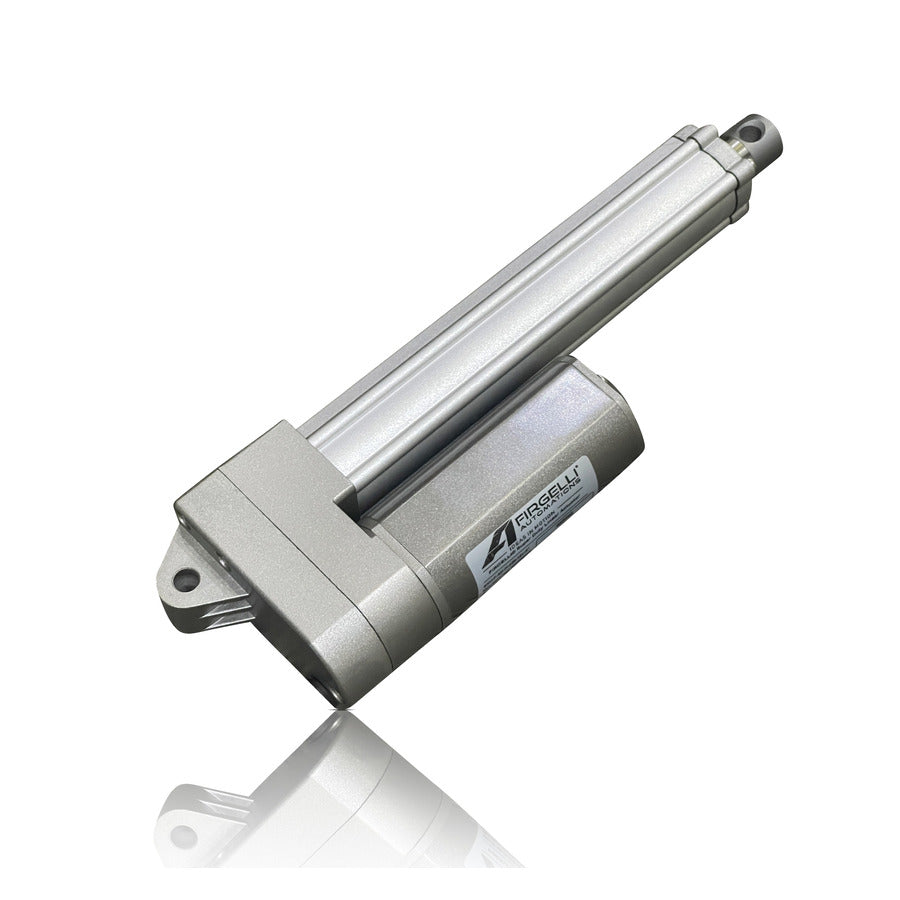

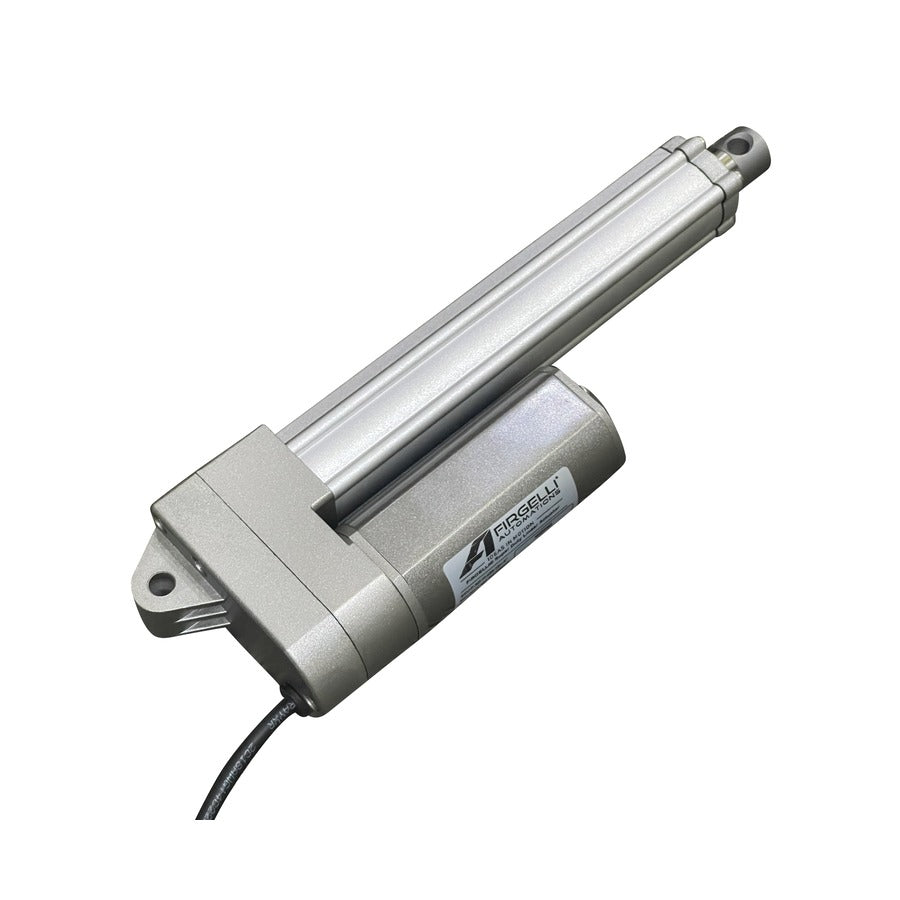

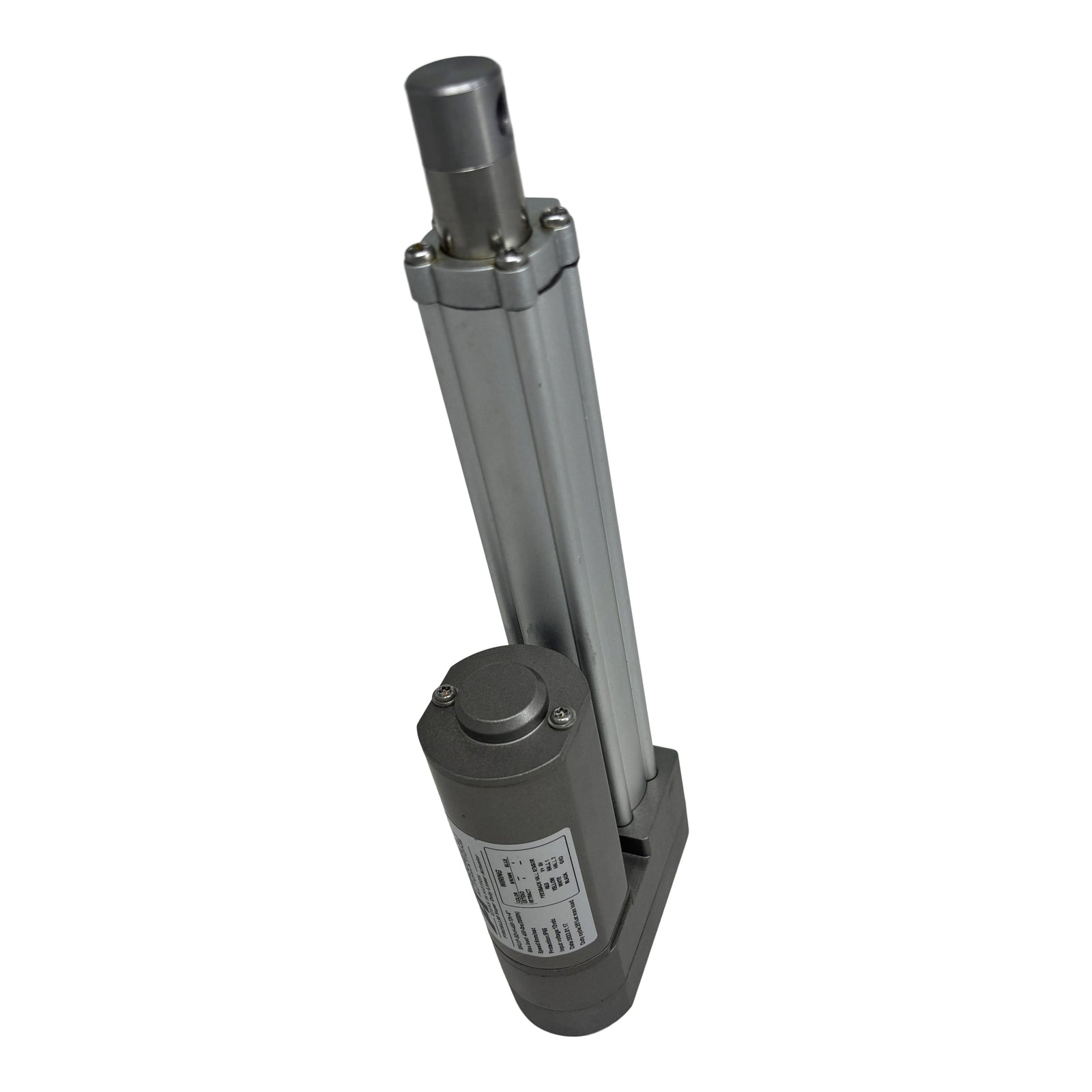

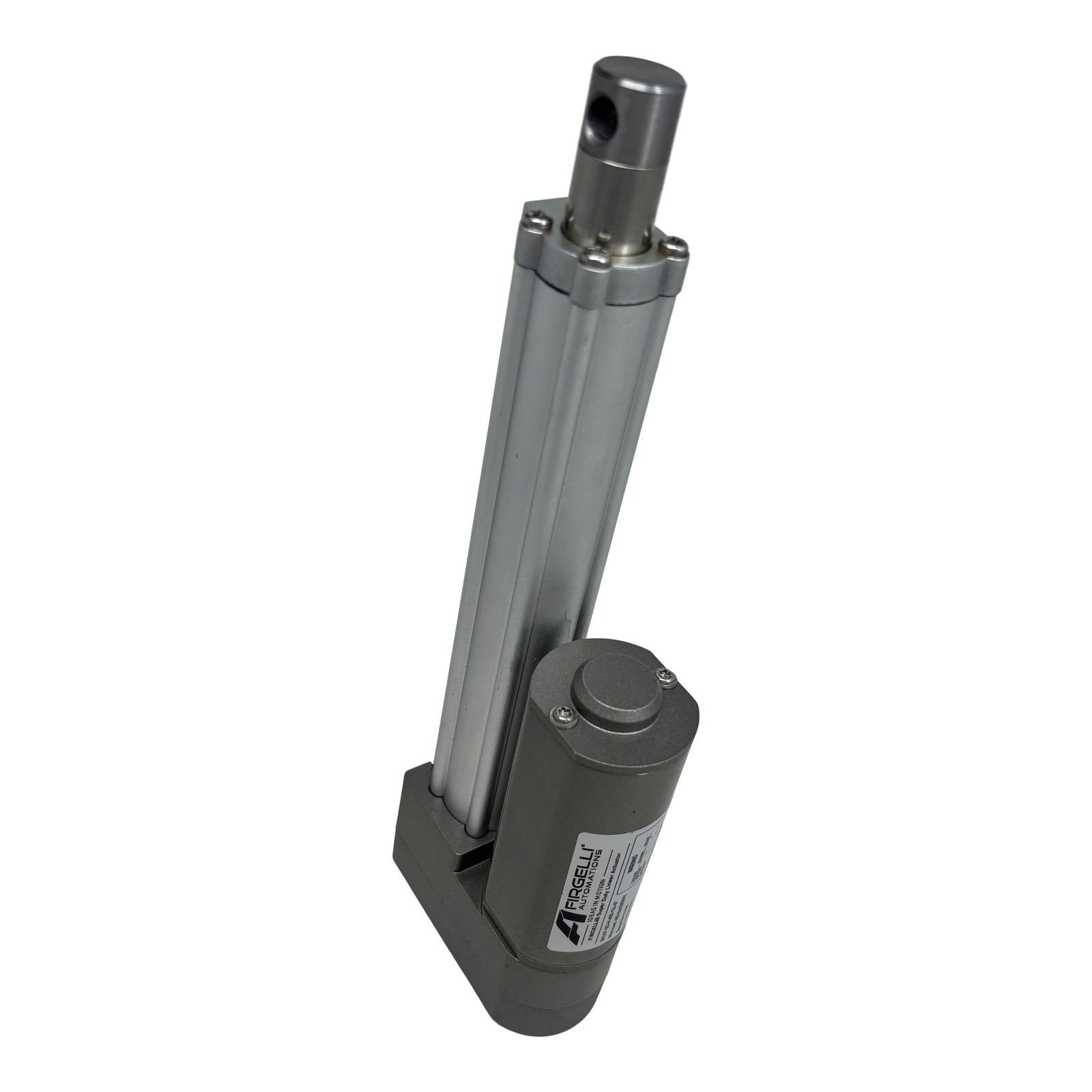

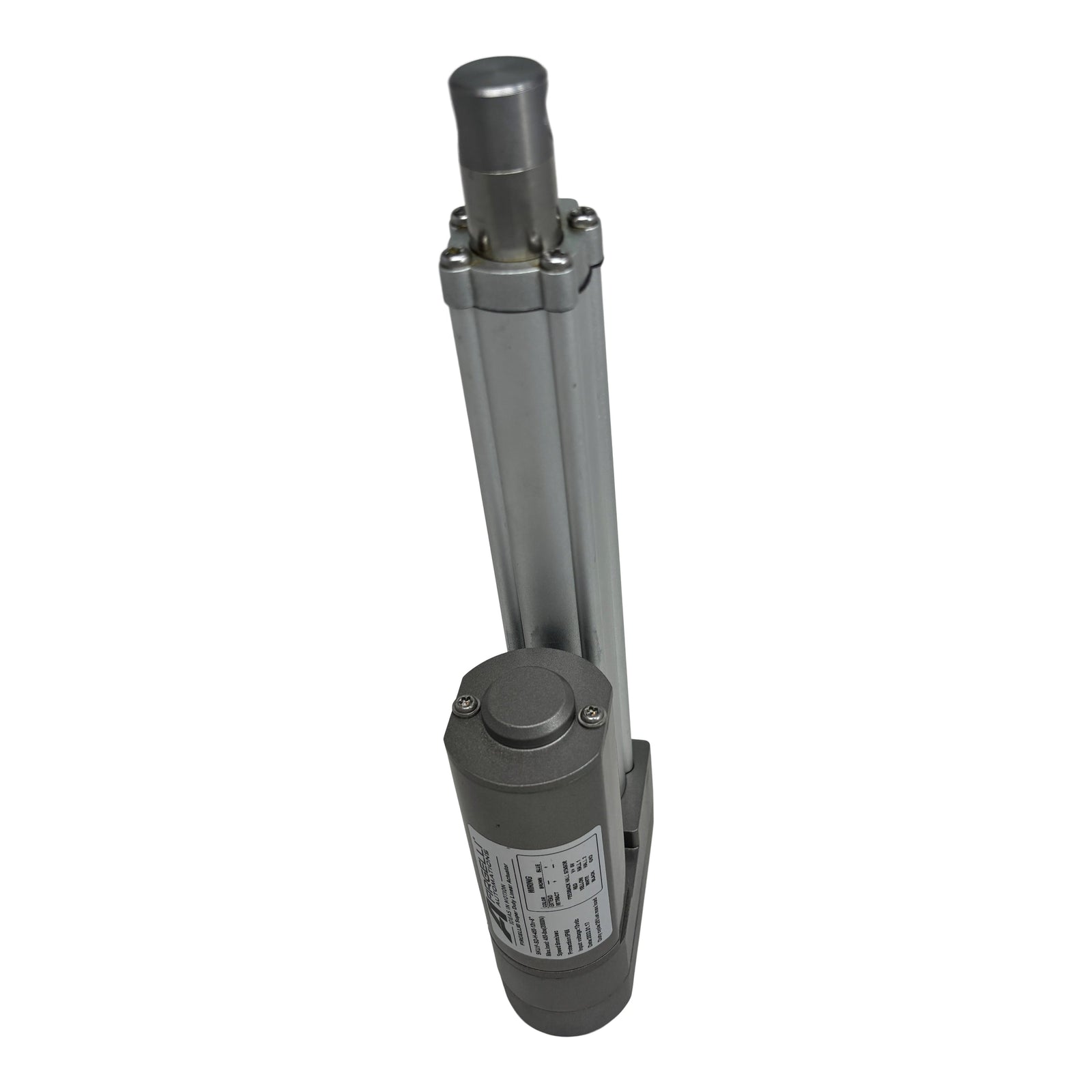

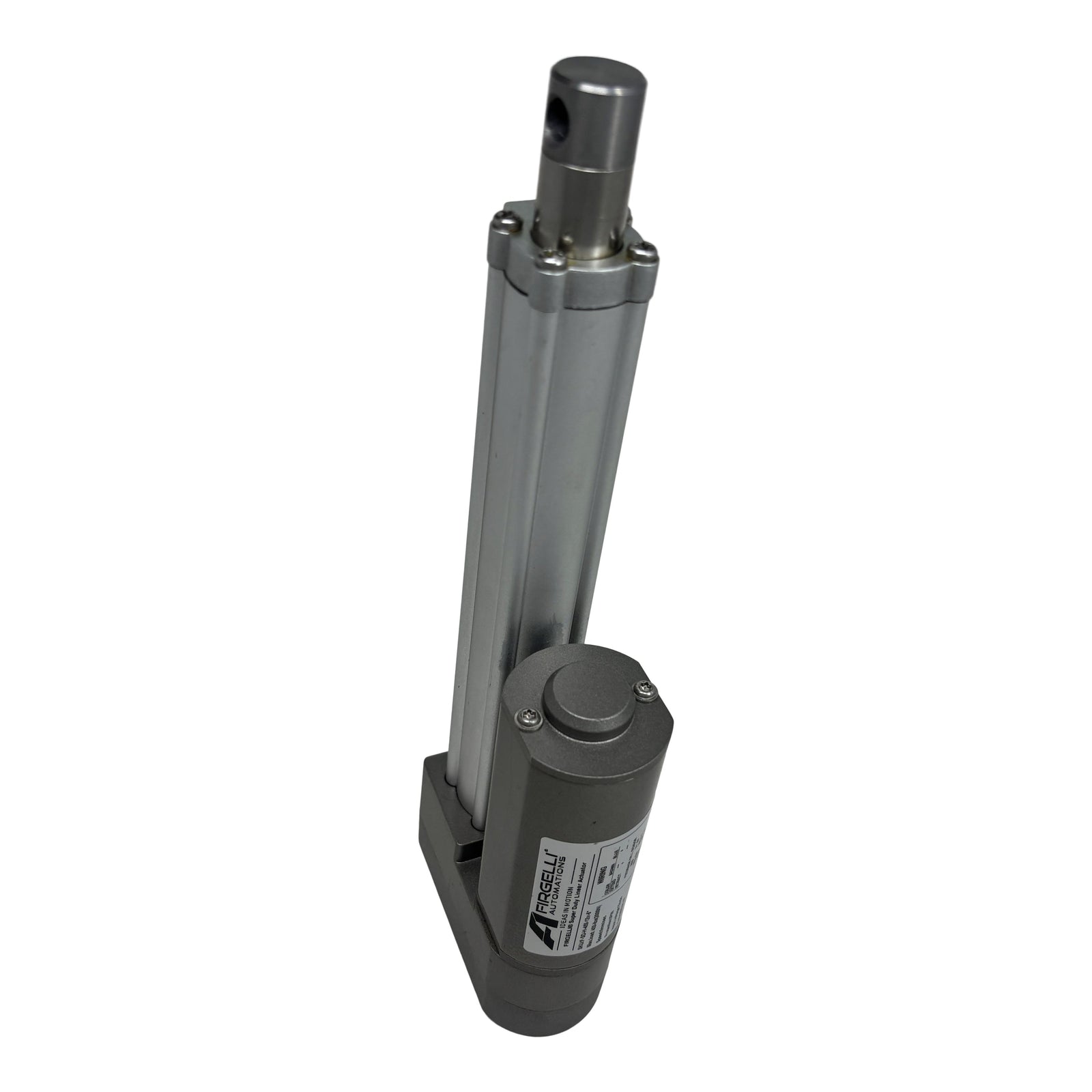

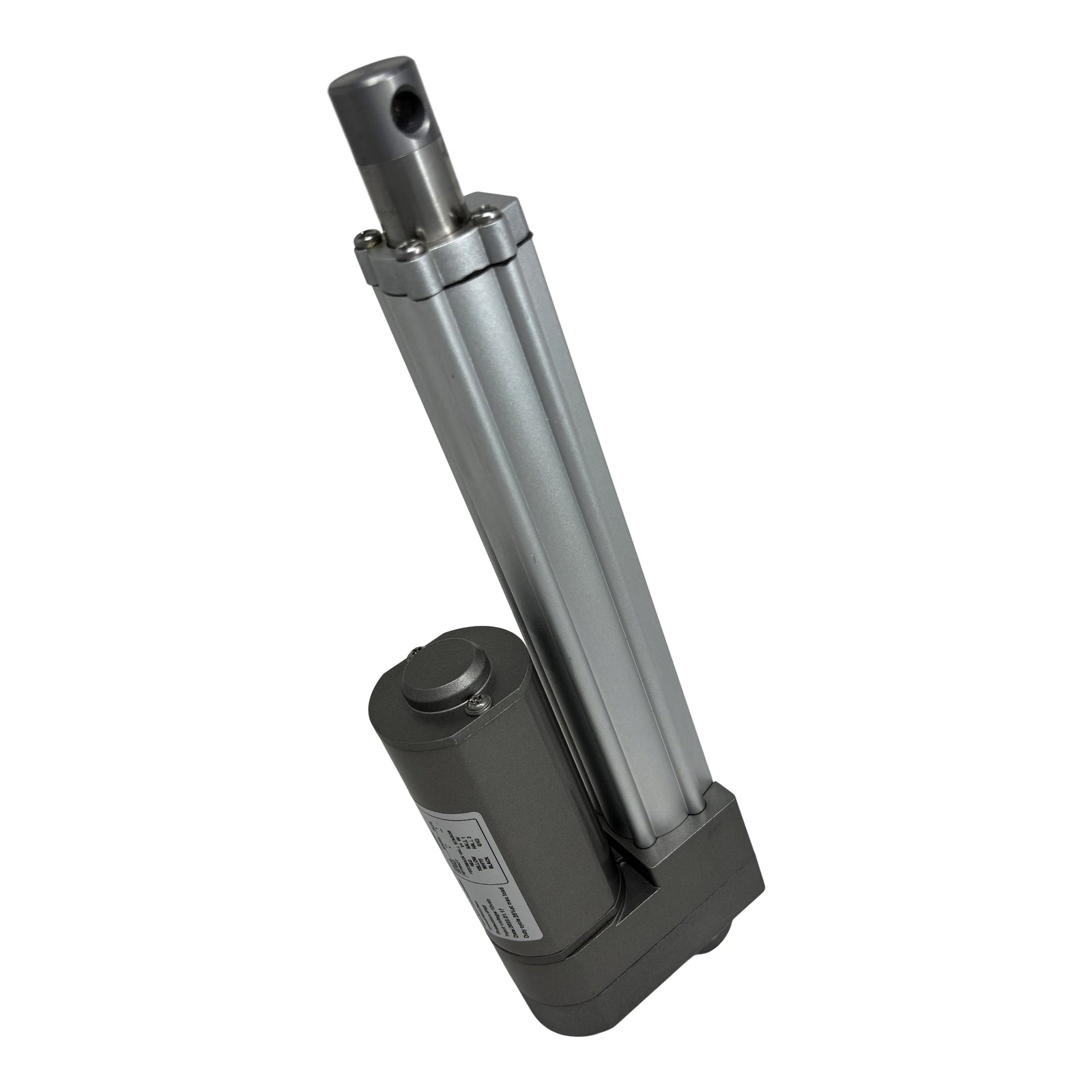

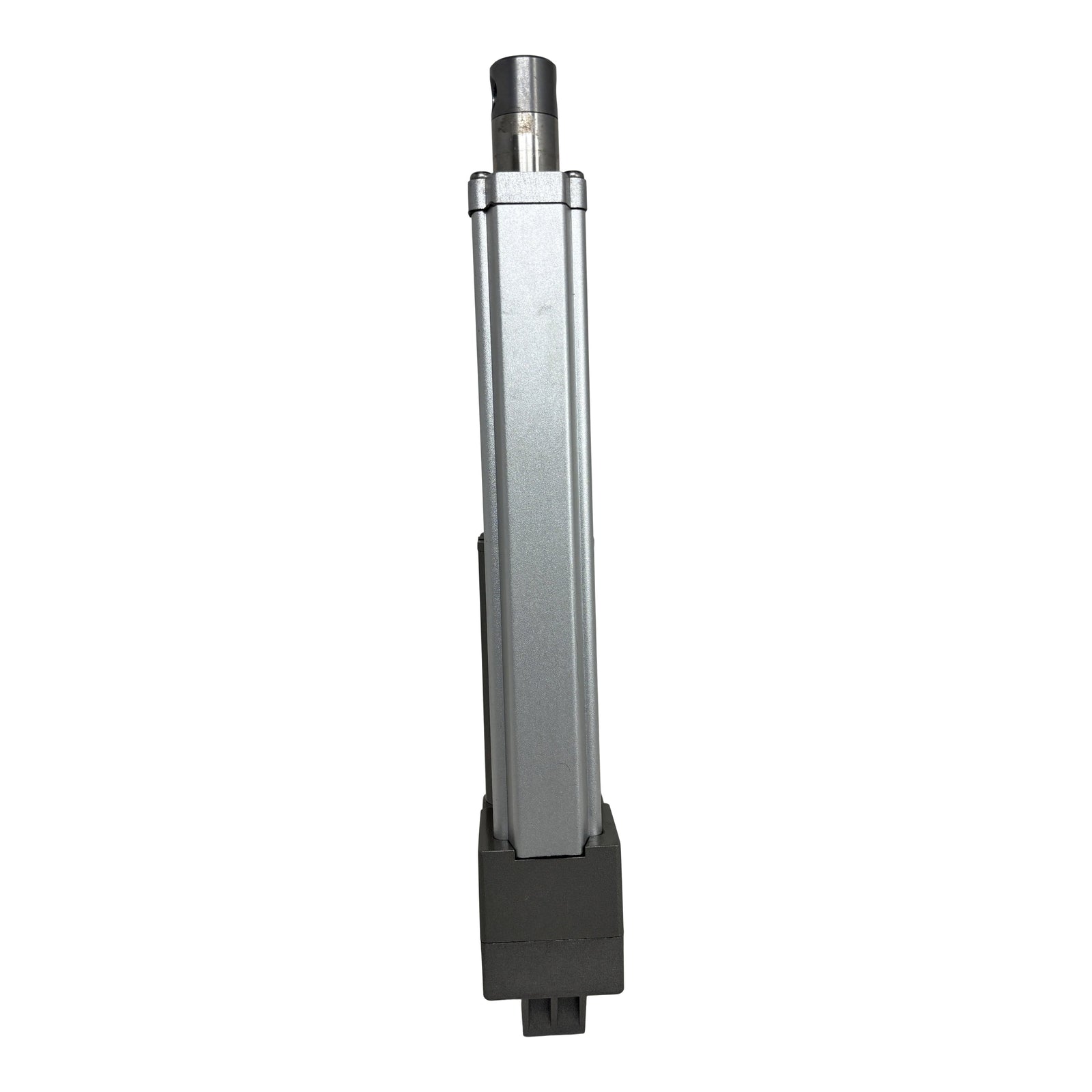

      Super Duty Linear Actuator – Rugged Performance, Quiet Operation, Optional Feedback

      The Super Duty Linear Actuator is designed for high-load applications, combining a durable, heavy-duty build with quiet, smooth operation. It features a worm gear drive mechanism, making it much quieter and significantly harder to back drive compared to standard linear actuators.

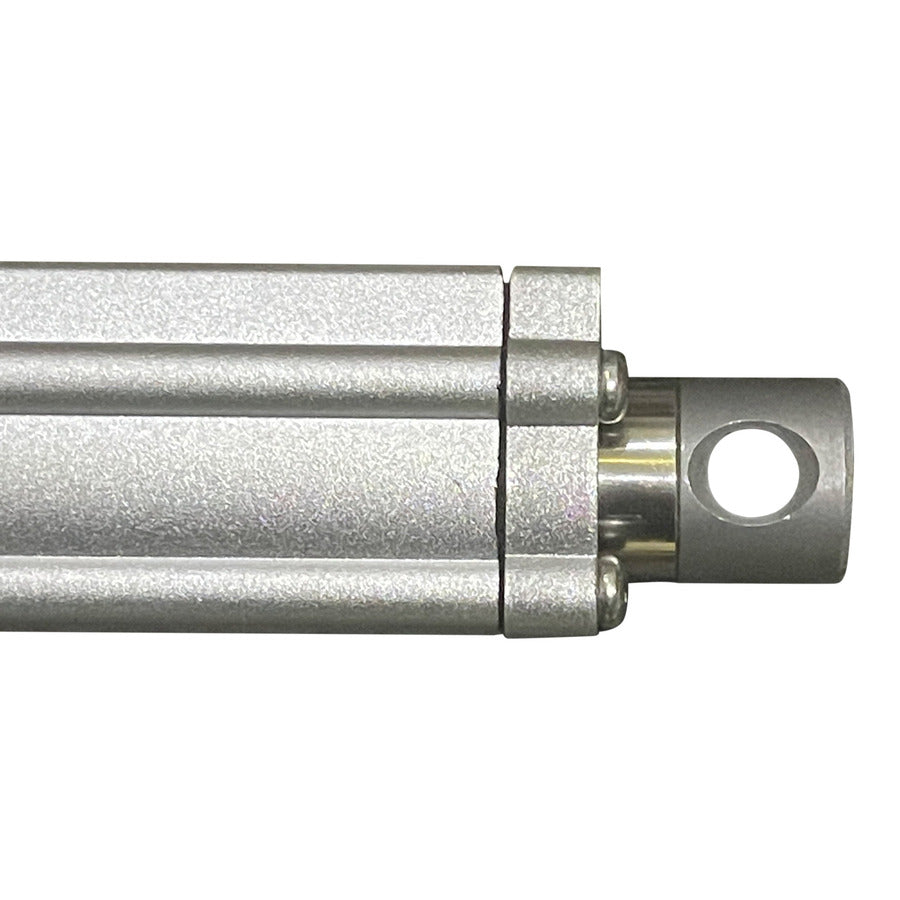

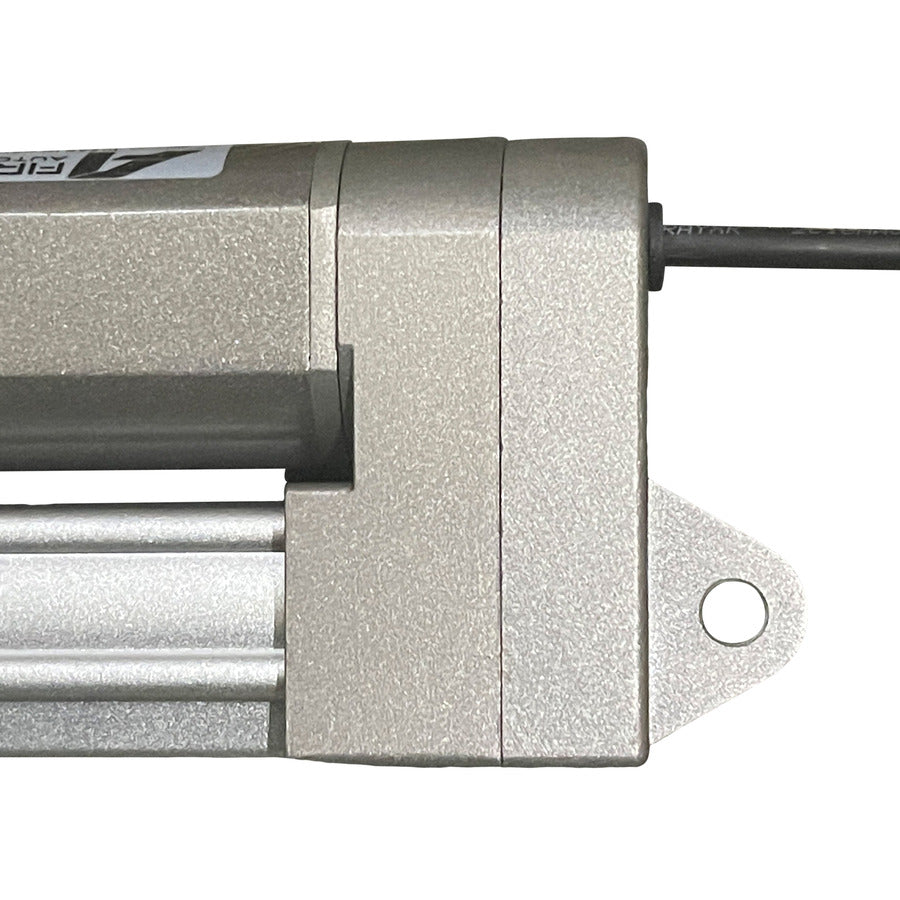

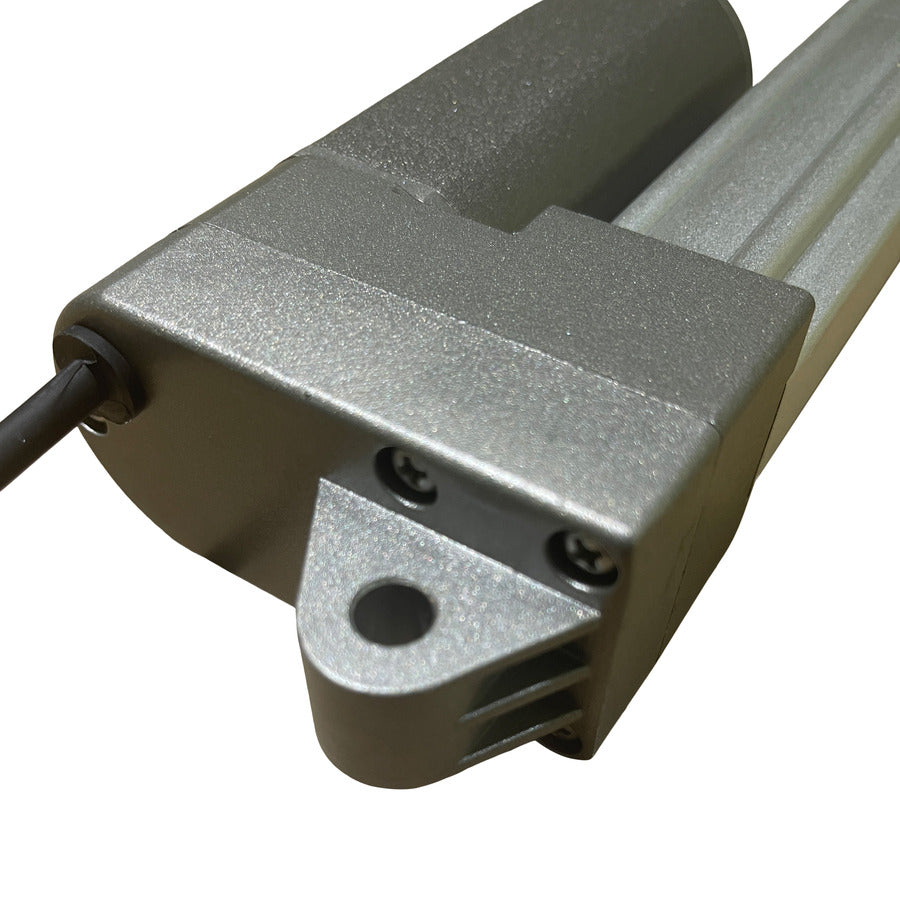

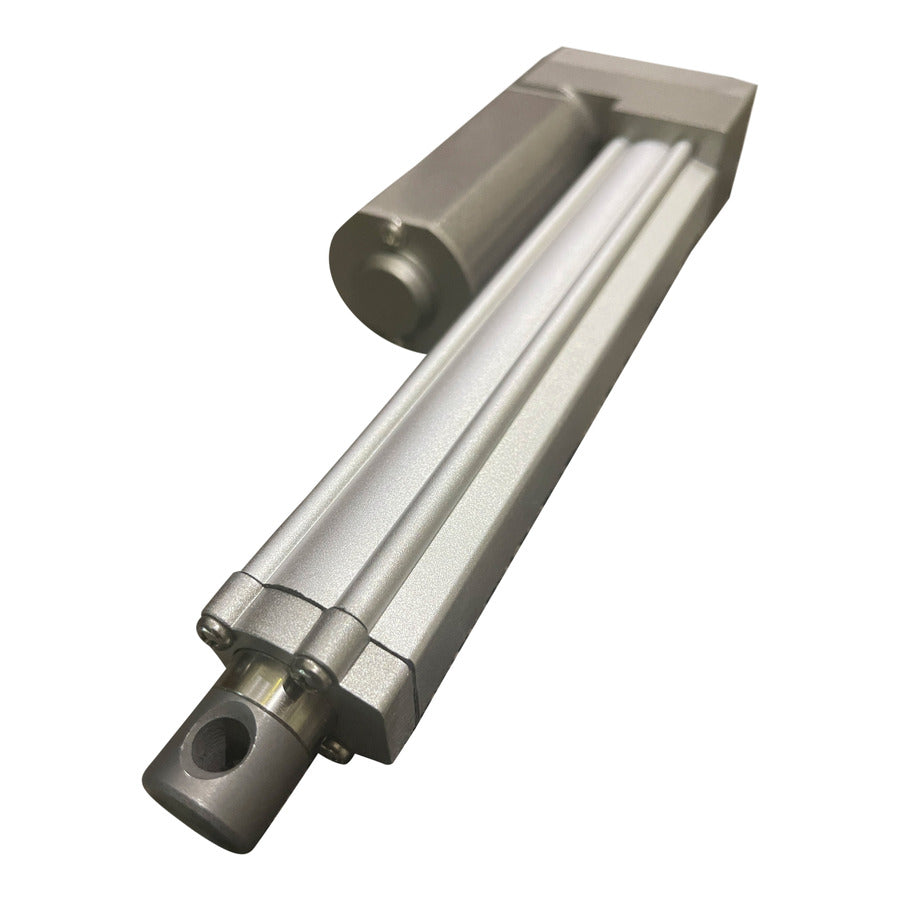

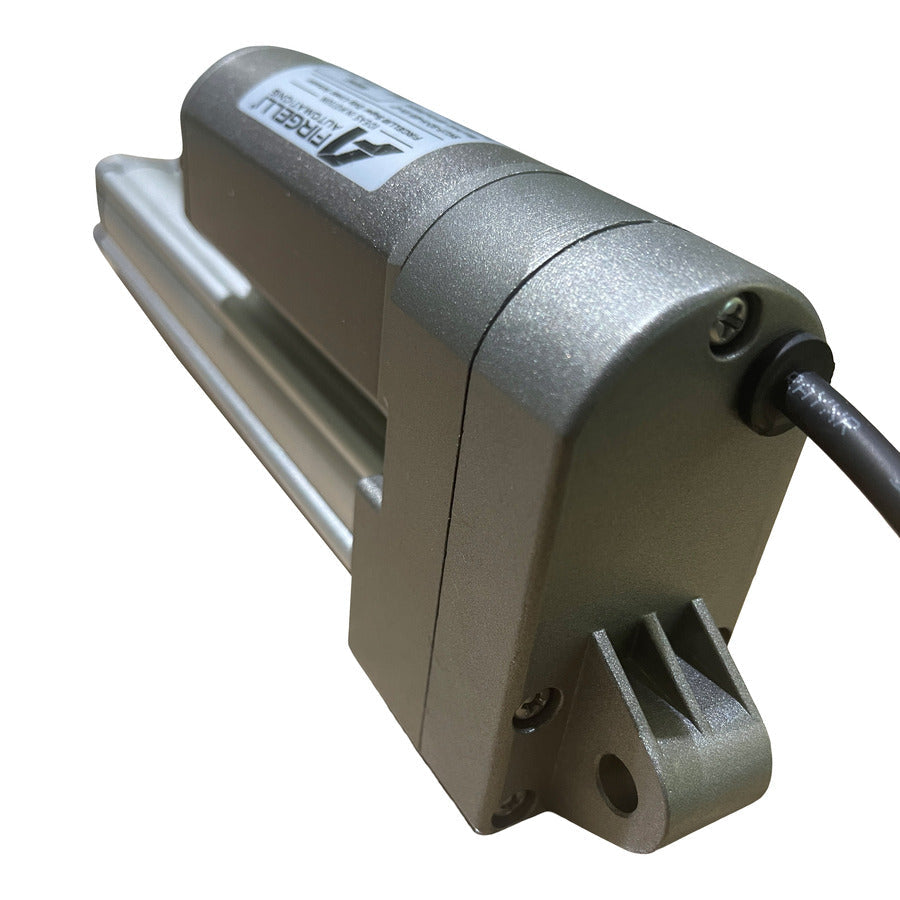

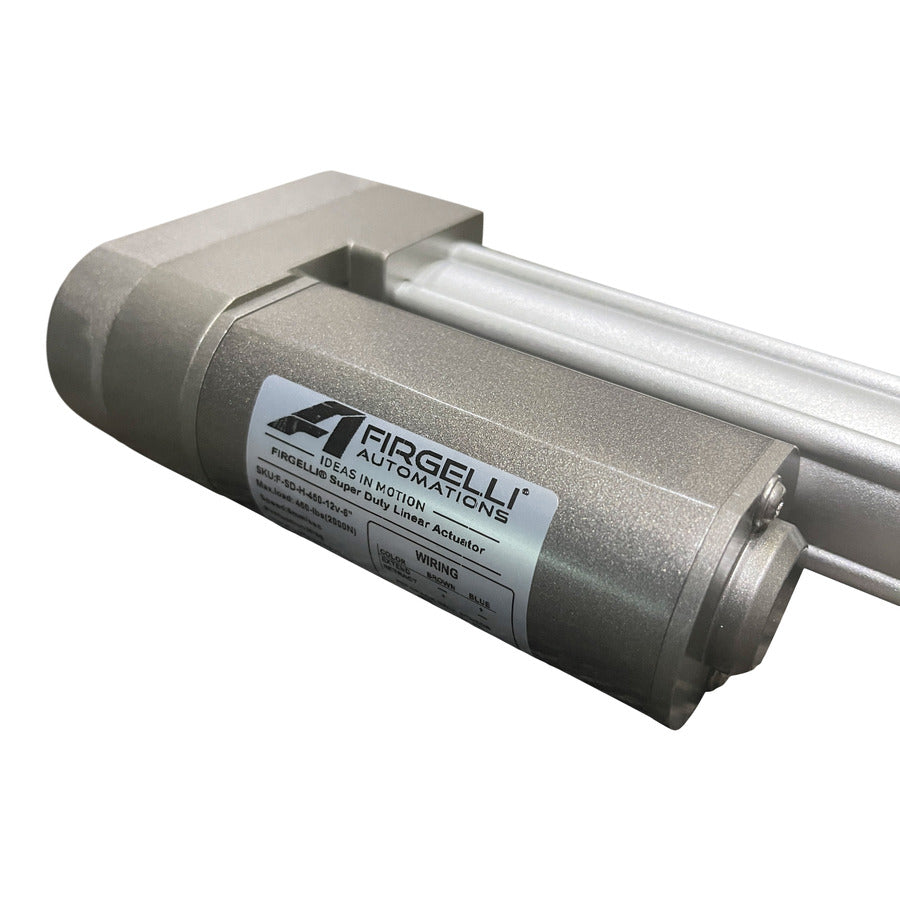

      Built from a thick aluminum housing with aluminum extension rods, this actuator is engineered to handle high forces in demanding environments. Integrated end-of-stroke limit switches automatically stop the actuator at its fully extended and retracted positions for safe, reliable operation.

      Each unit comes equipped with a 4-wire Hall Effect Sensor for accurate positional feedback, ideal for synchronized or closed-loop control systems. However, if feedback is not needed, the actuator can be operated with just the standard 2 power wires, offering flexibility for both advanced and basic applications.

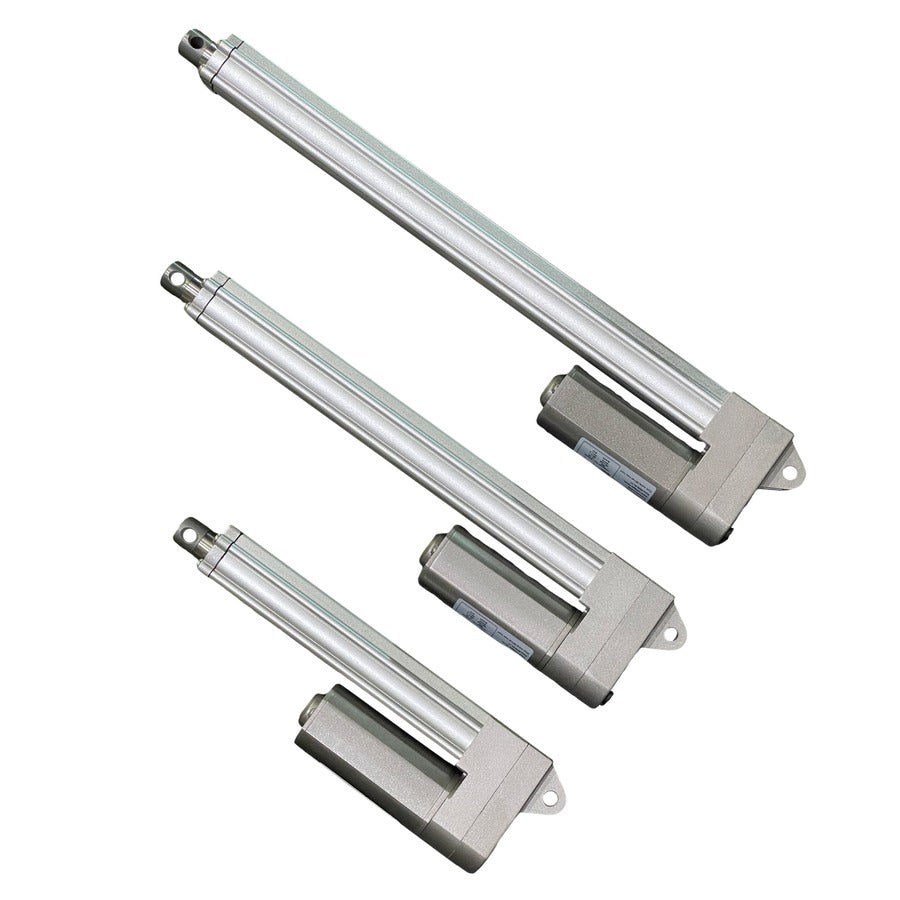

      Available in two force/speed configurations and stroke lengths from 2" to 40", in 2-inch increments, the Super Duty Actuator delivers performance and adaptability for a wide range of uses.

      We call it the "Super Duty" because it has it all: high strength, quiet operation, optional feedback, compact design, and customizable stroke lengths, perfect for your most demanding automation needs.

      Features and Benefits

      • ✔️ Works perfectly with Control board FCB-1 or FCB-2 for the ultimate in Actuator control

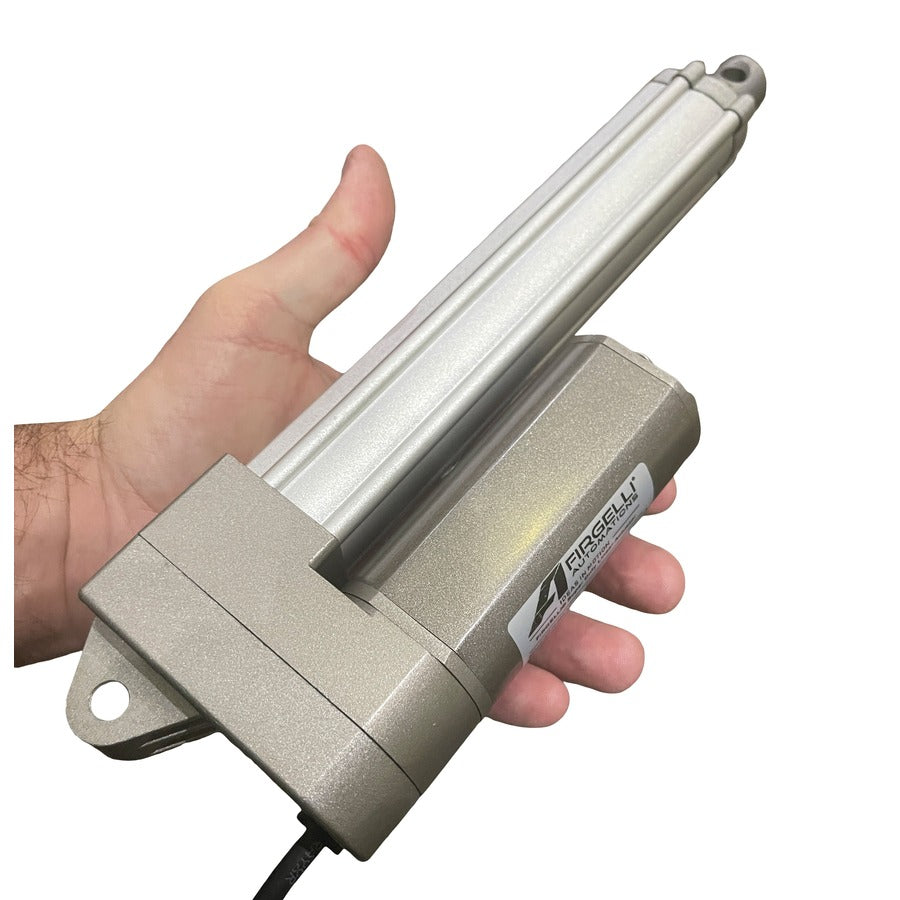

      • ✔️ Rugged compact design for universal hardy applications. These units are smaller than other actuators for the same force output
      • ✔️ Metal Alloy Casing, for any Super Duty usage, utilizing a completely sealed enclosure, ready to be deployed in any application.
      • ✔️ Internal limit switches automatically shut off the unit at the end of the stroke - This protects you and your equipment from possible damage.
      • ✔️ Worm gear drive system for quiet, smooth operation.
      • ✔️ 2" stroke increment range of stroke options up to 40" stroke, gives you more flexibility.
      • ✔️ Delivering force options from 220 to 450 lbs.
      • ✔️ Optional Hall sensor feedback built-in. If you want to use it, ignore if you don't need it. 4 wires for the Feedback are included on all these models (black, white, and red). Controller FCB-1 or FCB-2 to give you full actuator control options, including speed adjustment, limit switch adjusting, and timer function
      • ✔️ Actuator wiring is simple. 2x 18AWG wires (Brown & Blue) for the motor. Reversing polarity changes the direction of operation. 4x 20AWG wires (Red/Yellow/Black/White) for the sensor. (View any of the dimensional drawings for the wiring outputs)
      • ✔️ IP66 rated – this offers dustproof and water-resistant
      • ✔️ Variable Speed control - Use FCB-2 or FA-SC2 to have full control over speed - or Control board FCB-1
      • ✔️ Maintenance-free - Gives you more free time to do more important things
      • ✔️ Accessories sold separately include: Actuator Brackets - Remote Controls - Switches - Micro-Controllers - Power Supplies
      • ✔️ For help with wiring up a Linear Actuator to other devices such as remotes, controllers, multiple Actuators, etc. please use our Wiring Generator

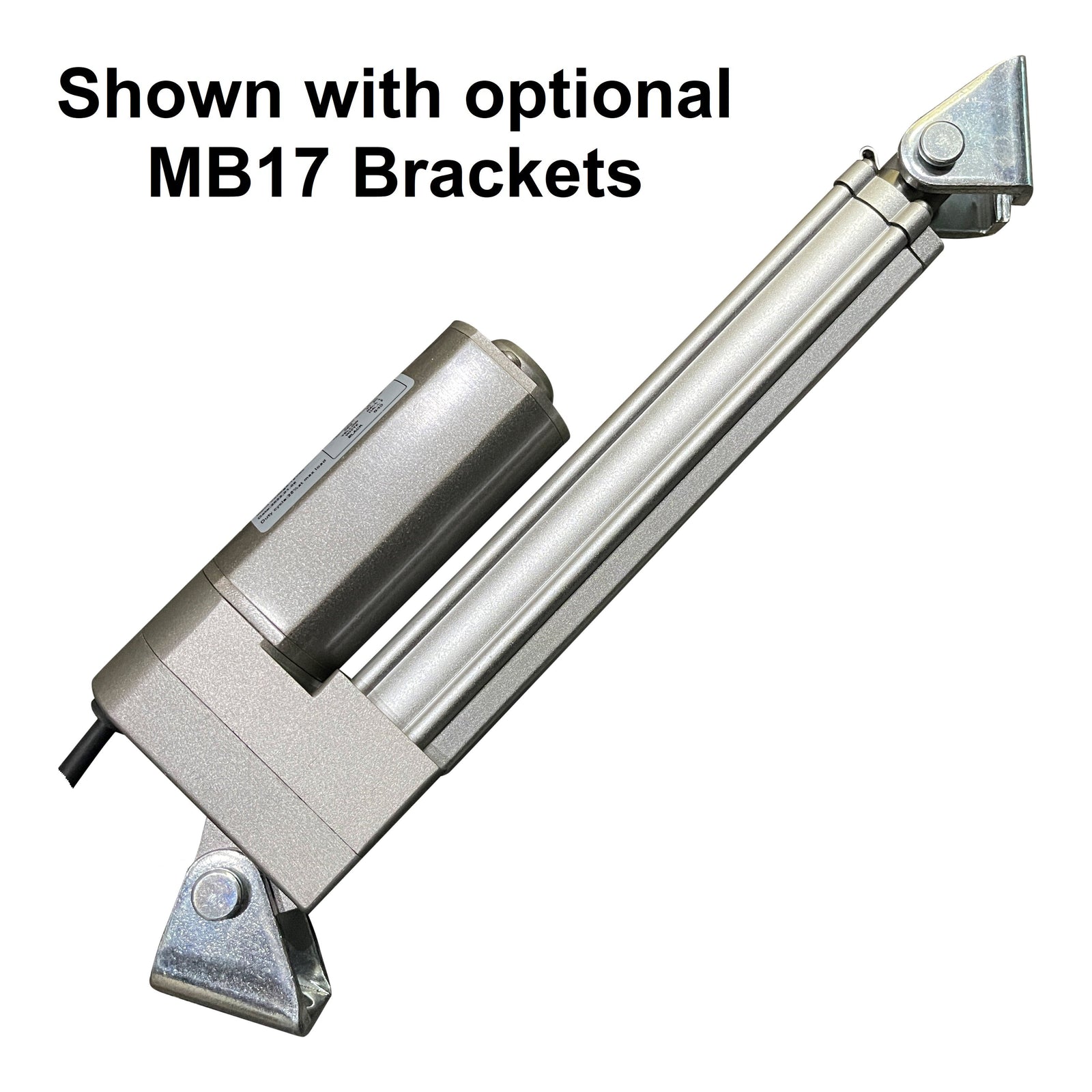

      • ✔️ Brackets: MB17, MB20 & MB21
      Specifications
      Model F-SD-H-220-12v-XX F-SD-H-450-12v-XX
      Dynamic Force 220 lbs. 450 lbs.
      Static Force 220 lbs. 450 lbs.
      Speed ("/S) No Load 15mm/sec (0.59") 6mm/sec (0.23")
      Max Draw 5.5 amps 5.5 amps
      Feedback Hall Sensor 4 Wires (20AWG)
      Feedback Voltage 5V
      Pulses (per wire) 17.4 pulses per mm of travel 41.1 pulses per mm
      Accuracy
      0.02mm
      Duty Cycle 25% at 100% load, 50% at 25% of load.
      Motor 12V DC 32:1 gear ratio, 4000 RPM
      IP Rating IP66
      Screw Type Worm Gear
      Sound Rating Quiet, only 50 dB
      Input 12v DC (24v DC optional, up to 6 months lead time)
      Gear Ratio 32:1 4000 RPM
      Clevis End 8.2mm diameter on each end
      Operational Temperature -40°C to 65°C (-40°F/150°)
      Limit Switches Built-in, non-adjustable. For an adjustable limit switch, check out our "Adjustable limit switch Actuator"
      Synchronous Capability Yes, with the following controllers FCB-1 or FCB-2 Sync Control Board or a Microcontroller
      Safety Certifications CE
      Bracket(s) MB17 (Clevis), MB20, MB21 (Body)


      F-SD-H-220-12v-xx
      Stroke  Retracted Length Extended Length Weight (lbs) STEP file Drawing
      2" 6.413" (166mm)
      8.413" (217mm)
      2.8
      F-SD-H-220-12v-2 F-SD-H-220-12v-2
      4" 8.543" (217mm)
      12.543" (321mm) 3.1 F-SD-H-220-12v-4 F-SD-H-220-12v-4
      6" 10.551" (268mm)
       16.551" (421mm) 3.3 F-SD-H-220-12v-6 F-SD-H-220-12v-6
      8" 12.559" (319mm)
      20.559" (523mm)
      3.4 F-SD-H-220-12v-8 F-SD-H-220-12v-8
      10" 14.528" (369mm)
      24.528" (623mm)
      3.6
      F-SD-H-220-12v-10 F-SD-H-220-12v-10
      12" 17.717" (450mm)
      29.717" (755mm)
      3.8
      F-SD-H-220-12v-12 F-SD-H-220-12v-12
      14" 19.724" (501mm) 33.724" (857mm) 4 F-SD-H-220-12v-14 F-SD-H-220-12v-14
      16" 21.732" (552mm) 37.732" (959mm) 4.2 F-SD-H-220-12v-16 F-SD-H-220-12v-16
      18" 23.74" (603mm) 41.74" (1061mm) 4.4 F-SD-H-220-12v-18 F-SD-H-220-12v-18
      20" 26.89" (683mm) 46.89" (1191mm) 4.7 F-SD-H-220-12v-20 F-SD-H-220-12v-20
      22" 28.898" (734mm) 50.898" (1293mm) 4.8 F-SD-H-220-12v-22 F-SD-H-220-12v-22
      24" 30.906" (785mm) 54.906" (1395mm) 5.0 F-SD-H-220-12v-24 F-SD-H-220-12v-24
      30" 36.89" (937mm) 66.89" (1699mm) 6.0 F-SD-H-220-12V-30 F-SD-H-220-12V-30
      35" 41.89" (1064mm) 76.89" (1953mm) 6.5 F-SD-H-220-12V-35 F-SD-H-220-12V-35
      40" 46.89" (1191mm) 86.89" (2207mm) 7.0 F-SD-H-220-12V-40 F-SD-H-220-12V-40
      F-SD-H-450-12v-xx
      2" 6.413" (166mm) 8.413" (217mm) 2.8 F-SD-H-450-12v-2 F-SD-H-450-12v-2
      4" 8.543" (217mm) 12.543" (321mm) 3.1 F-SD-H-450-12v-4 F-SD-H-450-12v-4
      6" 10.551" (268mm) 16.551" (421mm) 3.3 F-SD-H-450-12v-6 F-SD-H-450-12v-6
      8" 12.559" (319mm) 20.559" (523mm) 3.4 F-SD-H-450-12v-8 F-SD-H-450-12v-8
      10" 14.528" (369mm) 24.528" (623mm) 3.6 F-SD-H-450-12v-10 F-SD-H-450-12v-10
      12" 17.717" (450mm) 29.717" (755mm) 3.8 F-SD-H-450-12v-12 F-SD-H-450-12v-12
      14" 19.724" (501mm) 33.724" (857mm) 4 F-SD-H-450-12v-14 F-SD-H-450-12v-14
      16" 21.732" (552mm) 37.732" (959mm) 4.2 F-SD-H-450-12v-16 F-SD-H-450-12v-16
      18" 23.74" (603mm) 41.74" (1061mm) 4.4 F-SD-H-450-12v-18 F-SD-H-450-12v-18
      20" 26.89" (683mm) 46.89" (1191mm) 4.6 F-SD-H-450-12v-20 F-SD-H-450-12v-20
      22" 28.898" (734mm) 50.898" (1293mm) 4.8 F-SD-H-450-12v-22 F-SD-H-450-12v-22
      24"
      30.906" (785mm) 54.906" (1395mm) 5 F-SD-H-450-12v-24 F-SD-H-450-12v-24
      30" 36.89" (937mm) 66.89" (1699mm) 6 F-SD-H-450-12V-30 F-SD-H-450-12V-30
      35" 41.89" (1064mm) 76.89" (1953mm) 6.5 F-SD-H-450-12V-35 F-SD-H-450-12V-35
      40" 46.89" (1191mm) 86.89" (2207mm) 7 F-SD-H-450-12V-40 F-SD-H-450-12V-40
      Speed and Load curves

      12v Charts




      Actuator Dimensions

      Click on each image to get the PDF dimensions sheet. All SKU's are below.  First all 220-lbs force models then the 450lbs models.

      F-SD-H-220-12v-2"

      Super duty actuator dimensions with a 2 inch stroke

       F-SD-H-220-12v-4"

      Super Duty Actuator with 4 inch stroke

       F-SD-H-220-12v-6"

      Super Duty Actuators

       F-SD-H-220-12v-8"

      Super Duty Actuator with 8 inch stroke

       F-SD-H-220-12v-10"

      Super Duty Actuator with 10 inch stroke

       F-SD-H-220-12v-12"

      Super Duty Actuator with 12 inch stroke

       F-SD-H-220-12v-14"

      Super Duty Actuator with 14 inch stroke

       F-SD-H-220-12v-16"

      Super Duty Actuator with 16 inch stroke

       F-SD-H-220-12v-18"

      Super Duty Actuator with 18 inch stroke

       F-SD-H-220-12v-20"

      Super Duty Actuator with 20 inch stroke

      F-SD-H-220-12v-22"

      Super Duty Actuator with 22 inch stroke

      F-SD-H-220-12v-24"

      Super Duty Actuator with 24 inch stroke

      F-SD-H-220-12v-30"

      Super Duty Actuator with 30 inch stroke

      F-SD-H-220-12v-35"

      Super Duty Actuator with 35 inch stroke

      F-SD-H-220-12v-40"

      Super Duty Actuator with 40 inch stroke

      F-SD-H-450-12v-2"

      Super Duty Actuator with 10 inch stroke

      F-SD-H-450-12v-4"

      Super Duty Actuator with 10 inch stroke

      F-SD-H-450-12v-6"

       Super Duty Actuator with 6 inch stroke

      F-SD-H-450-12v-8"

       Super Duty Actuator with 8 inch stroke

      F-SD-H-450-12v-10"

       Super Duty Actuator with 10 inch stroke

      F-SD-H-450-12v-12"

       Super Duty Actuator with 12 inch stroke

      F-SD-H-450-12v-14"

       Super Duty Actuator with 10 inch stroke

      F-SD-H-450-12v-16"

       Super Duty Actuator with 16 inch stroke

      F-SD-H-450-12v-18"

       Super Duty Actuator with 18 inch stroke

      F-SD-H-450-12v-20"

       Super Duty Actuator with 20 inch stroke

      F-SD-H-450-12v-22"

       Super Duty Actuator with 22 inch stroke

      F-SD-H-450-12v-24"

       Super Duty Actuator with 24 inch stroke

      F-SD-H-450-12v-30"

       Super Duty Actuator with 30 inch stroke

      F-SD-H-450-12v-35"

       Super Duty Actuator with 35 inch stroke

      F-SD-H-450-12v-40"

       Super Duty Actuator with 40 inch stroke

      3D Model Downloads (.STEP)

      Same files apply to all Force models

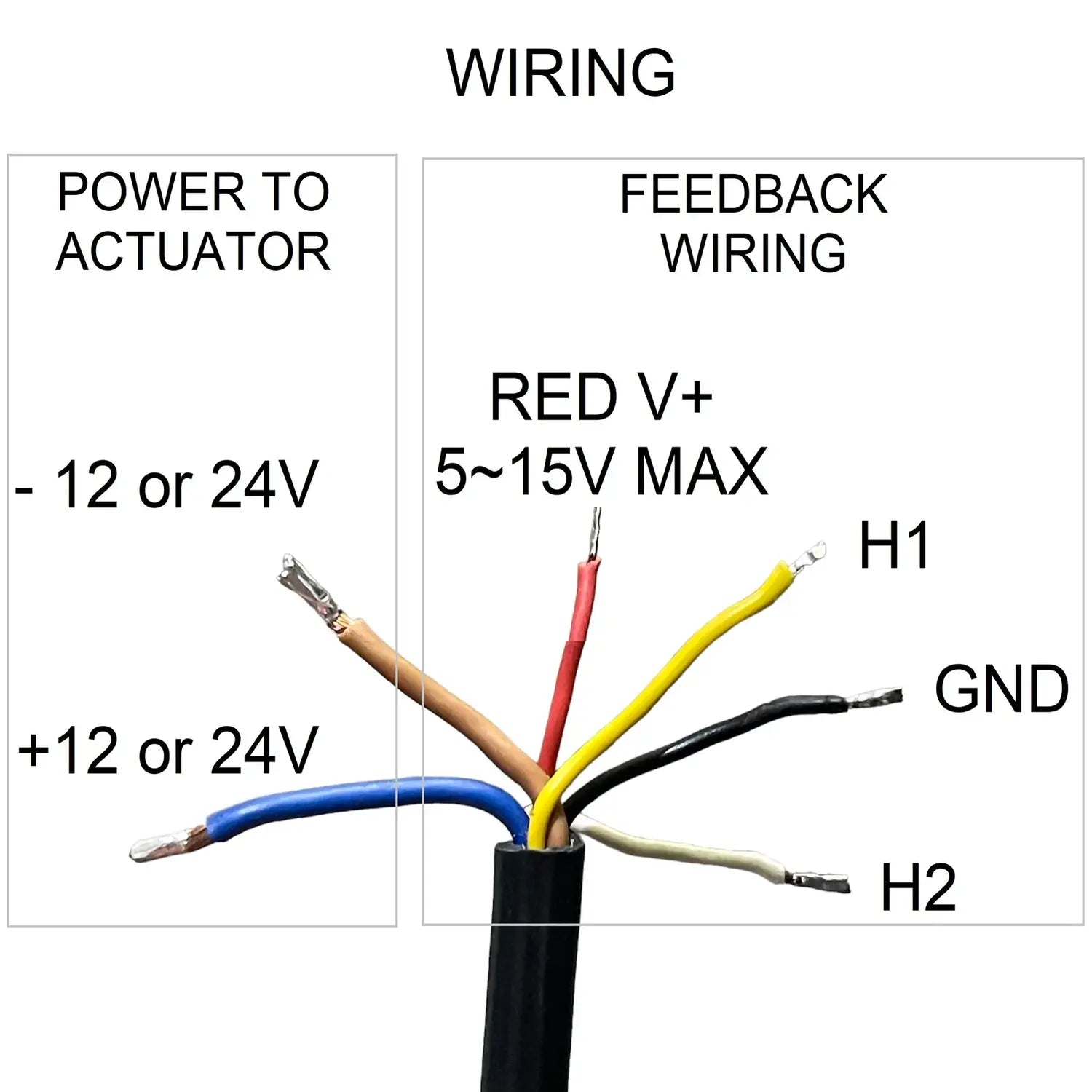

      Wiring Diagram

      Super Duty Actuators wiring


      Product Video

      super duty actuator video thumbnail

      Compatible Brackets
