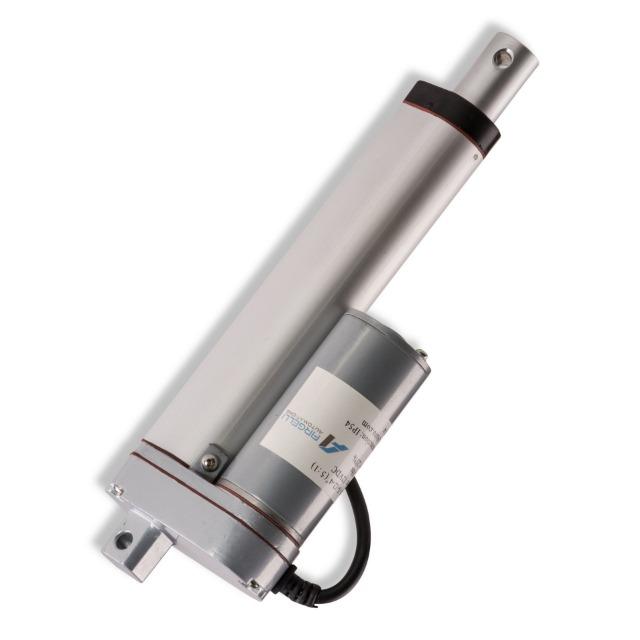

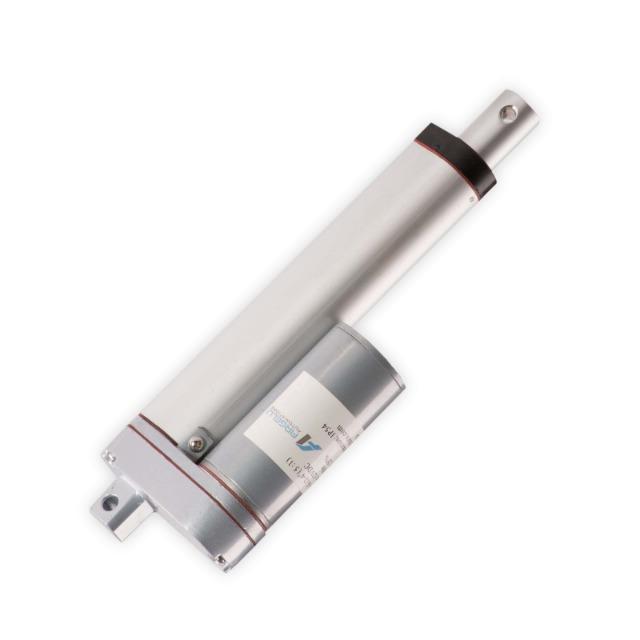

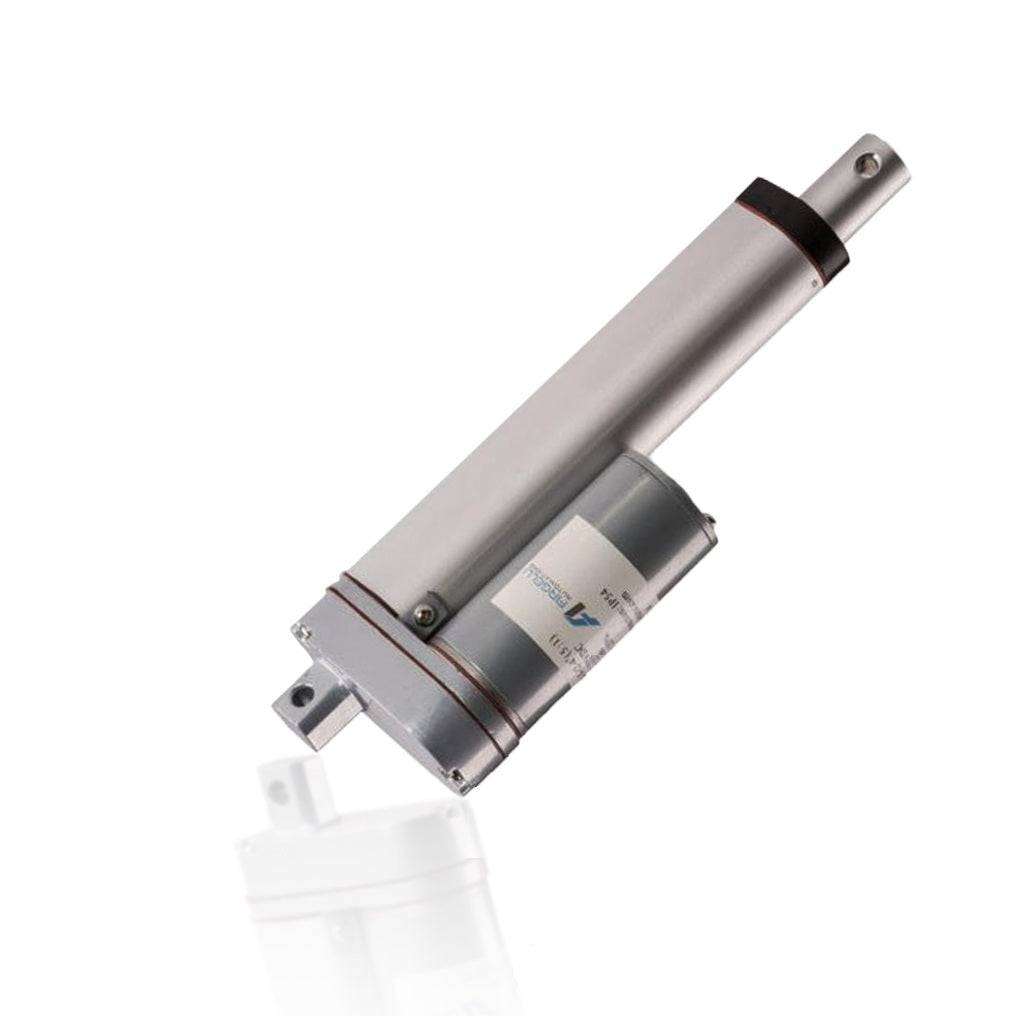

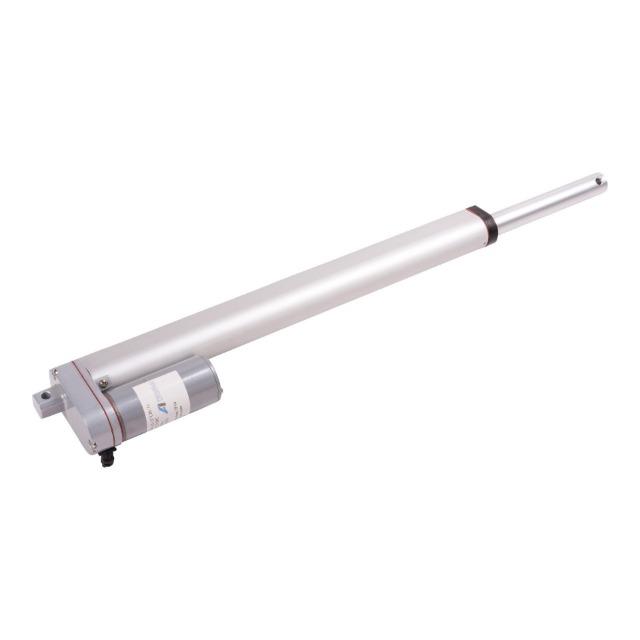

      Motorize your idea's with the FIRGELLI Classic Rod linear actuator. Lift, slide, push, or rotate another object as the piston extends and retracts to exert the force needed for your automation project.

      Versatility

      These classic linear actuators come in nine strsoke lengths: 1-inch, 2-inch, 3-inch, 4-inch, 6-inch, 9-inch, 12-inch, 18-inch, and 24-inch, letting you choose the right size for any build. They also have maximum load capacities of 35 lbs, 150 lbs, and 200 lbs for each stroke length, so neither weight nor distance will be too great for your device. All models are compatible with 12V input sources or 24V.

      Durability

      Manufactured with longevity in mind, our classic linear actuators are built to last. All structural components are made from aerospace-grade aluminum for lightweight yet rugged performance, and the IP54 rating lets you trust that your unit will be dust and splash-resistant enough to withstand the elements. For added safety, internal limit switches deactivate the unit once the arm has reached maximum extension/retraction, protecting the device and your build.

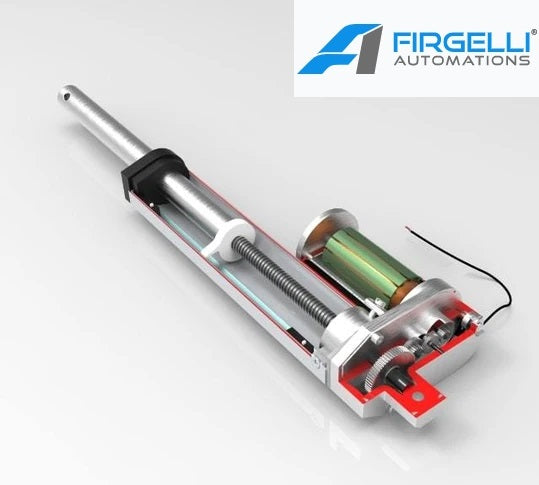

      3D CAD models of this actuator can be found under the 3D model tab or Resources/3D Files. For further information review the specifications and technical drawings down below or visit our Tutorials page for instructions on how to use these actuators with switches, remotes, speed controllers, and Arduino or other Micro-controllers.

      Standard Features and Benefits

      • Speed range: 0.3"/sec-2.0"/sec
      • CE and RoHS certified
      • Screw type: ACME
      • Operating temperature range: -26°C/65°C (-15°F/150°)
      • Wire length: 1.5 feet
      • Compatible with multiple remote controls, switches, and micro-controllers
      • Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies

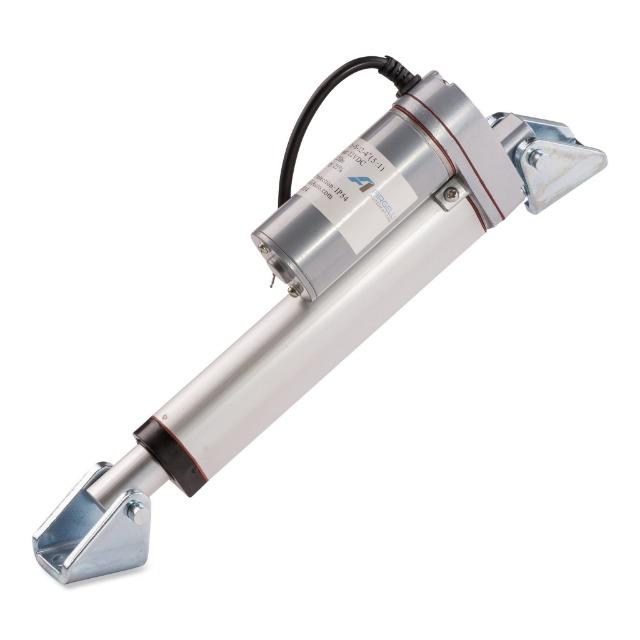

      Brackets

      Precision-engineered for consistent, accurate performance, FIRGELLI's Classic Rod Linear Actuators are designed with the user in mind. Varying stroke length,  force limit, and voltage compatibility let you choose the best configuration for your automation project, and the toughness and simplicity of each component make for a reliable subsystem that can meet the demands placed upon it. Why choose anything else?

          Specifications
          Model FA-35-S-12-XX FA-150-S-12-XX FA-240-S-12-XX
          Dynamic Force 35 lb 150 lb 200 lb
          Static Force 70 lb 300 lb 400 lb
          Speed ("/S) 2" .5 .3
          Gear Ratio 5:1 20:1 30:1
          Duty Cycle 20%
          IP Rating 54
          Screw Type ACME
          Input 12v DC
          Max Draw 5 A / 3 A for 24V
          Clevis End Diameter 0.25" (6.35mm)
          Operational Temperature -26°C/65°C (-15°F/150°)
          Limit Switch Built-in (factory preset)
          Safety Certifications CE, ROHS
          Wire Length 1.5 feet
          Bracket(s) MB1 and/or MB6
          Hard Case FA-CAP
          Rubber Protector RB2

          Stroke

          Retracted Length

          Extended Length

          Weight

          STEP Files
          1" 5.5" 6.5" 2.05 lbs FA-(F)-S-12-1
          2" 6.5" 8.5" 2.1 lbs FA-(F)-S-12-2
          3" 7.5" 10.5" 2.15 lbs FA-(F)-S-12-3
          4" 8.5" 12.5" 2.2 lbs FA-(F)-S-12-4
          6" 10.5" 16.5" 2.25 lbs FA-(F)-S-12-6
          9" 13.5" 22.5" 2.65 lbs FA-(F)-S-12-9
          12" 16.5" 28.5" 3.1 lbs FA-(F)-S-12-12
          18" 22.5" 40.5" 3.45 lbs FA-(F)-S-12-18
          24" 28.5" 52.5" 3.8 lbs FA-(F)-S-12-24
          Technical Drawings

          12v linear actuator dimensions metric

          Classic Rod Technical Drawing
          Wiring Diagram

          Use our wiring diagram generator to create different diagrams for different features.

          how to wire a linear actuator

          Product Video
          Comparison Video

          Classic vs Premium linear actuator

          Performance Graph
          Classic Rod Performance Graph jpg
          3D Model Downloads (.STEP)

          Downloads

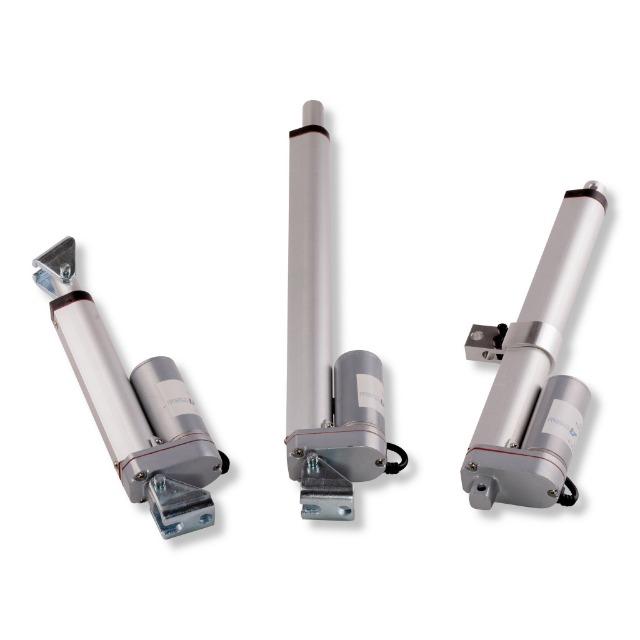

          Compatible Brackets
