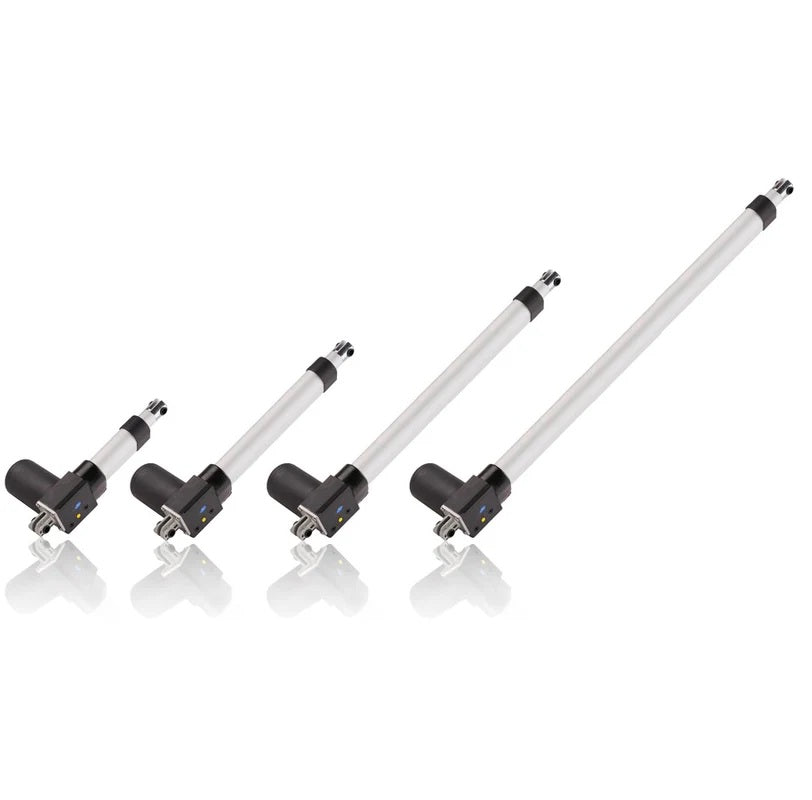

Long Stroke Heavy Duty Actuators IP66 Rated (Up to 60")
Long Stroke Heavy Duty Actuators IP66 Rated (Up to 60")
Description
Series Classification: Heavy Duty IP66 Series (Long Stroke) | Application: Large Scale Solar Tracking, Marine Hatches, & Extended Reach Automation
The Heavy Duty IP66 Series is a market-leading industrial actuator distinguished by its massive stroke capability. While standard actuators limit you to 30 or 40 inches, this series offers off-the-shelf stroke lengths up to 60 inches (5 feet). This unique extended reach makes it the only viable "Plug & Play" solution for large-scale applications such as tilting extensive solar arrays, lifting heavy marine engine hatches, or deploying long-range robotic arms.
Engineered for the elements, the unit is sealed to an IP66 rating, protecting the internal components from dust ingress and high-pressure water jets. Driven by a quiet, high-efficiency Worm Gear system, it delivers a steady 200 lbs of force, ensuring that even at full 60-inch extension, motion remains smooth and stable.
System Design Notes
Installation: The unit features universal clevis mounting points compatible with MB3 Brackets, allowing for quick-release installation. Limit switches are internal and factory-preset to protect the actuator at full extension and retraction.
Back-Drive Protection: While the worm gear offers resistance, heavy static loads may induce back-drive when power is cut. For vertical applications, we recommend integrating a SPDT Relay Back-EMF Brake or a gas spring assist. See our Back-Drive Prevention Tutorial for engineering details.
For OEM integration, 3D CAD models are available in the 'Downloads' section below. For advanced control schematics, consult our Technical Integration Guides.
Features and Benefits
- Extended Stroke Range: Rare 50" and 60" stroke options available in stock.
- IP66 Rated: Dust-tight and protected against powerful water jets.
- High-Speed/Force Balance: 200 lbs force at 0.75"/sec.
- Rugged Construction: High-grade aluminum housing and shaft.
- Certifications: CE and ROHS certified.
- Mounting: Compatible with MB3 and MB3U brackets.
Specifications
| Model Series | FA-200-IP66-12-XX |
| Dynamic Force | 200 lb |
| Static Force (Holding) | 300 lb |
| Speed (Full Load) | 0.75" / sec |
| Duty Cycle | 20% at 100% load, 50% at 25% load (5 min max continuous) |
| IP Rating | IP66 (Dust Tight / High Pressure Water Jets) |
| Drive Mechanism | Worm Gear |
| Voltage Input | 12V DC |
| Max Current Draw | 5 Amps |
| Operational Temp | -26°C to 65°C (-15°F to 150°F) |
| Wire Gauge | 16 AWG |
| Limit Switch | Internal (Factory Preset / Non-Adjustable) |
| Certifications | CE |
| Compatible Brackets | MB3 or MB3U |
Dimensional Data & Weights
| Stroke Length | Retracted Length | Extended Length | Weight | CAD Reference |
| 5" | 12.88" | 17.88" | 5.25 lbs | FA-200-IP66-12-5 |
| 10" | 17.88" | 27.88" | 5.7 lbs | FA-200-IP66-12-10 |
| 20" | 27.88" | 47.88" | 7.7 lbs | FA-200-IP66-12-20 |
| 30" | 37.88" | 67.88" | 9.10 lbs | FA-200-IP66-12-30 |
| 40" | 47.88" | 87.88" | 9.8 lbs | FA-200-IP66-12-40 |
| 50" | 57.88" | 108.88" | 10.6 lbs | FA-200-IP66-12-50 |
| 60" | 67.88" | 127.88" | 18.20 lbs | FA-200-IP66-12-60 |
*Stroke length tolerance +/- 0.125"
