      These brackets are used with our Premium Linear Actuators ONLY. They fit on the body to keep the actuator from rotating around. Some people use 2 MB1-P brackets and some require the actuator to remain static which is when this bracket is useful.

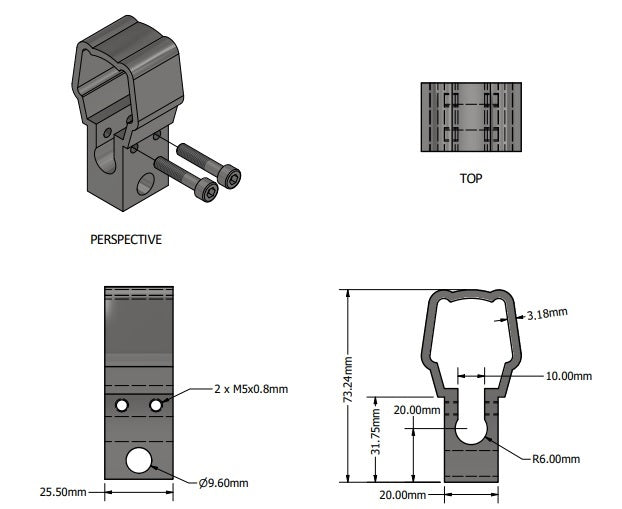

      Lightweight, compact, and versatile; The MB6-P mounting bracket allows the Premium Actuator line of linear actuators to be mounted from the body, offering flexibility in applications as well as reducing the overall length by not having to use a bracket at the base of the Actuator. The mounting bracket simply slides over the body of the actuator and is tightened by two bolts. The whole assembly is then easily installed into the application. Yacht owners, engineers, car enthusiasts, as well as armored vehicle specialists are just a few of the happy clients that have used the MB6-P brackets to tackle tough design obstacles. Sturdy aluminum construction keeps your project stable and reliable. Each order comes with one bracket.  Hole dia for fixing is 9.4mm (0.37")

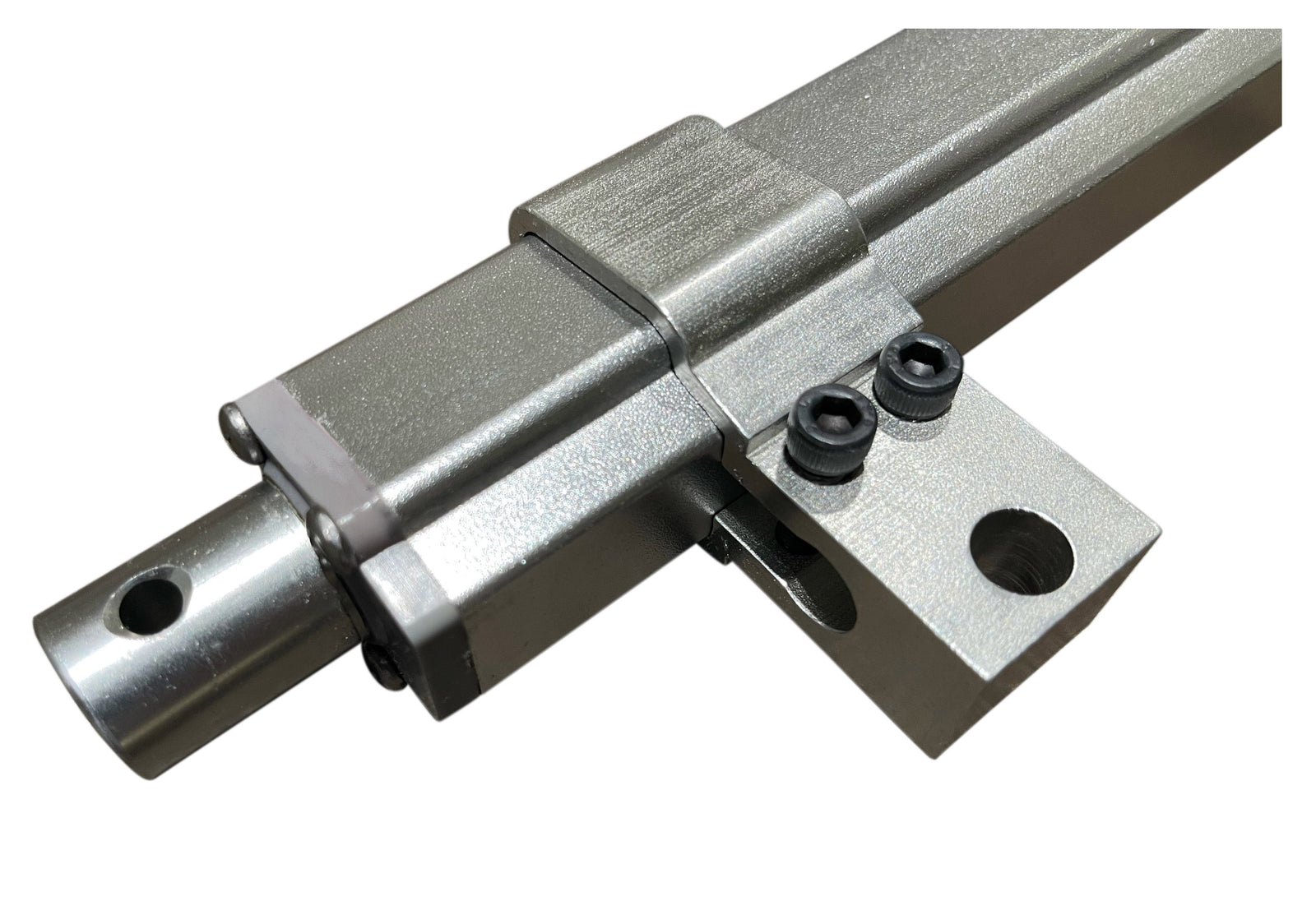

      MB6-P Linear Actuator bracket
