Rocker Switches for Linear Actuators

      Rocker Switches for Linear Actuators

      USD
      Model #
      Select Type
      Quantity
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.
      View Cart

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      How to wire a rocker switch

      Description

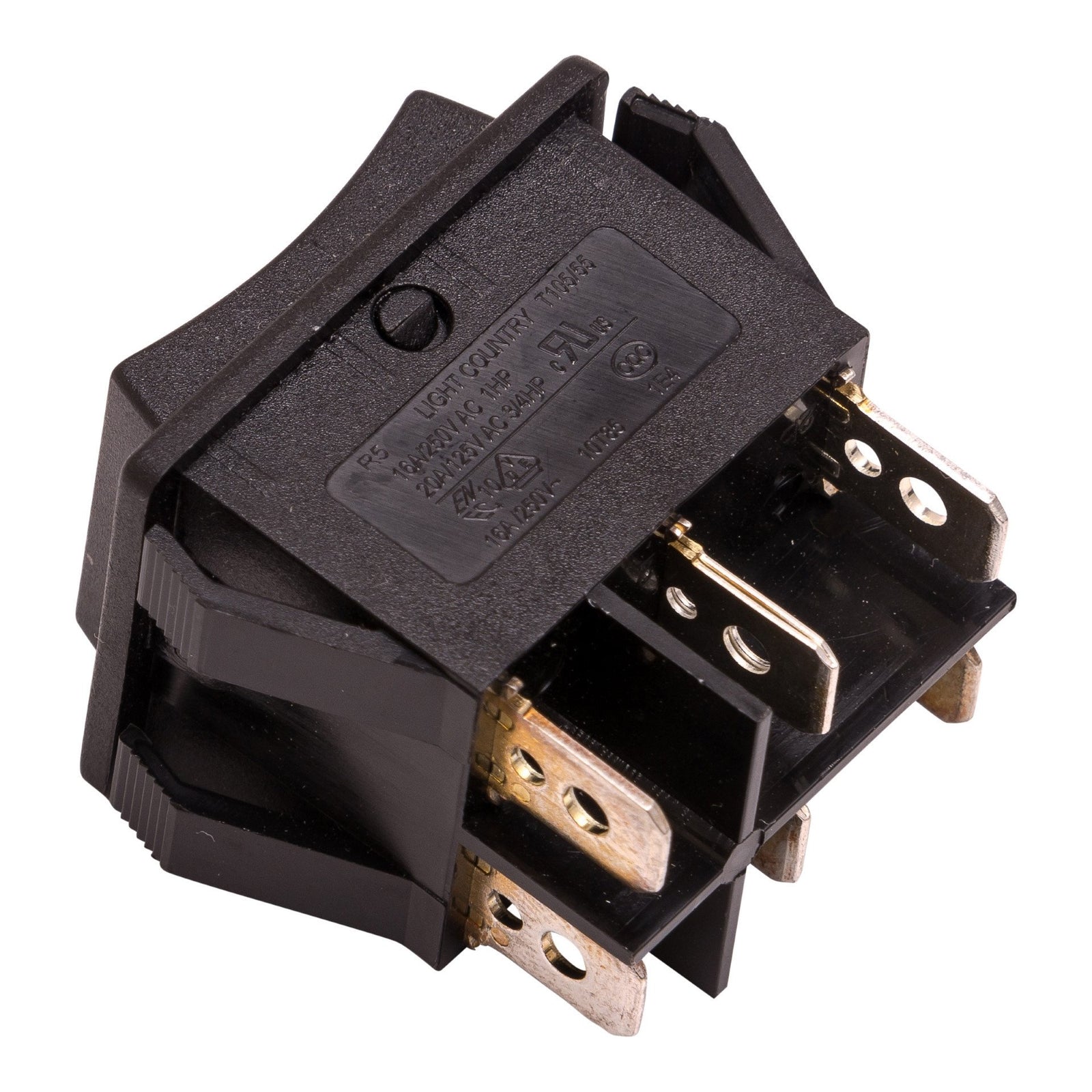

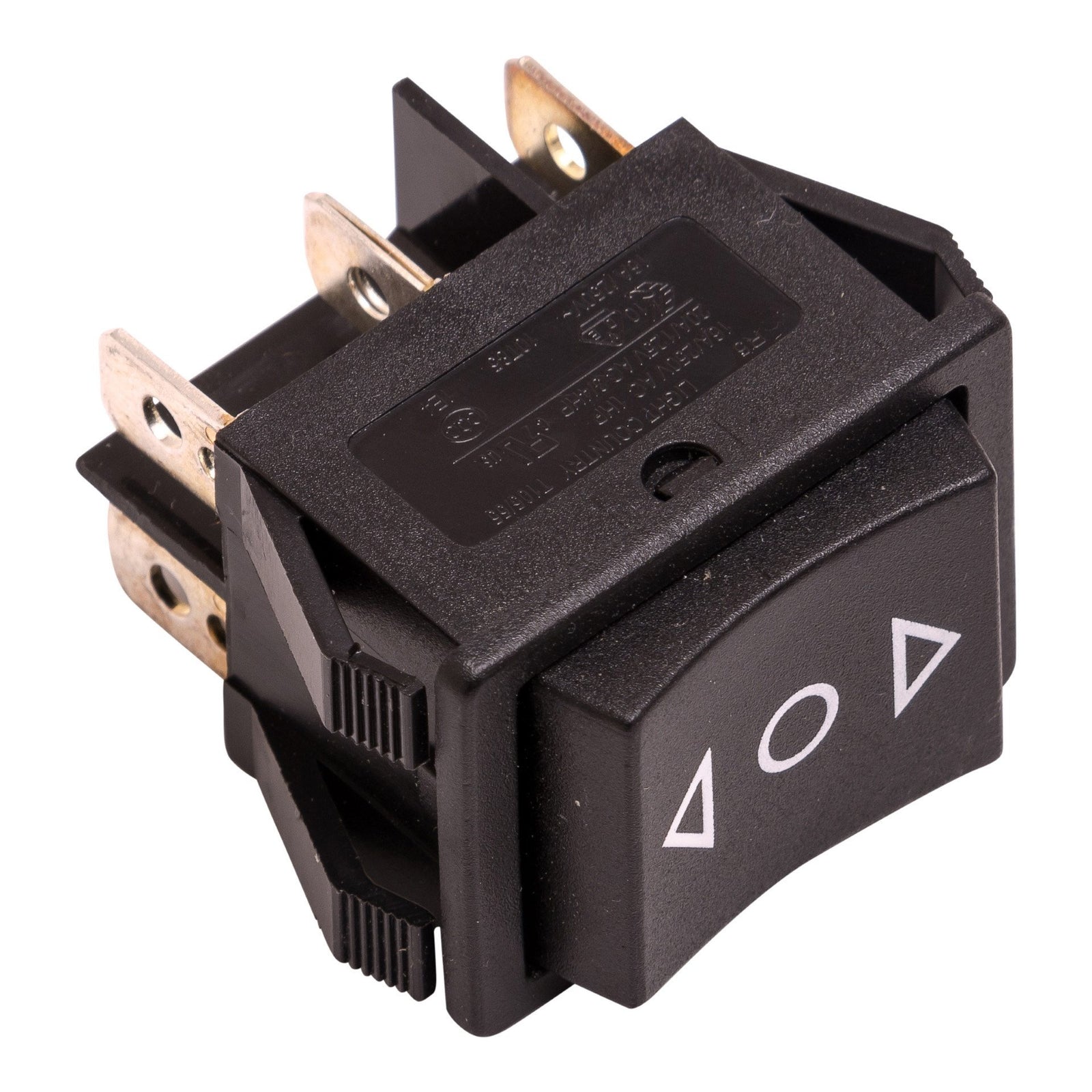

      Flush mounting DPDT (Double Pole Double Throw) Rocker Switches for Linear Actuators and other DC Motors - Momentary or Sustaining option

      •  Model # MAN-RS2 Momentary
      •  Model # MAN-RS Sustaining
      •  Dash mountable - each side has spring loaded tabs for installation
      •  3-position rocker switch: up/off/down spring loaded to return to the off position for Momentary or stays in position for Sustaining.
      • Push the switch and hold for the direction you want, actuator stops at the full stroke position, and is spring loaded to return to the middle/off position when you let go of the switch if you buy the monetary option, or just stay in position if you buy the sustaining model.
      • How Do You Control a Linear Actuator with an Actuator Switch? - Read this Blog post to find out
      Technical Drawings

      linear actuator wiring diagram

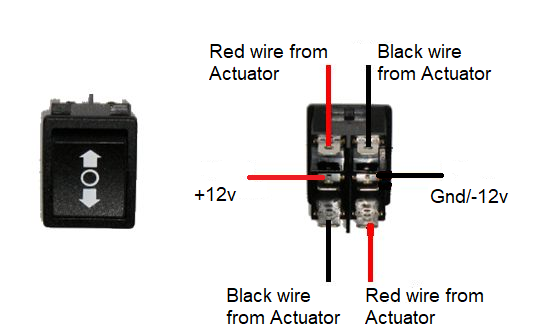

      Linear Actuator wiring Diagram for a Rocker switch

      Linear Actuator wiring Diagram for a Rocker switch

      Wiring Diagram

      Product Videos
