12 Volt Single Socket and Wiring Harness For Single-Pole Double-Throw Relay (SPDT)

12 Volt Single Socket and Wiring Harness For Single-Pole Double-Throw Relay (SPDT)

USD
Model #
Quantity
qty limit cart limit

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

Shipping Cost Estimator

Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

Description

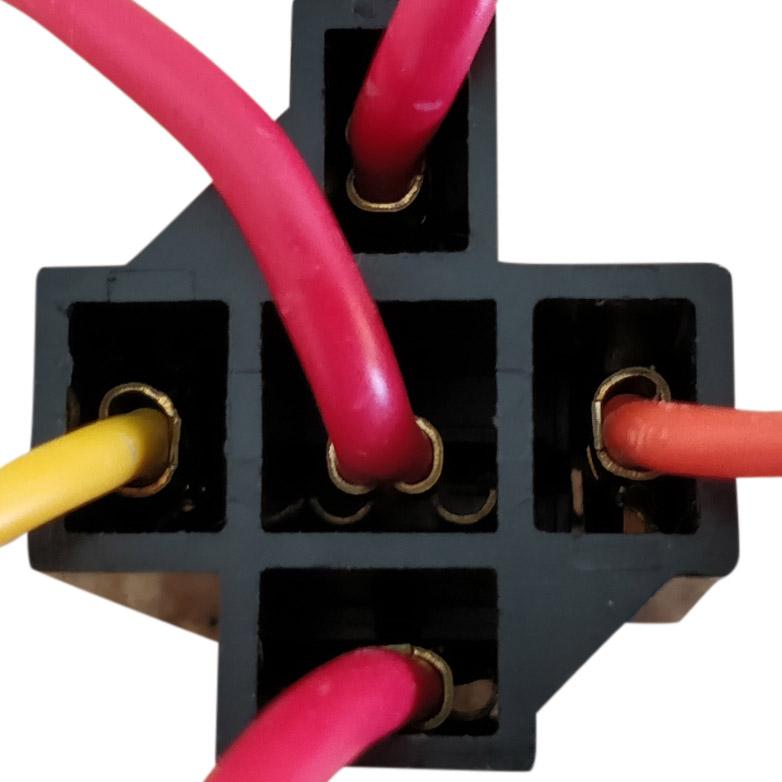

This wiring harness is needed for the Single-Pole Double-Throw Relay to make connection so much easier and mess free.

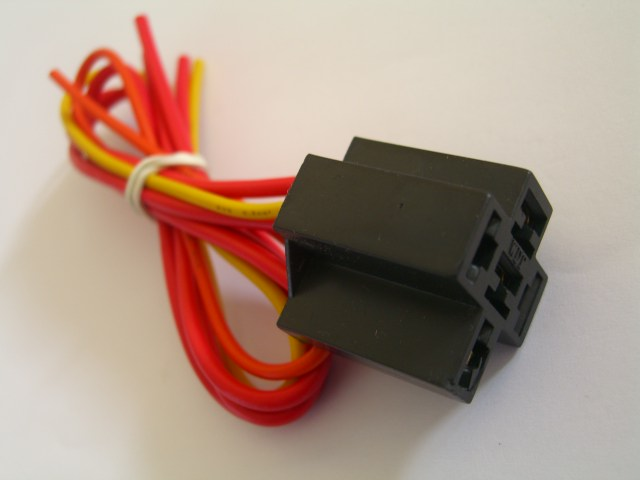

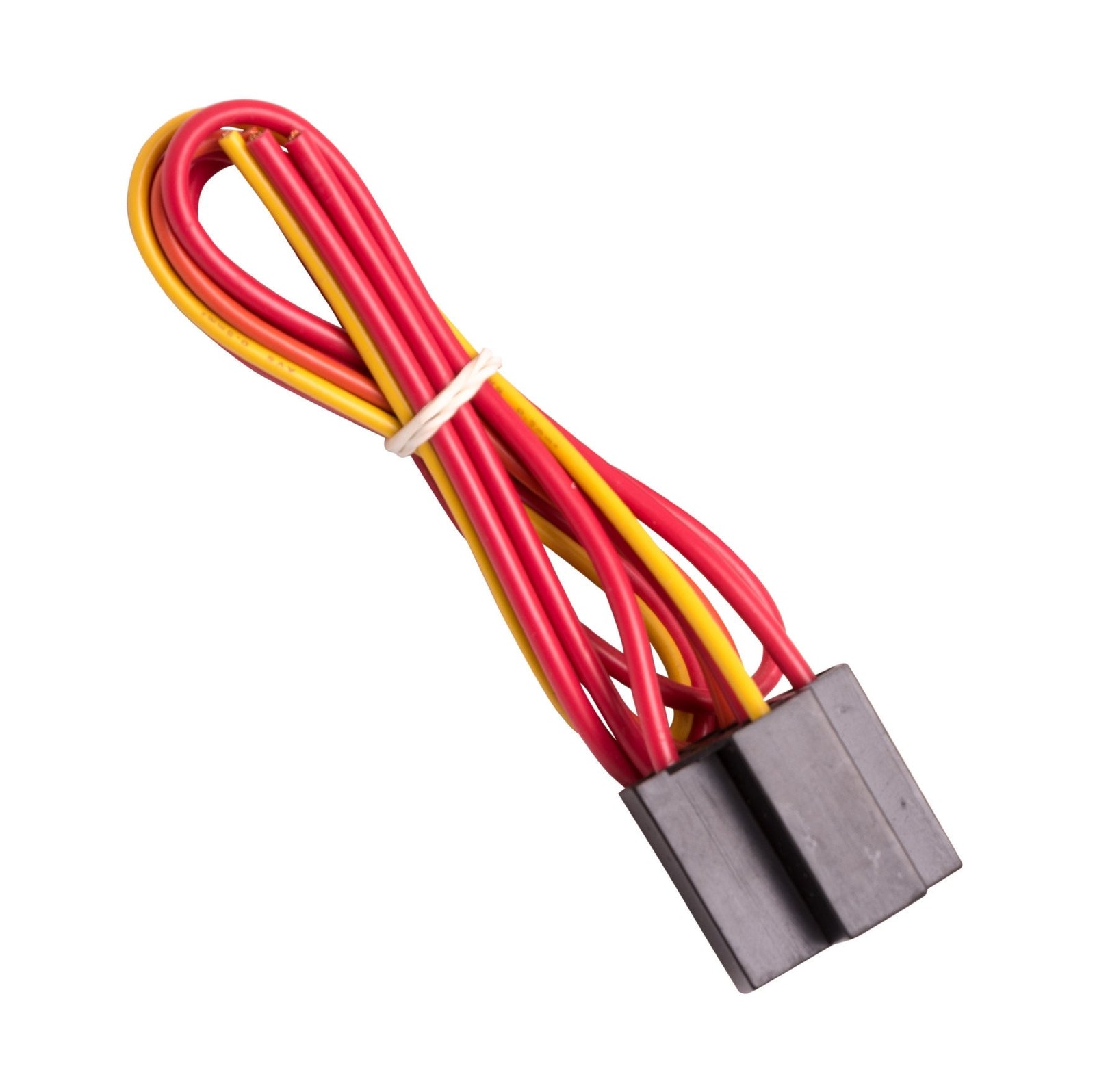

This is a Simple quick connect Socket for the HFV4 relay. These are a standard harness to fit the a SPDT 30/40 amp 12 volt relay (sold separately) Includes approx 10" of cable length

These can be used in a variety of ways, but this relay harness is a great way to control the DC motor of a linear actuator. In order to achieve start/stop/direction control of a linear actuator you need to use two SPDT relays. With the two SPDT relays you can cut the voltage/circuit to the motor and swap the polarity going to the linear actuator motor.

Another advantage of using two SPDT relays to control a linear actuator is you get active or dynamic braking of the linear actuator allowing you to essentially "stop on a dime".

There are many other uses for relays, and this relay harness is a great way to wire up the relays.
