Bullet 36 Cal. Series: Compact In-Line Actuator

      Bullet 36 Cal. Series: Compact In-Line Actuator

      USD
      Model #
      Voltage
      Force
      Stroke
      Quantity
      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout. Due to new Trump tariffs, discounts over 20% have been removed until further notice

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.
      View Cart

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Description

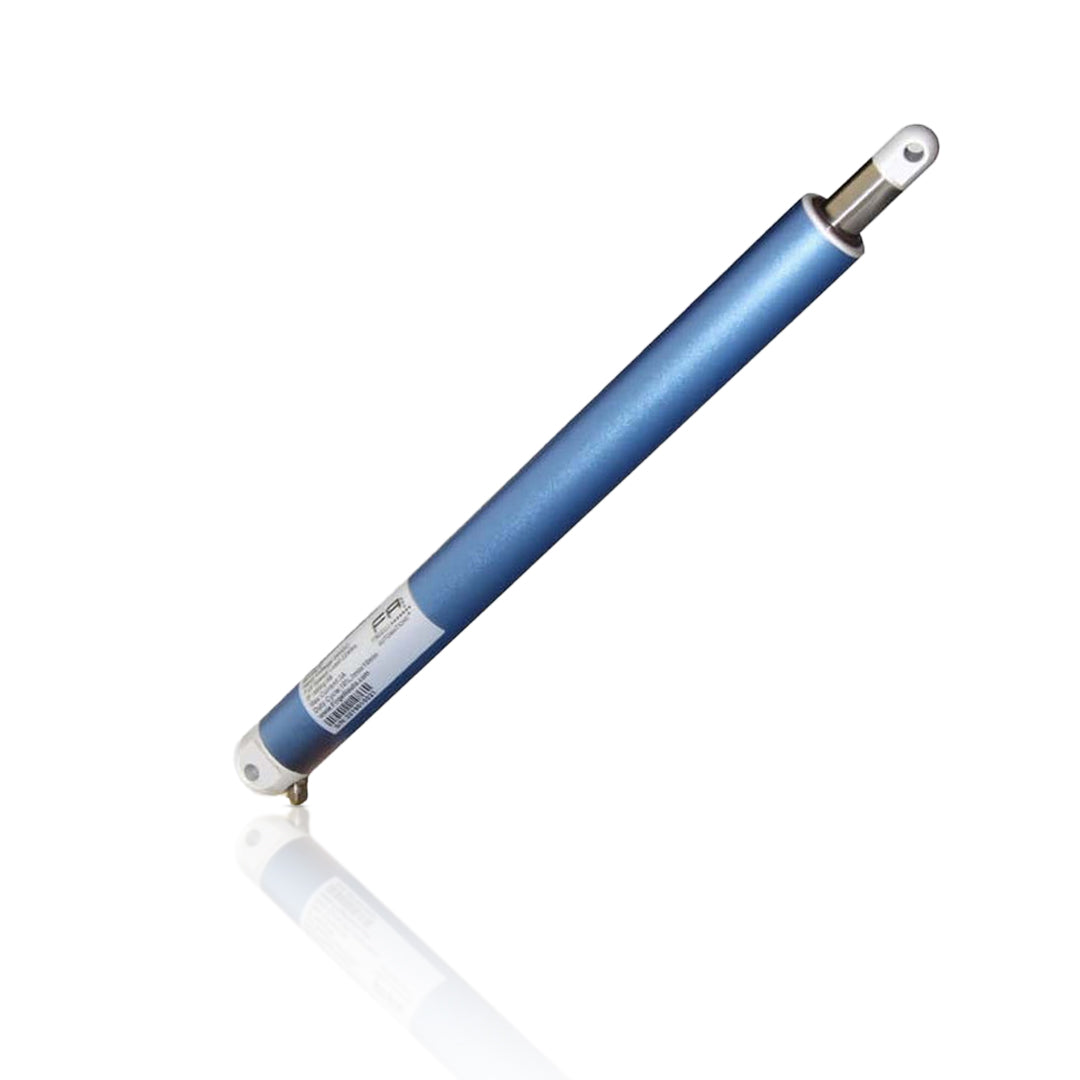

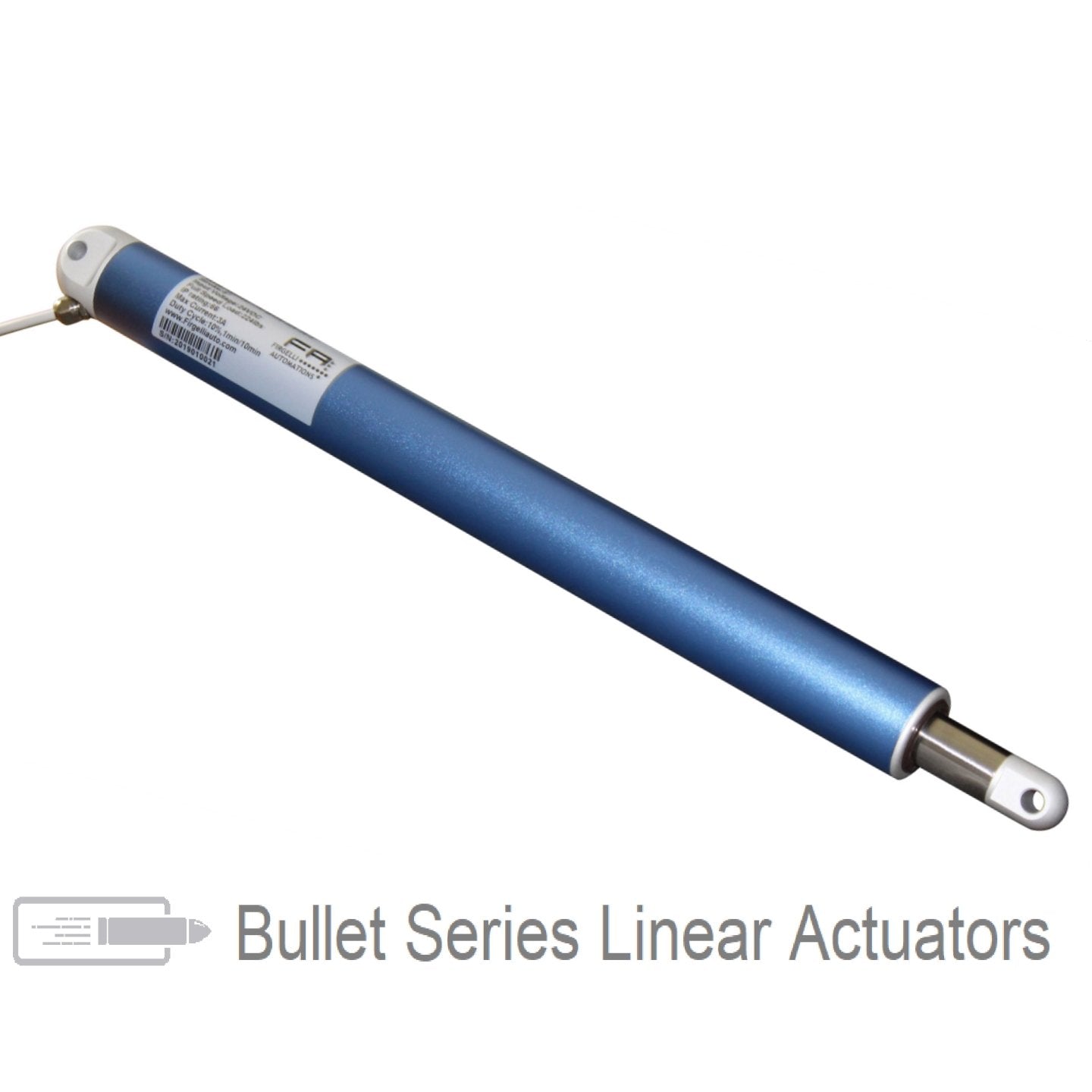

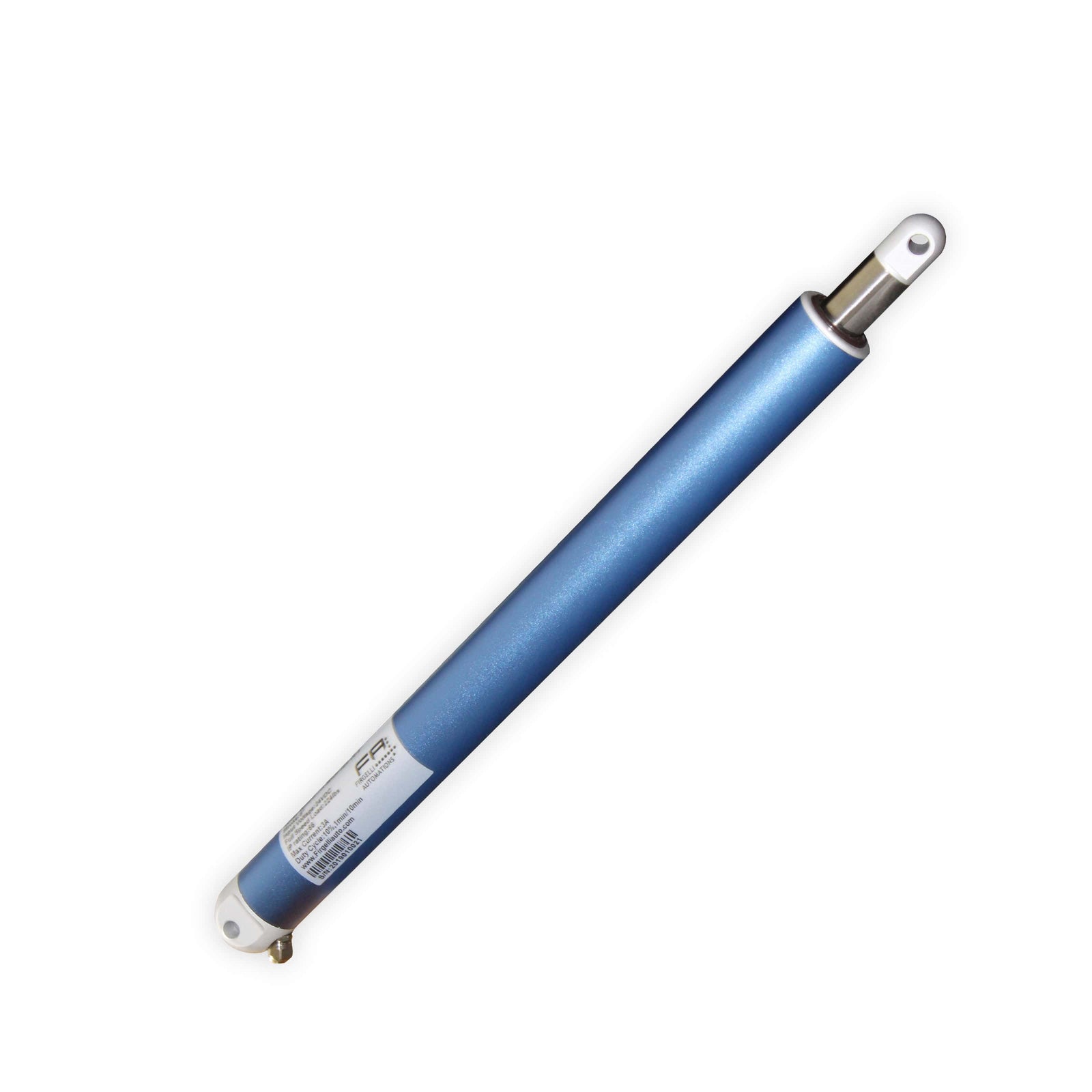

      The Bullet Series 36 Cal. Linear Actuator was developed to have a slim in-line motor design. Includes built-in hall effect sensor, which allows for synchronization, position and speed control. The Hall effect feedback is vital to applications where multiple actuators must travel in sync.

      *Product is now manufactured in silver

      To move between two and four actuators in synchronous we recommend our dedicated control board, the FCB-1.

      CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

      Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies

      • Works perfectly with Control board FCB-1 for the ultimate Actuator control, to give you complete actuator control including adjusting limits, speed, and time functions.
      FA-BH36-224-12-(S) FA-BH36-224-24-(S)
      Push/Pull Force 224 lbs. 224 lbs.
      Static Force 268 lbs. 268 lbs.
      Speed at full load 0.157”/sec 0.157”/sec
      Gear Ratio 100:1 100:1
      Voltage 12V 24V
      Max Current at full load 3A 1.5A
      Duty Cycle 10% 1 min on and 10 min rest at full load
      Operating Temp. Range -4°F to 149°F (-20°C to 65°C)
      IP Rating 66
      No Load Noise Level 50-70 dBA (1')
      Diameter 1.42" (36mm)
      Outer Housing Material Aluminum

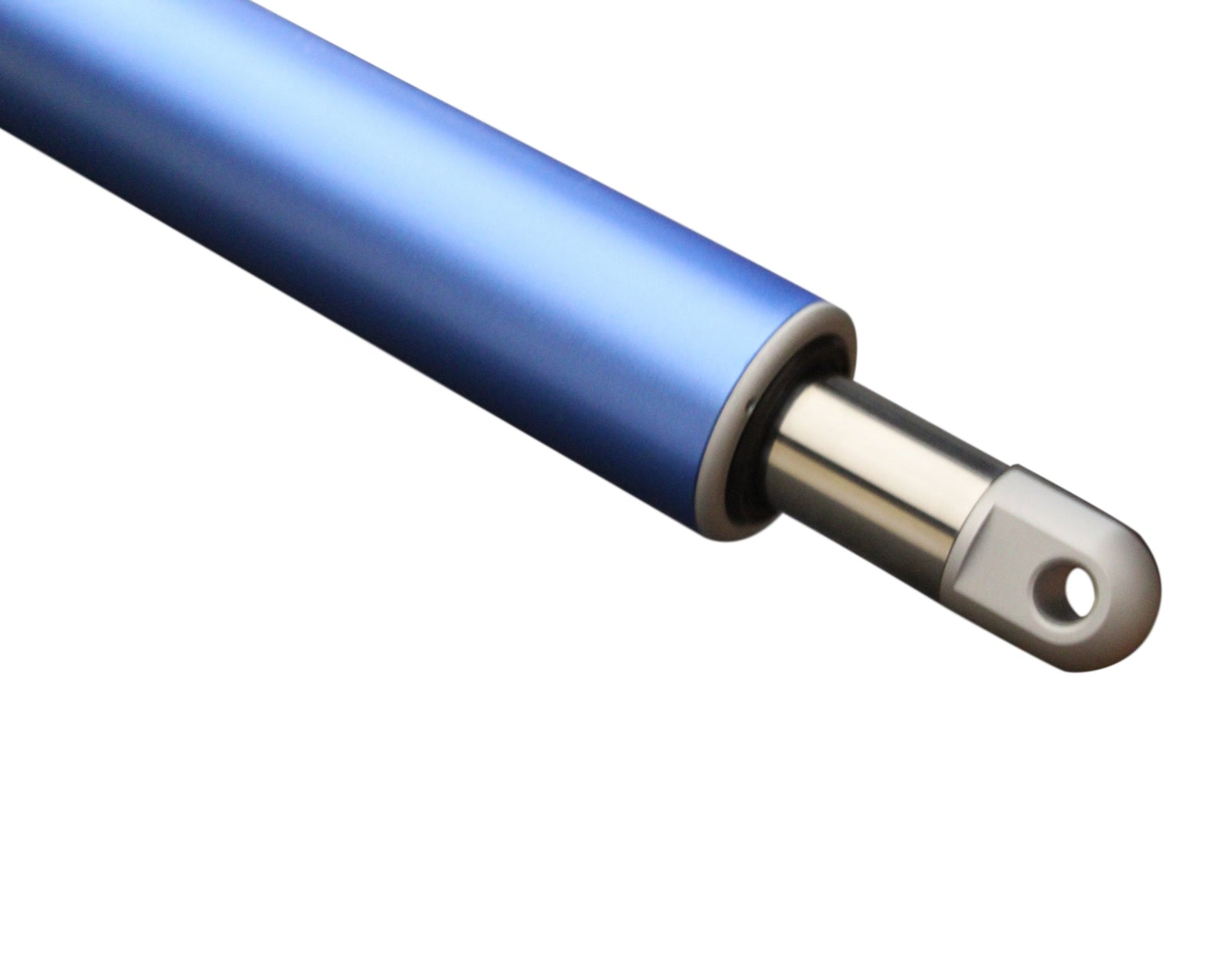

      Expansion Rod Material Stainless Steel 304
      Limit Switch Built-In non-adjustable unless you use FCB-1 controller

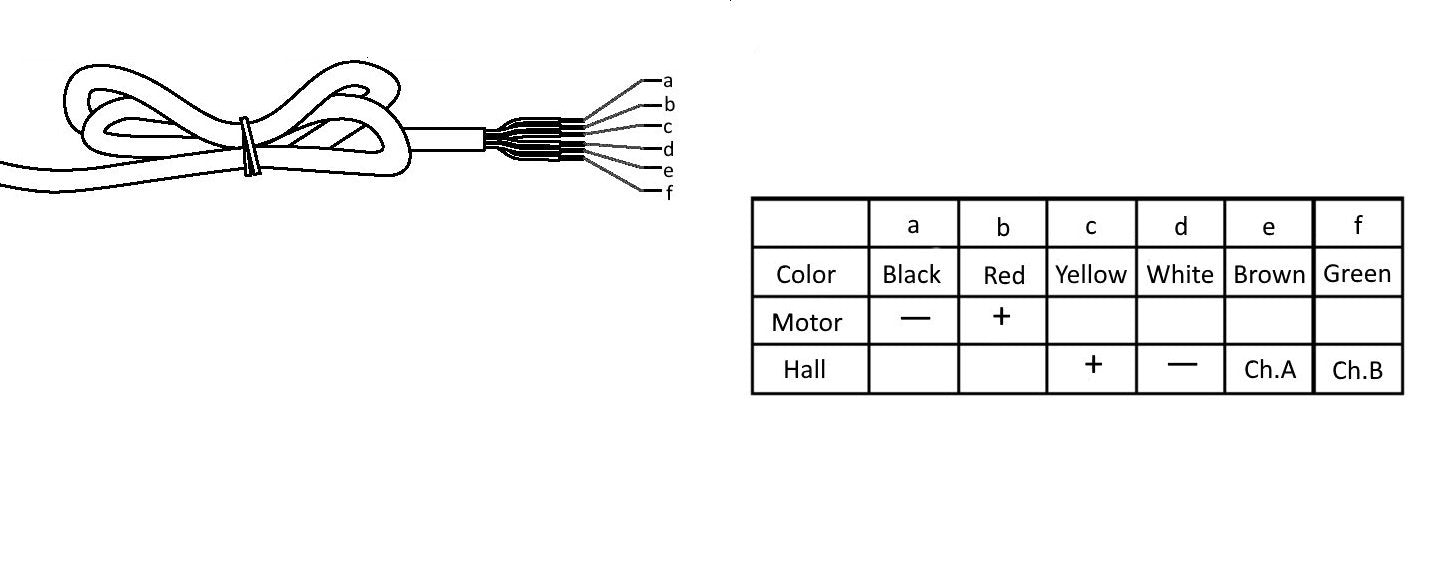

      Feedback Hall Effect Sensor
      Hall sensor Pulses per inch of travel 1,828 (72 pulses per mm of travel)
      Number of Hall Magnet 3PPR
      Pitch of leadscrew P2.5*2T
      Revolutions per inch stroke 0.2" (5.08mm) Stroke per Revolution of the Leadscrew. (5 revolutions per Inch of travel)
      Hall sensor pulses per revolution of Leadscrew 360PPR
      Feedback Voltage 5V
      Synchronous Capability Yes, with our Sync Control Board or a Microcontroller
      Cable Length 1.5 feet
      Wire Gauge 18 AWG Motor, 20AWG Sensor
      Brackets MB36, MB36C, MB36SM
      Stroke Length Retracted Length Extended Length Weight (lb)
      6" 16.34" 22.26" 2.4
      8" 18.30" 26.20" 2.6
      10" 20.27" 30.27" 2.7
      12" 23.42" 35.25" 3.15
      14" 25.24" 39.19" 3.4
      18" 30.15" 48.24" 3.95
      22" 34.45" 56.12" 4.05
      24" 36.45" 61.12" 4.25
      Bullet 36 cal linear actuator Technical Drawing
      Speed vs Load
      Current vs Load

      Downloads

      224lb's
      6 Inch
      8 Inch
      10 Inch
      12 Inch
      14 Inch
      18 Inch
      22 Inch
      24 Inch

      Videos


      Bullet 36 cal review

      Bullet 36 Cal Comparison

      controlling speed of a linear actuator

      Related blog articles:

      What is an actuator

      Actuators - What is an Actuator?

      August 13, 2021

      Understand actuator basics and terminology to easily choose the right electric linear actuator for your needs.

      Controlling a linear actuator with an arduino

      How Do You Control a Linear Actuator with an Arduino?

      May 29, 2020

      Learn to control linear actuators with Arduino using relays, motor drivers, and inputs for advanced automation.

      Reverse Polarity

      Understanding Reverse Polarity: How it Works and When to Use it

      March 06, 2023

      Beginner's guide on reverse polarity in circuits, motors, and linear actuators, with practical applications explained.

      Stroke Length Retracted Length Extended Length Weight (lb)
      6" 16.34" 22.26" 2.4
      8" 18.30" 26.20" 2.6
      10" 20.27" 30.27" 2.7
      12" 23.42" 35.25" 3.15
      14" 25.24" 39.19" 3.4
      18" 30.15" 48.24" 3.95
      22" 34.45" 56.12" 4.05
      24" 36.45" 61.12" 4.25

      Yes we do. Our discount structure is based on volumes, so the more you buy the more you save its that simple. These volumes start at 11pcs or more.

      All actuators come with a 12 month warranty. This will protect you against manufacturer defects. User error and misuse will not be covered under warranty. Shipping and all costs pertaining to shipping will not be refunded.

      We also offer an optional Warranty Plus in which Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      When selecting the product which you want to order, only the in-stock items will be available to click on under the options. So if you can add it to your cart, it is in stock.

      We accept returns within the first 30 days. As long as the product is in new and unused condition, is in original packaging, and passes a thorough inspection, you will be eligible for a refund minus a 20% re-stocking fee (unless a replacement order is placed). Customer is responsible for the return shipping for any item ordered in error or no longer suitable.

      Please email sales@firgelliauto.com with your order number, description of the issue, part number, and quantity. We will evaluate your issue and send you an RMA form to print out and include in your return packaging.

      There are a few variables to consider, but we can simplify this greatly for you with the Actuator calculator we've built. This Calculator is based on the physics calculations our in-house team use every day; So, we decided to simplify it and make it available to everyone. If this calculator does not cover your application please, email us any diagrams, sketches, etc. and we will be glad to help.

      Yes, a FIRGELLI actuator can replace your old actuator. FIRGELLI offers a wide range of electric linear actuators with various specifications, including stroke length, force capacity, and mounting options. Before making a replacement, it's essential to consider the following steps:

      Compatibility Check: Compare the specifications of your old actuator with the FIRGELLI actuator you're considering. Ensure that the stroke length, force capacity, and mounting dimensions match or closely align with your requirements.

      Mounting and Connections: Check whether the mounting brackets, attachment points, and connection interfaces of the FIRGELLI actuator are compatible with your existing setup.

      Power Supply: Confirm that the power requirements (voltage, current) of the FIRGELLI actuator match your power supply or system specifications.

      Control and Feedback: If your old actuator had specific control features or feedback mechanisms, verify that the FIRGELLI actuator provides similar functionalities or offers compatible control options.

      Integration: Consider any modifications needed to seamlessly integrate the FIRGELLI actuator into your application. This could include adjusting mounting points, making electrical connections, or programming control signals.

      Consultation: If you're uncertain about compatibility or installation, feel free to reach out to FIRGELLI's customer support. They can provide guidance and recommendations based on your specific situation.

      For a more in depth guide on how to replace your old actuator, we have made a replacement actuator guide for you.
