12vdc Electric Motor 6KG-CM 24RPM

      12vdc Electric Motor 6KG-CM 24RPM

      USD
      Model #FA-GM12-6KGCM
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      Sorry, this product is temporarily out of stock.
      View Cart

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

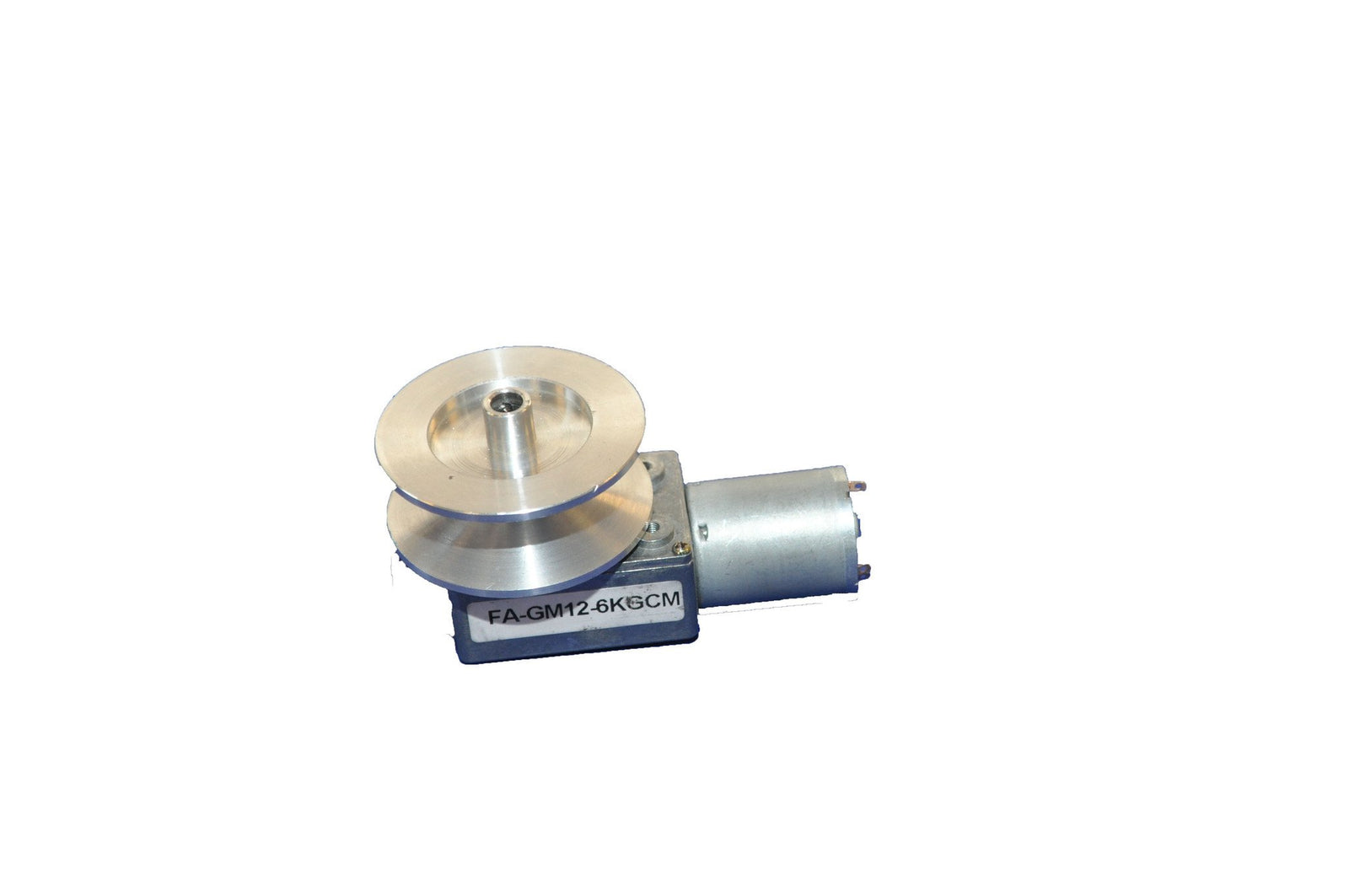

      This Electric motor has a 90 deg gear head for better use of space allocation. This would be ideal for turning wheels on a robot where the wheels are required to have very high torque. The speed on these are just about right for a medium speed robot but with enough torque to get up the steepest hills.The shaft has a 6mm dia and works great with our hubs or pulleys Links below. The flat on the Shaft is what you will tighten the set screw to in order to prevent the pulley or hub from rotating

      https://www.firgelliauto.com/products/micro-motor-pulley

      https://www.firgelliauto.com/search?q=hub

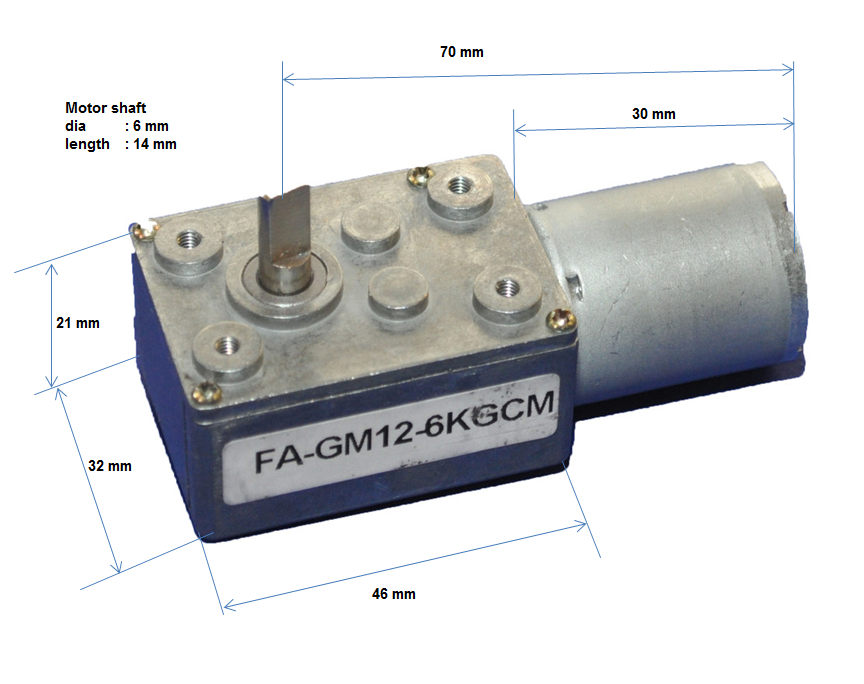

      Specifications

      Torque:                               6KG-CM

      RPM:                                   24

      Shaft Diameter:                   6mm (.236”)

      Height:                                27mm

      Length:                               77mm

      Width:                                 32mm
