Micro F12 Series: Compact Linear Actuator (Legacy)

USD

Model #

1" (inch)

2" (inch)

3" (inch)

4" (inch)

5" (inch)

6" (inch)

Bulk Discount

Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout. Due to new Trump tariffs, discounts over 20% have been removed until further notice

Min. Quantity	Discount
11	20 % OFF
31	25 % OFF
50	30 % OFF
200	40 % OFF

qty limit cart limit

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

View Cart

Shipping Cost Estimator

Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

Country

Zip/Postal Code

Description

PRODUCT NOTICE: Manufacturing for this model was discontinued in 2025. Sales are limited to remaining stock only.

Recommended Replacement: Please upgrade to our newer Micro Utility Series for improved performance and availability.

Series Classification: Micro F12 Series (Legacy Compact) | Application: Small-Scale Robotics, RC Models, & Prototype Automation

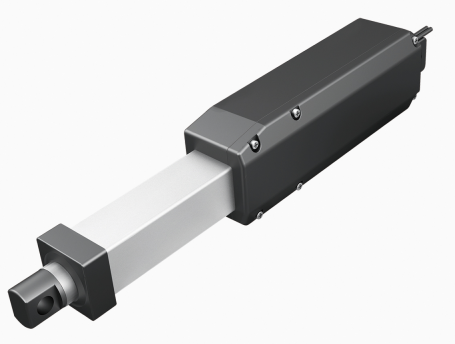

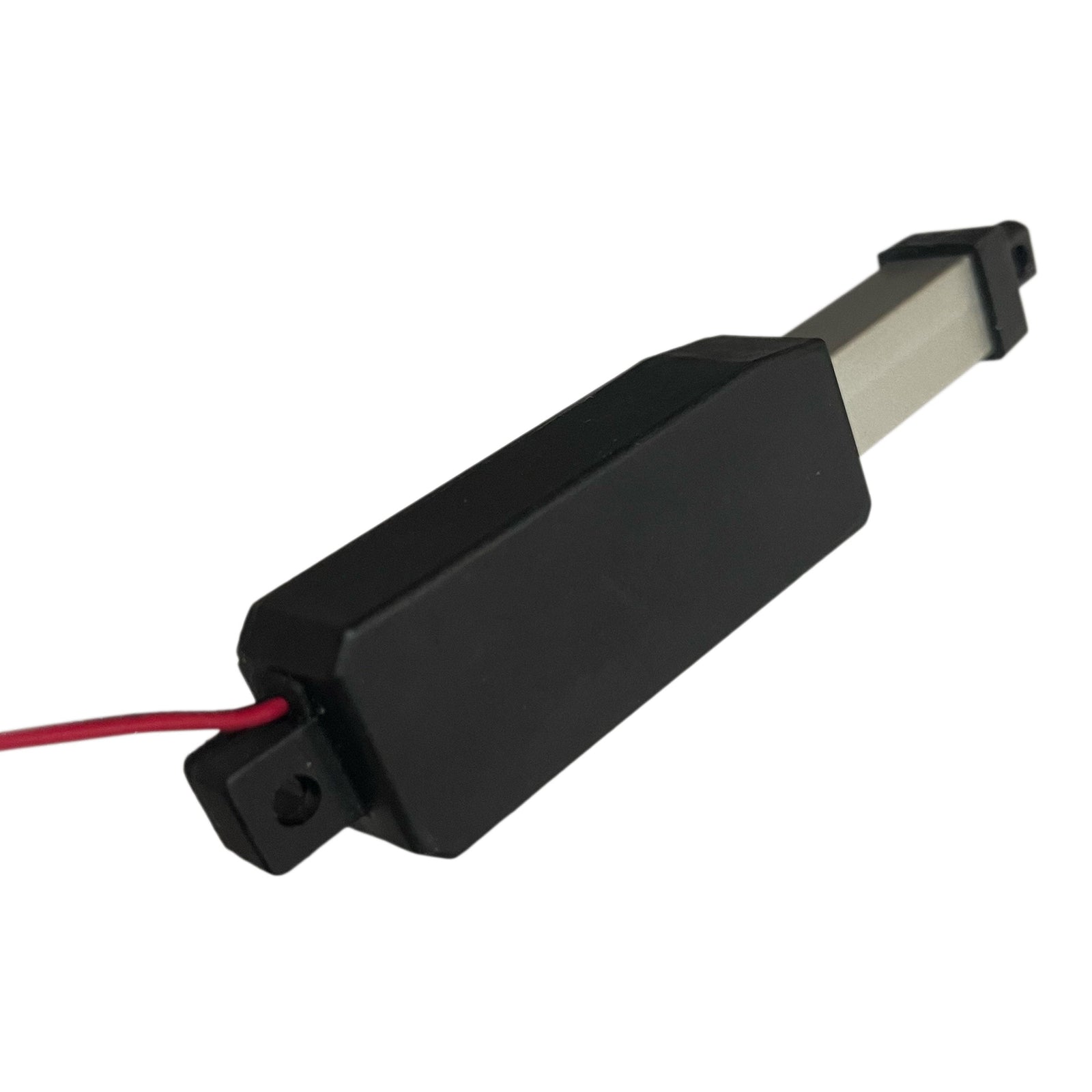

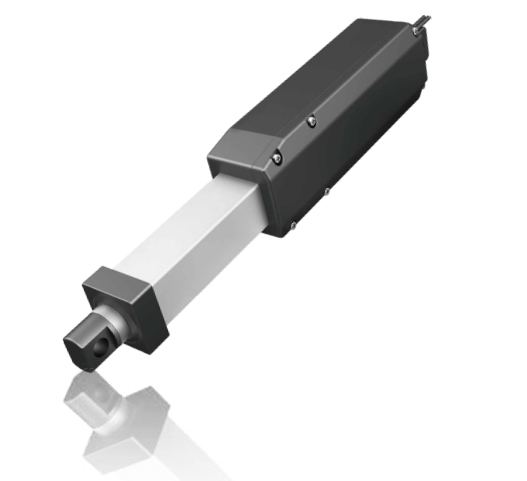

The Micro F12 Series Actuator is a legacy favorite for applications where space is the primary constraint. Small, lightweight, and durable, this unit features a **Water-Resistant IP66 Seal** and a **Full Metal Gearbox**, ensuring longevity even in such a compact form factor. It is similar in design to the original L12 actuators, offering a reliable push/pull force of 4.4 lbs (20N).

Ideally suited for hobbyists and engineers alike, the F12 Series integrates easily into tight spaces using its 4.1mm clevis mounting holes. The unique Rotatable Shaft allows you to orient the mounting holes up to 180 degrees, solving alignment issues during installation.

Control & Integration

Controlled via a simple 2-wire 12V DC interface, reversing polarity changes the direction. This makes it compatible with standard Rocker Switches, Remote Controls , and micro-controllers.

Compatible Accessories (Sold Separately): 2-Channel Remote - Rocker Switches - 12V Power Supplies

Specifications

Dynamic Force (Push/Pull)	4.4 lbs (20N)
Static Force (Push/Pull)	5.6 lbs (25N)
Speed (Full Load)	0.5" / sec (12mm/s)
Voltage Input	12V DC (Standard) / 3-12V DC Range
Current (No Load)	0.1 Amps
Current (Full Load)	0.2 Amps

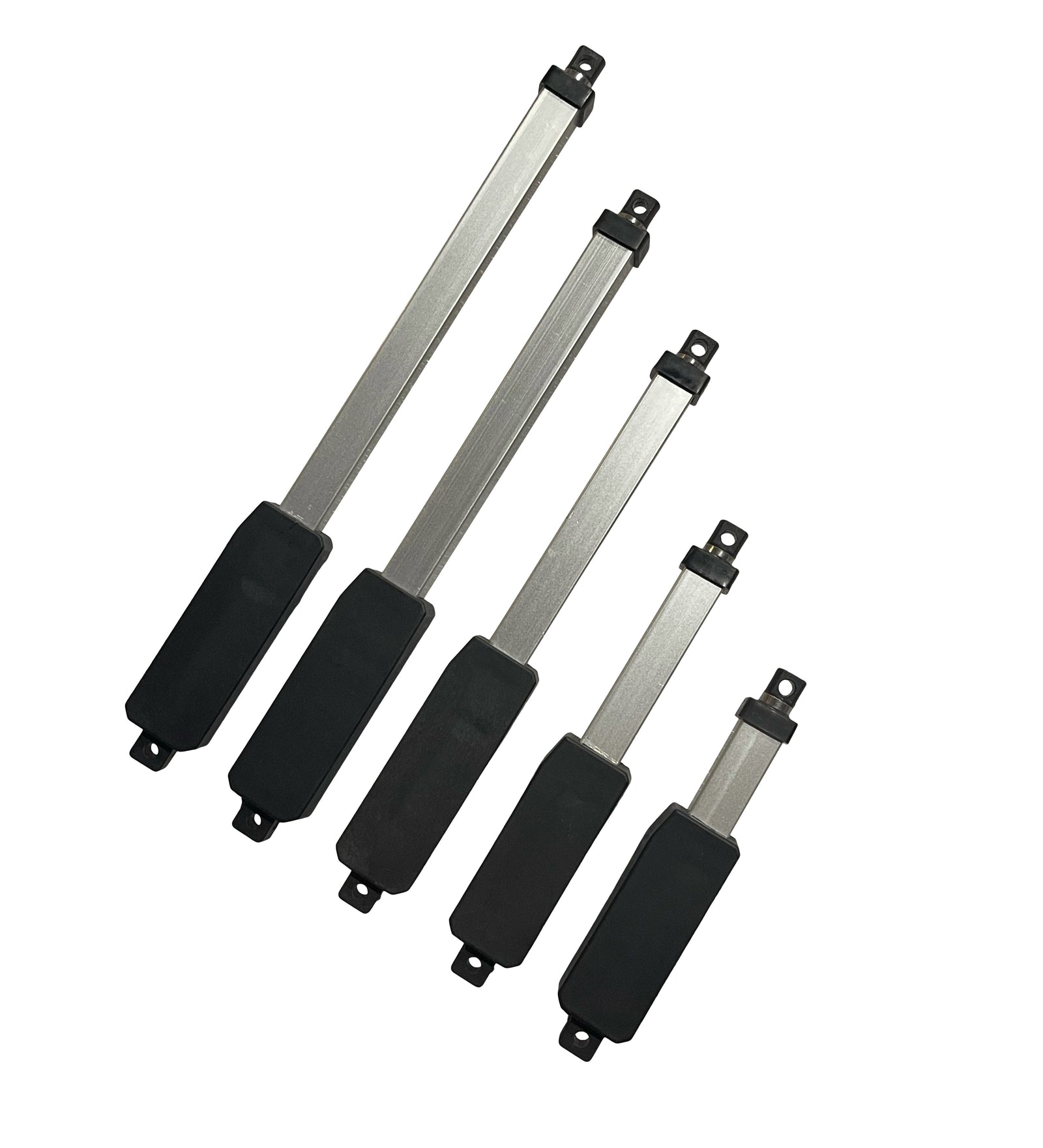

Stroke Options	1" to 6" (25mm - 150mm)
Duty Cycle	25%
IP Rating	IP66 (Dust Tight / Water Jet Resistant)
Operational Temp	0°C to 50°C
Limit Switches	Internal (Built-in / Non-Adjustable)
Mounting Points	4.1mm Diameter Clevis Holes (Both Ends)
Noise Level	<45 dBA
Gear Type	Metal Gears

Dimensional Data

Hole-to-Hole Lengths:

Stroke	25mm (1")	50mm (2")	75mm (3")	100mm (4")	125mm (5")	150mm (6")
Retracted Length	117mm	132mm	172mm	197mm	223mm	248mm
Extended Length	142mm	182mm	247mm	297mm	348mm	398mm
