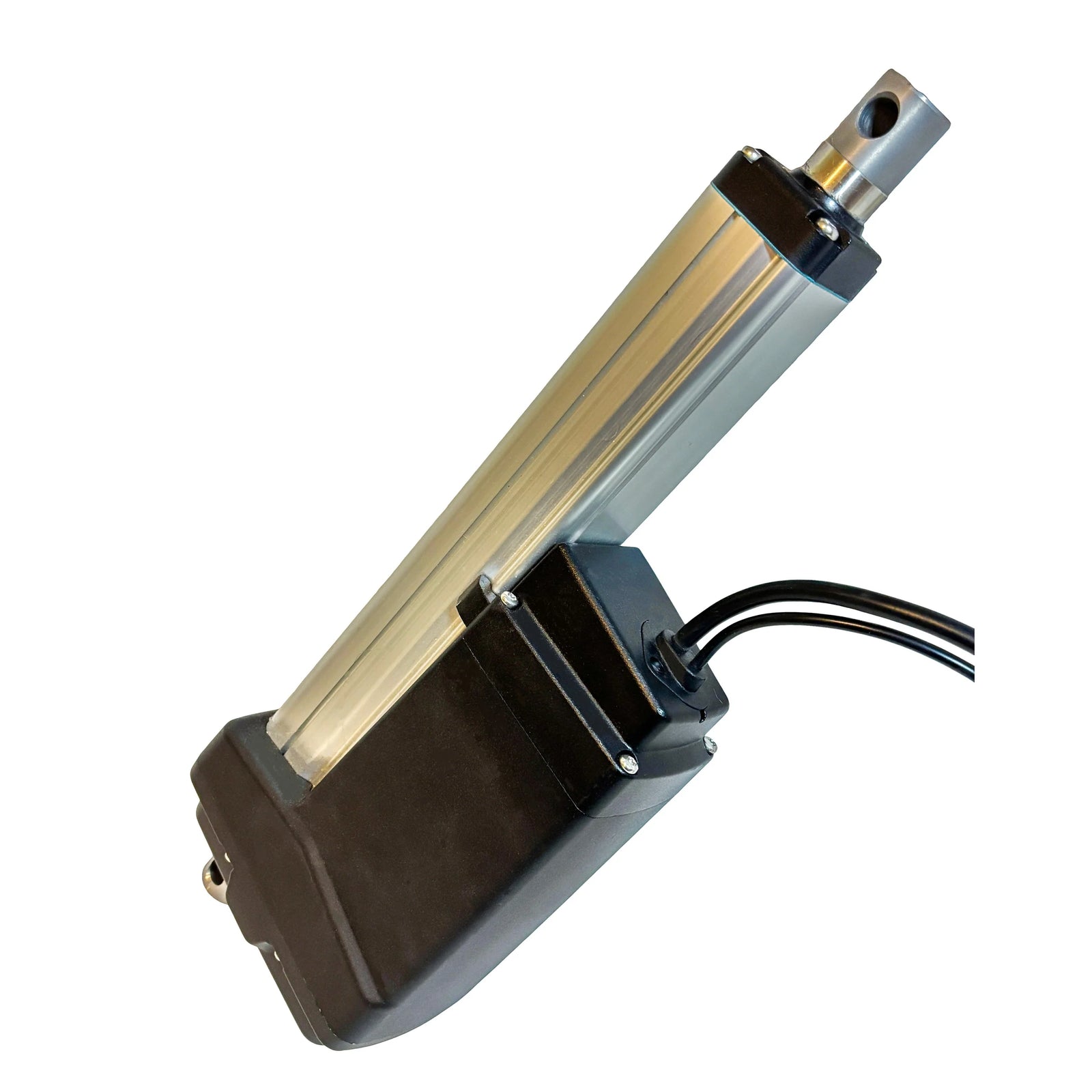

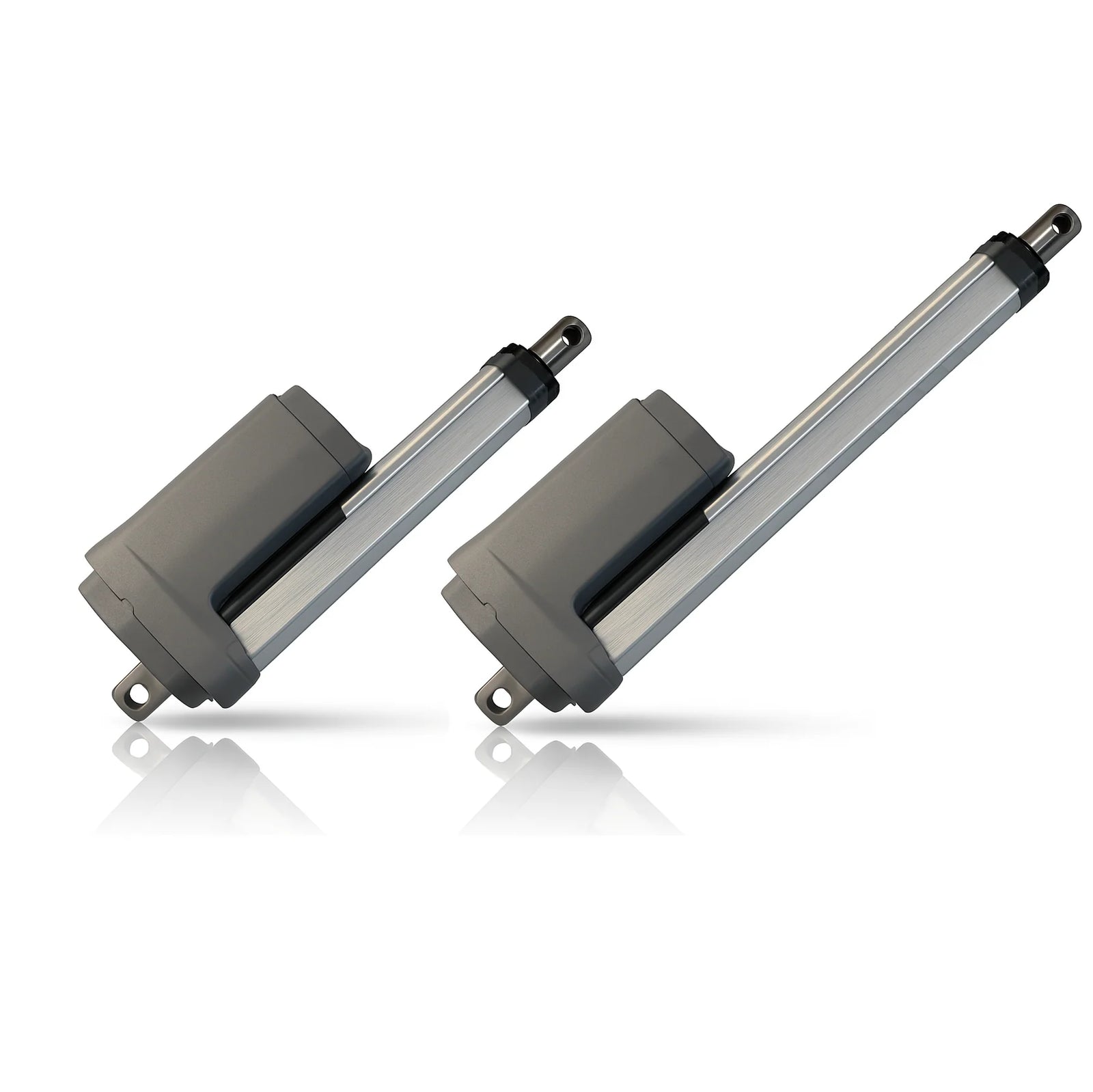

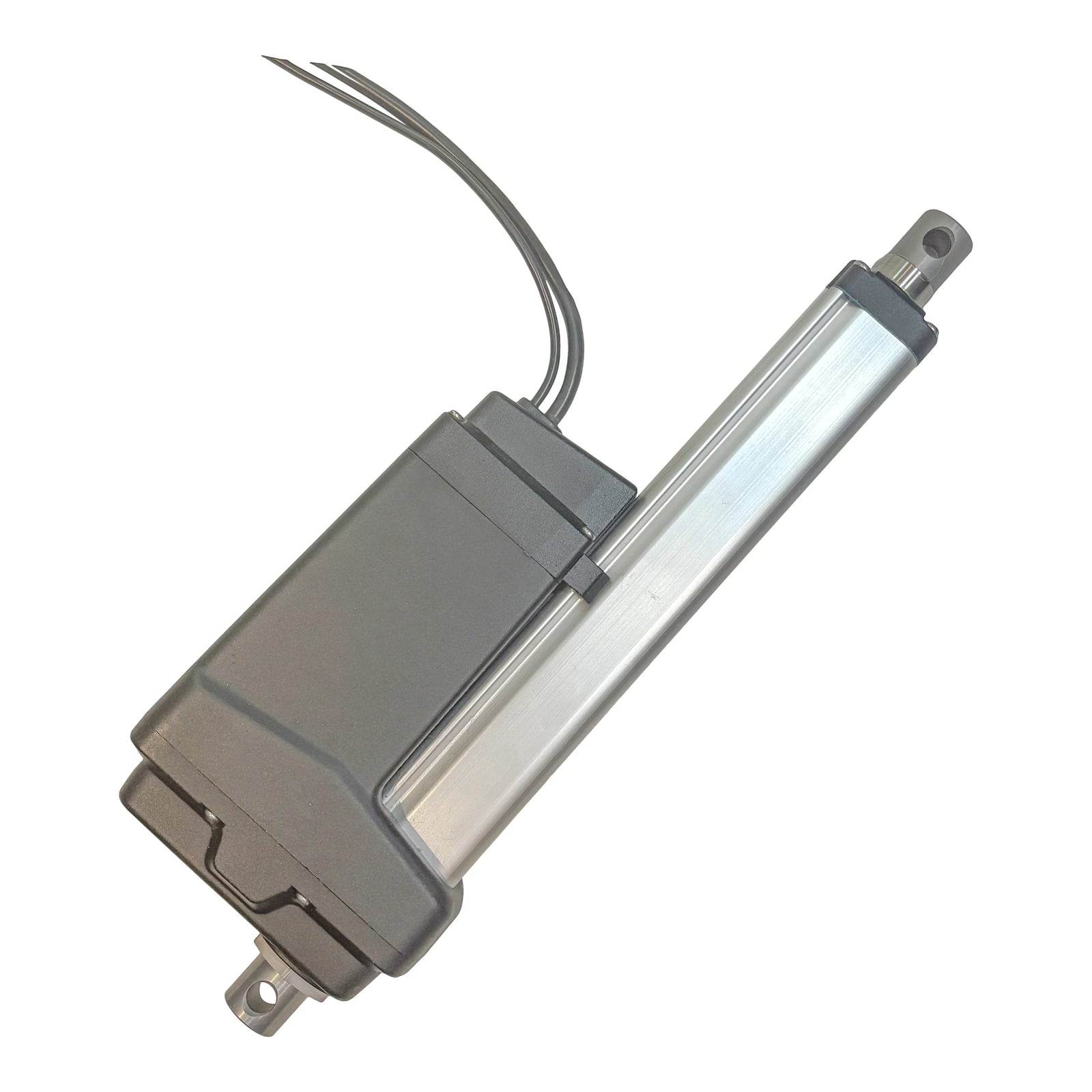

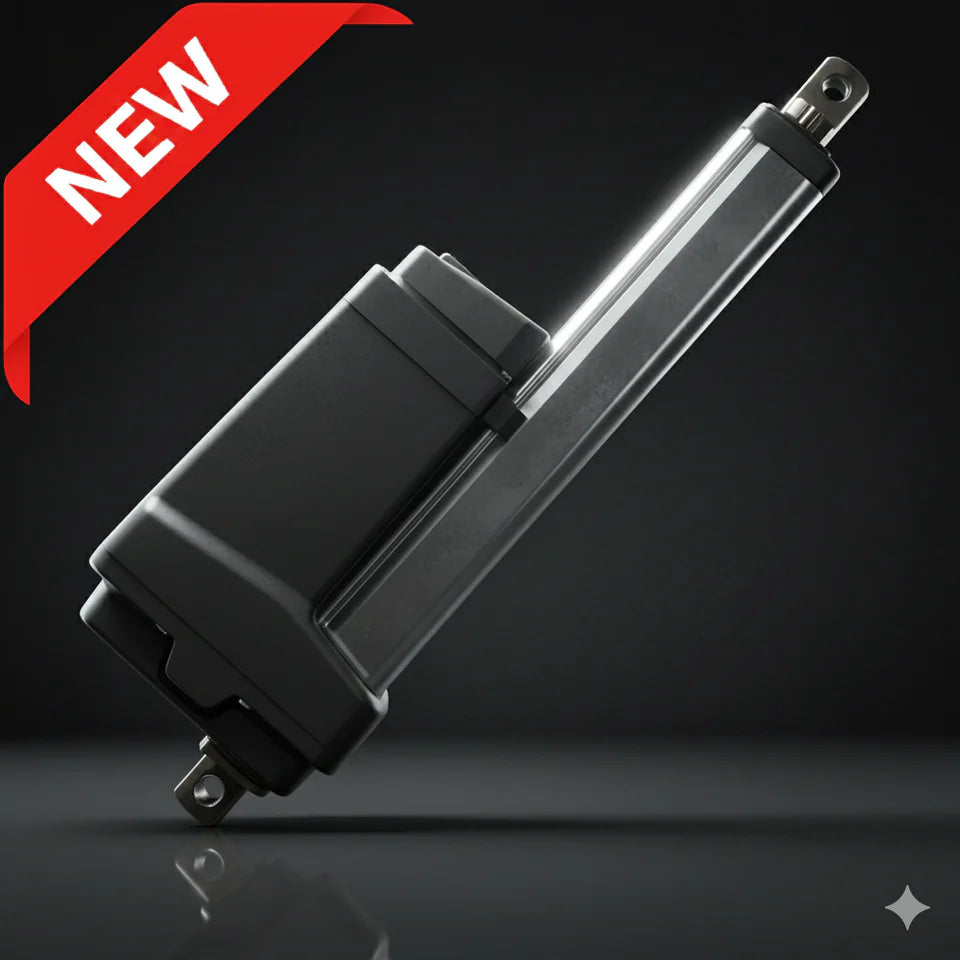

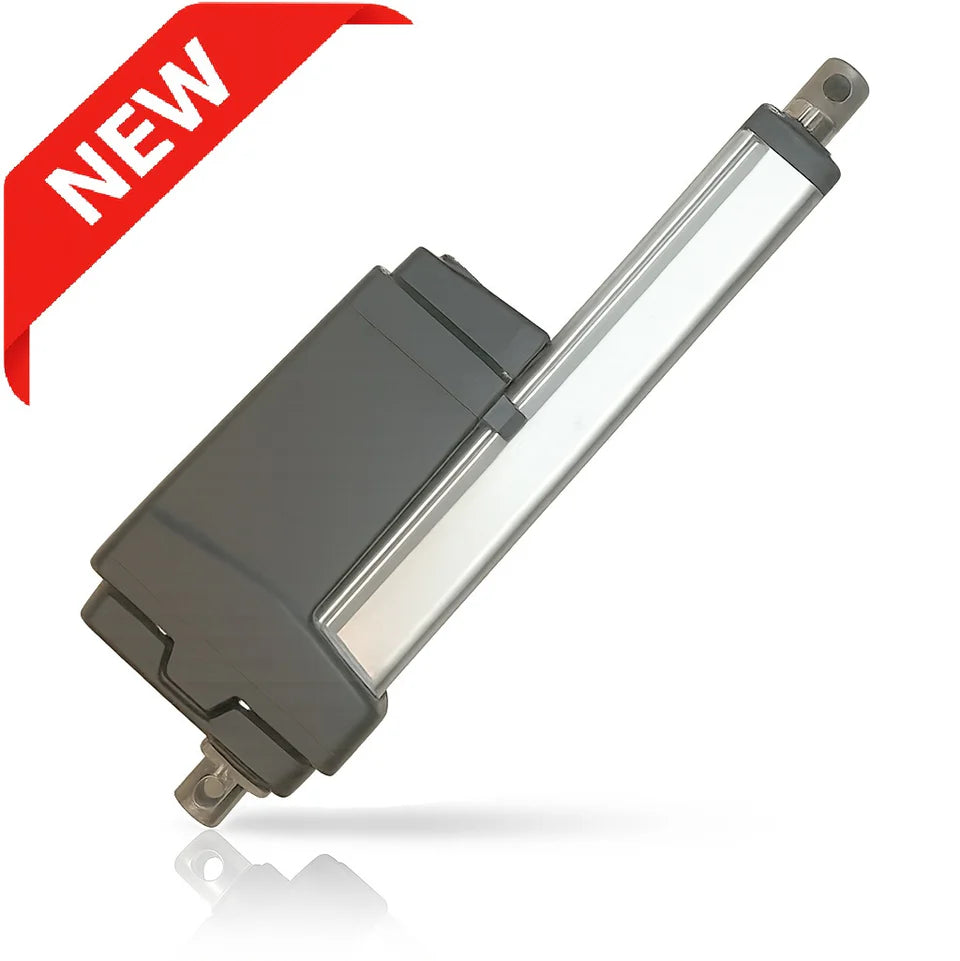

FIRGELLI Industrial Linear Actuator — 2,200 lbs Force
Download Brochure here
Built for the toughest environments, the Industrial Linear Actuator delivers up to 2,200 lbs (10,000 N) of force with IP66 environmental protection, integrated limit switches, and included Hall-sensor feedback for optional position monitoring. For basic operation, simply use the standard 2-wire hookup — the actuator will stop automatically at each end of travel thanks to the built-in limit switches. Hall feedback is available but not required.
✔️ Massive Force Output – (≈2,200 lbs)
Delivers extreme lifting and pushing capacity suitable for heavy-duty industrial machinery, automation systems, and harsh outdoor environments.
✔️ High-Precision Feedback
Hall-sensor built-in — ideal for applications requiring exact position control, 0.049mm per pulse
✔️ IP66 Protection
Dust-tight and resistant to powerful water jets. Perfect for outdoor, agricultural, factory-floor, mining, and construction environments.
✔️ Compact, Rugged Industrial Housing
Designed with a tight mechanical footprint while delivering extreme force — more output per size compared to typical industrial actuators.
✔️ Built-In Limit Switches
Internal end-of-stroke shutoff protects the motor and your equipment by stopping the actuator at safe travel limits automatically.
✔️High-Efficiency Ball-Screw Drive
Delivers smoother motion, higher speed, and increased mechanical efficiency compared to traditional lead-screw designs — ideal for industrial applications requiring precision, durability, and maximum performance.
✔️ Extensive Stroke Options (10" to 40" and custom stroke options available)
Length flexibility makes this actuator suitable for custom machinery, lifts, hatches, production automation, robotics, and more.
✔️ Available in 12V or 24V
Choose the ideal voltage for your system — from mobile 12V applications to fixed industrial installations. Our standard options are 12v and 24v
✔️ Wide Temperature Range Options
Works reliably from −40°C to +65°C, for extreme environments.
✔️ Durable Brushed DC Motor Drive
Simple, reliable, field-serviceable design suitable for industrial heavy-use cycles.
✔️ Electrical Overload Protection
Built-in protection prevents damage under abnormal loads or power conditions.
✔️ Compatible with FIRGELLI Brackets & Accessories
Use MB-18 brackets, control boards, remote kits, power supplies, and automation systems for complete plug-and-play integration.
✔️ Ideal for Harsh Industrial Environments
Engineered to perform in dust, moisture, vibration, and temperature extremes — without maintenance.
- 2,200 lbs Force
- 12V or 24V DC
- IP66 Rated
- Hall Sensor Included
- Built-in Limit Switches
- Duty Cycle 25%
Key Features
- Force: up to 2,200 lbs (10,000 N)
- Voltage options: 12V DC or 24V DC
- Stroke options: 10", 15", 20", 25", 30", 35", 40"
- Protection: IP66 (dust-tight and water-resistant; suitable for outdoor/industrial use)

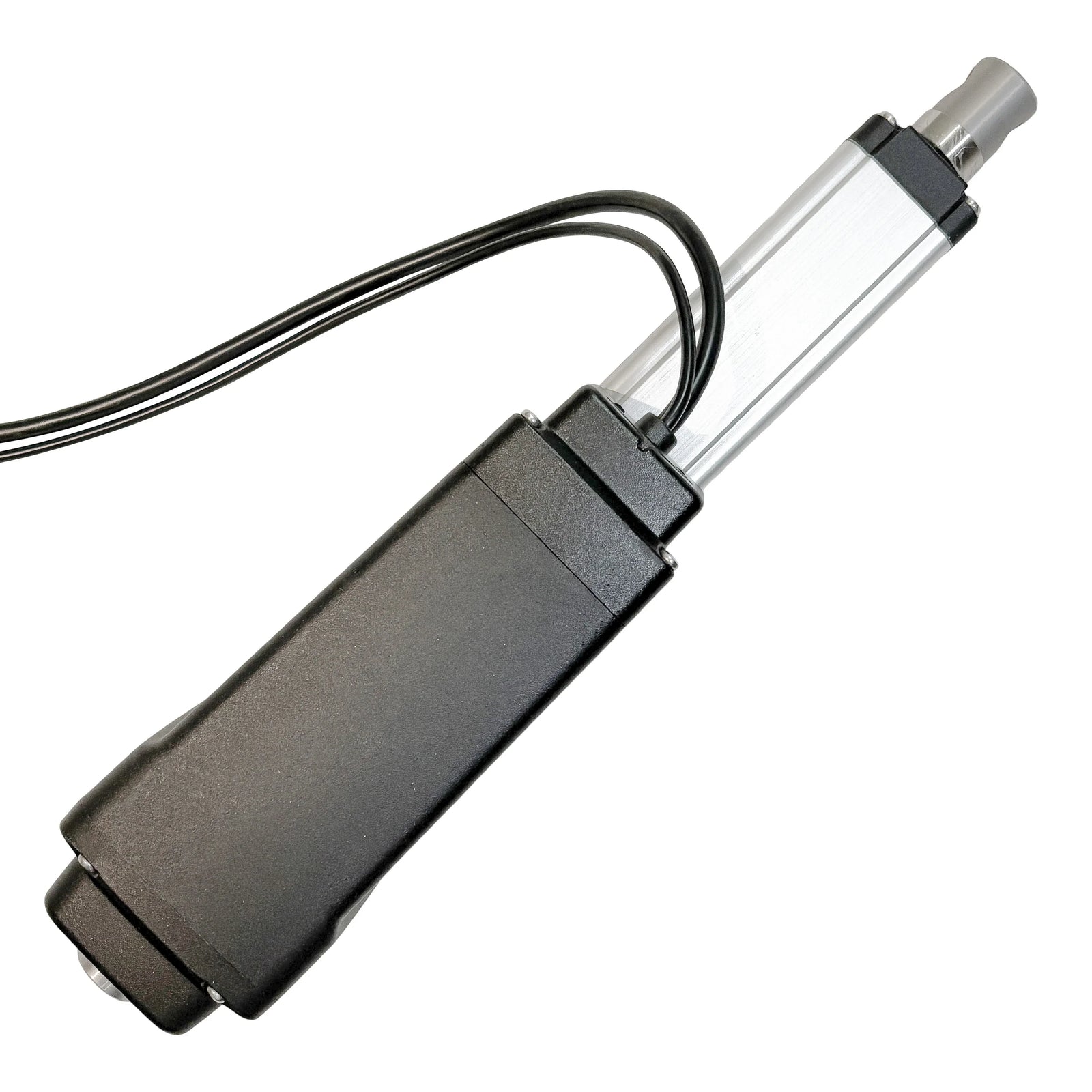

- Hall-sensor feedback included on every unit for optional position monitoring; not required for standard operation - See Wiring diagram in images
- Integrated limit switches (automatic stop at full extension/retraction)
- Operating temperature: −40 °C to +65 °C
- Noise level: ≤ 75 dB
- Motor: Brushed DC with electrical overload protection
- Typical loaded speed: ~7–10 mm/s (varies with load and stroke)

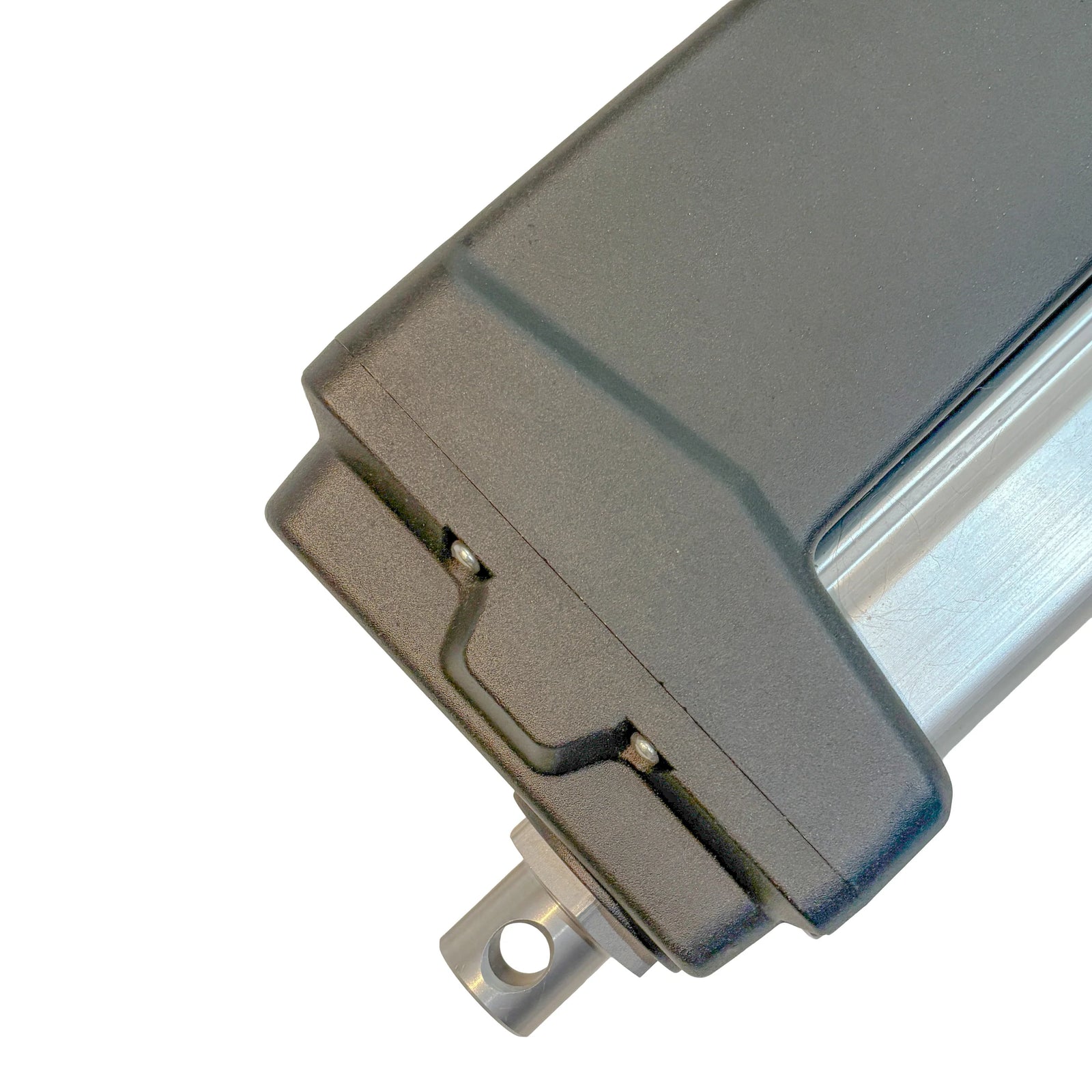

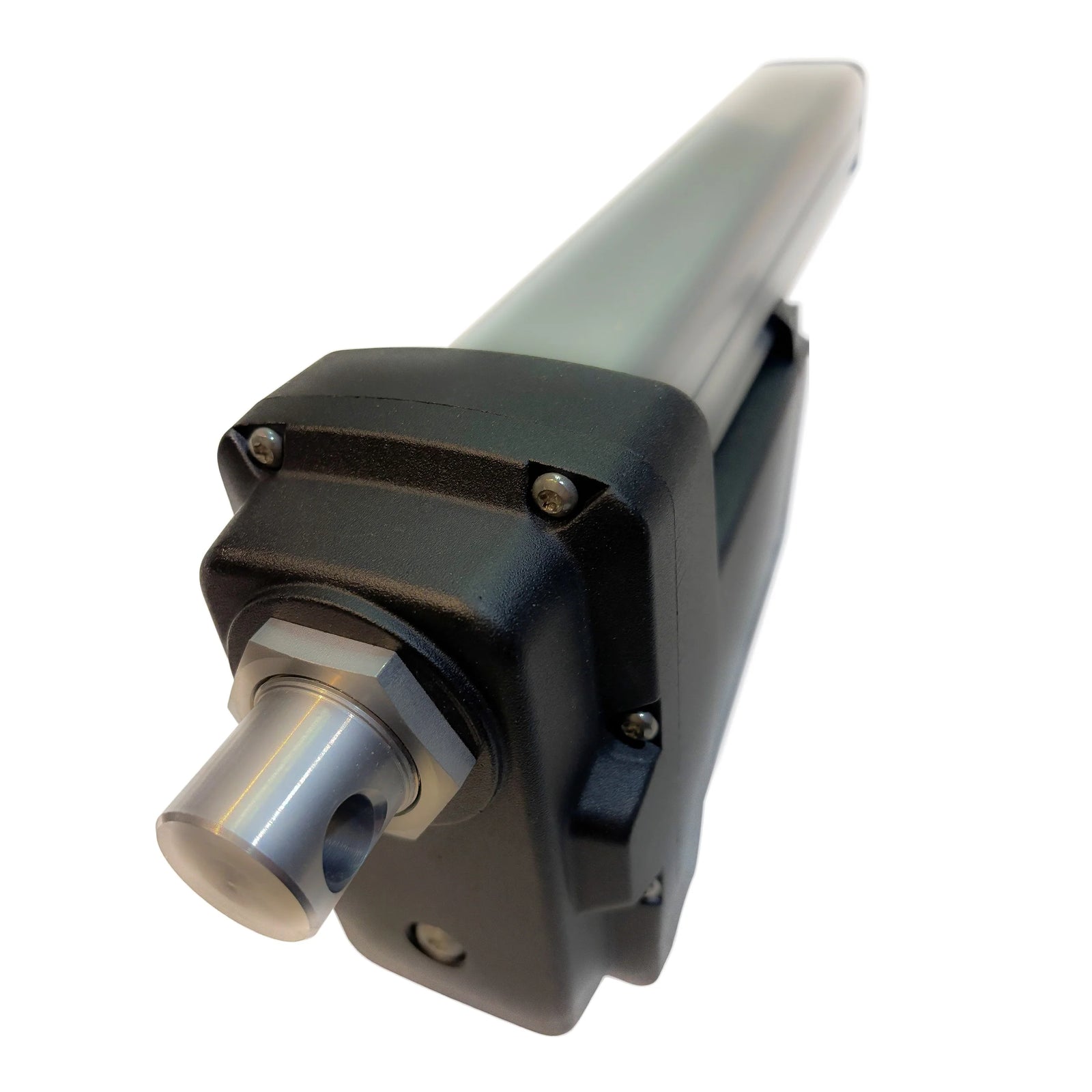

- Mounting - Both ends have 13mm dia holes, works with FIRGELLI MB18 Brackets
Technical Drawings
Technical Specifications
| Dynamic Load | 2,200 lbs (10,000 N) | ||||||||||
| Static Load | 3500 lbs (15,558 N) | ||||||||||
| Input Voltage | 12 VDC or 24 VDC | ||||||||||
| Gear Ratio | 40:1 | ||||||||||
| Duty Cycle | 25% (e.g., 2 minutes on / 8 minutes off) when used at high loads. Typical Duty Cycle by Load:
|
||||||||||
| Speed at no load | 13mm (0.5") per second +/- 10% | ||||||||||
| Speed at full load | 7.5mm (.29") per second +/- 10% | ||||||||||
| Current at no load | < 4 | ||||||||||
| Current at full load | < 20 | ||||||||||
| IP Rating | IP66 | ||||||||||
| End-of-Stroke Control | Built-in limit switches (non-adjustable) | ||||||||||
| Feedback | Hall-sensor feedback included on all units for optional position monitoring; standard 2-wire control works without feedback. | ||||||||||
| Signal Feedback | 0.061mm per pulse | ||||||||||
| Power Wires | Red: Positive, Black: Negative (15 AWG) See wiring drawing in images | ||||||||||
| Hall Sensor Wires | Red: Hall+ (5-15V) White: Ground, Green: Hall 1, Yellow: Hall 2 (24 AWG) See wiring drawing in images | ||||||||||
| Error Range | ±3mm | ||||||||||
| Operating Temperature | −40 °C to +65 °C | ||||||||||
| Noise | ≤ 75 dB | ||||||||||
| Clevis Hole Diameter | 0.51" | ||||||||||
| Wire Connector | Tinned bare wires | ||||||||||
| Cable Length | 1.5m | ||||||||||
| Bracket | MB18 |
Stroke & Mounting Dimensions
Retracted and extended lengths are measured from center-of-pin to center-of-pin.
| Stroke (in) | Stroke (mm) | Retracted Length | Extended Length |
|---|---|---|---|
| 10" | 254 | 18" (457 mm) | 28" (711 mm) |
| 15" | 375 | 25" (625 mm) | 40" (1016 mm) |
| 20" | 508 | 30" (762 mm) | 50" (1270 mm) |
| 25" | 635 | 37" (940 mm) | 62" (1575 mm) |
| 30" | 762 | 42" (1067 mm) | 72" (1829 mm) |
| 35" | 889 | 49" (1245 mm) | 84" (2134 mm) |
| 40" | 1016 | 54" (1372 mm) | 94" (2388 mm) |
Curves and charts
3D Models
12V Versions
Specifications are subject to change without notice. Actual speed varies with load, voltage, and environment.
