      N20 Gear DC Motor - 24 * 12 * 10mm / 3mm BARE Output Shaft

      Description:

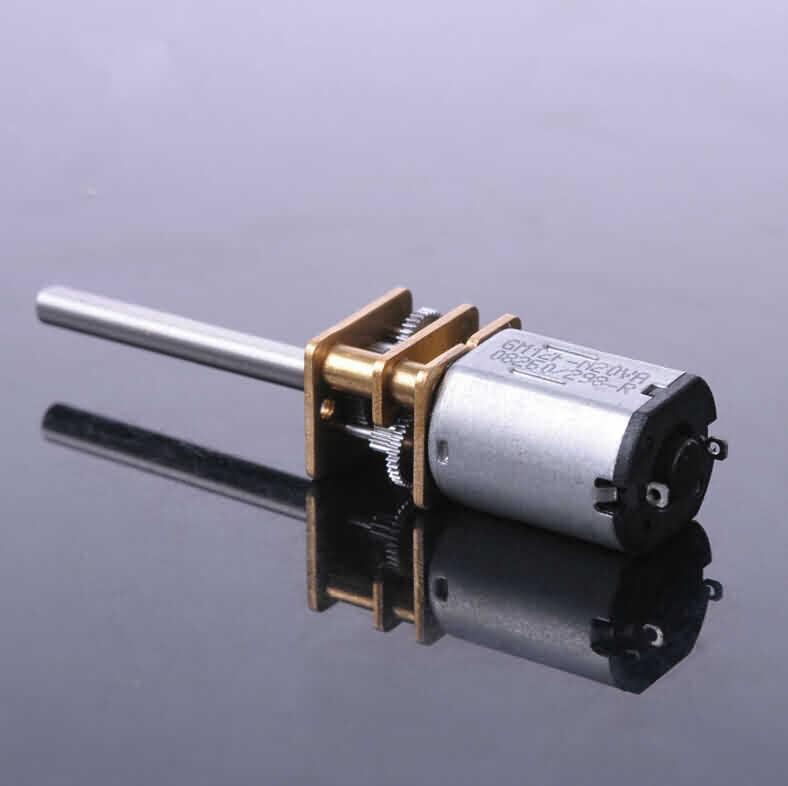

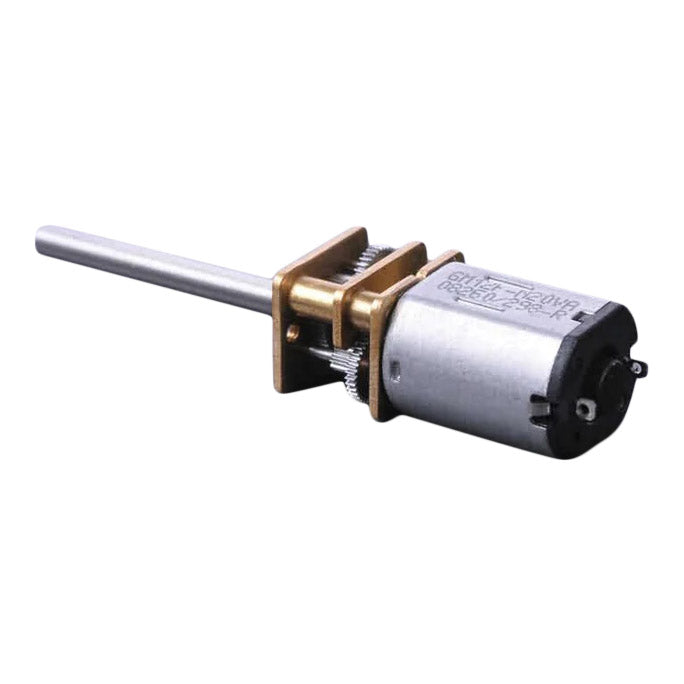

      The N20 gear DC motor is installed with an extra long 26mm BARE output shaft. It is very useful in educational and Robotic projects.

      Basic Specification:

      Gear ratio: 298:1

      Rated voltage: 12VDC

      No-load speed: 55rpm

      Rated speed: 42rpm

      Rated torque: 0.5kg.m

      Measurements:

      Motor Body: 24 * 12 * 10mm(excluding output shaft)

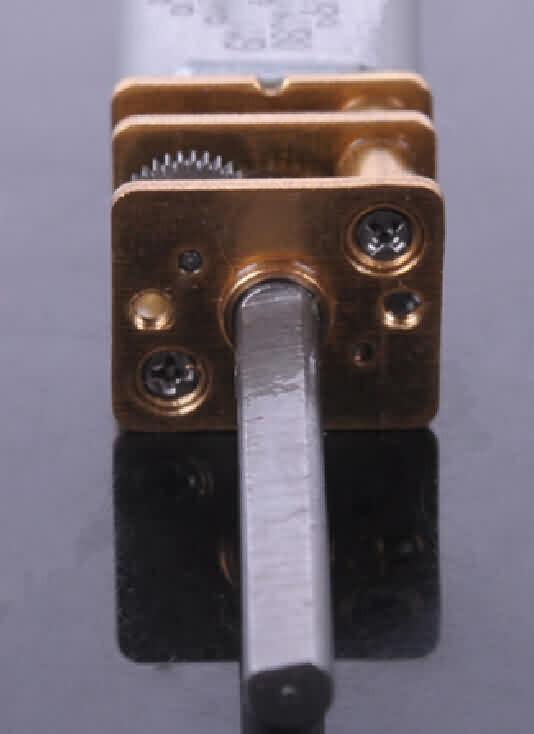

      Output shaft length: 26mm (D-shape)

      Output shaft diameter: 3mm
